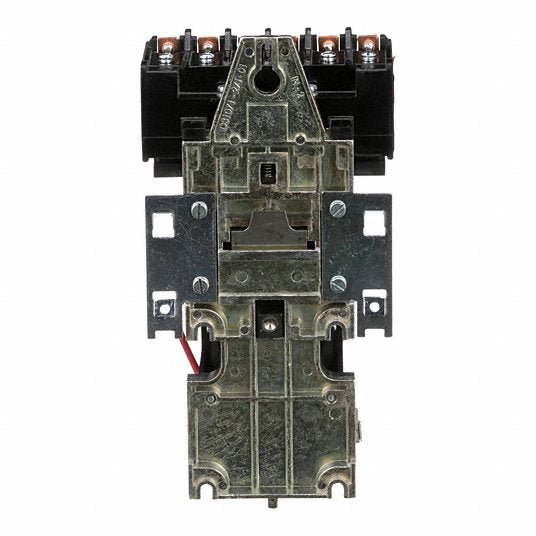

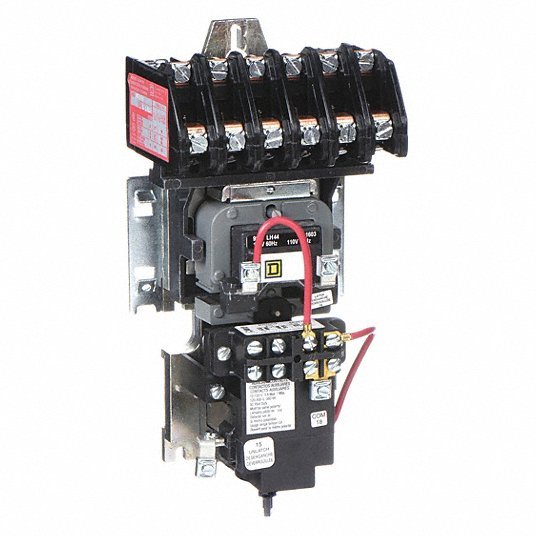

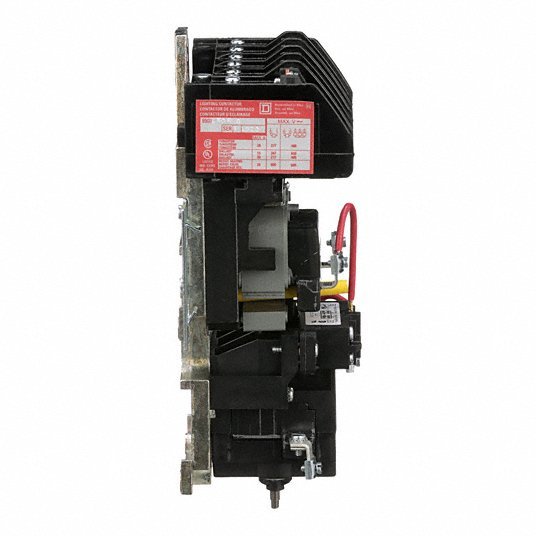

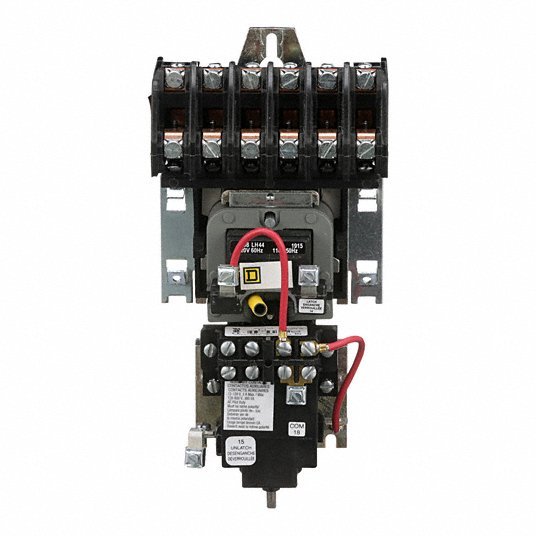

Square D 8903LXO60V02 120VAC Mechanically Held Lighting Contactor 6P 30A
UPC: 094701509436 | Harmonization (Schedule B): 8536.49.0065
SKU KV51532240
Original price
$1,315.91
-
Original price
$1,315.91
Original price
$1,315.91
$1,315.91
-
$1,315.91
Current price
$1,315.91
Lighting Magnetic Contactor, Number of Poles 6, Coil Volts 120V AC, 30 A Full Load Amps, Mechanically Held, Enclosure NEMA Rating No Enclosure, Height 8.81 in, Width 4.25 in, Depth 3.25 in, Hz 50/60, Standards CSA, UL. 5B145,SQD8903LXO60V02,
| Item | Mechanically Held Lighting Contactor |
| Full Load Amps | 30 A |
| Contactor Type | Mechanically Held |
| Number of Poles | 6 |
| Coil Volts | 120V AC |
| Hz | 50/60 |
| Enclosure NEMA Rating | No Enclosure |
| Standards | CSA, UL |
| Control Circuit | Separate control circuit |
| Inrush VA | 140-140 VA 60 Hz; 150-150 VA 50 Hz; 25-25 VA 50/60 Hz |
| Current Rating | 20-20 A tungsten; 30-30 A fluorescent |
| Indicator | No |
| Control Type | No control units |
| Features | Halogen free plastic parts product; Mercury Free; PVC Free; Green Premium product; Toxic Heavy Metal Free |
| Electrical Connections | Screw-clamp terminals |
| Package Quantity | 1 |
