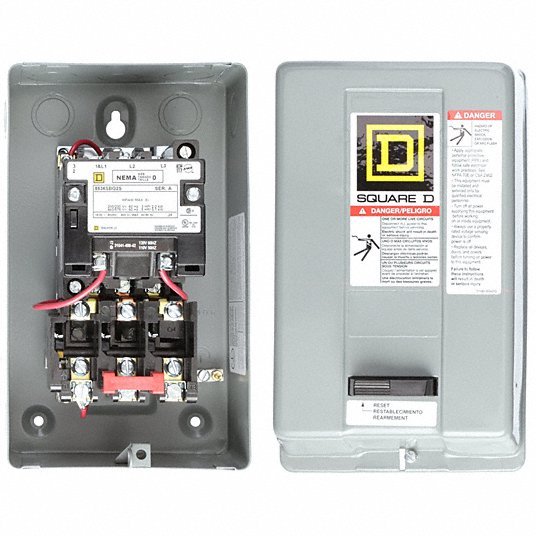

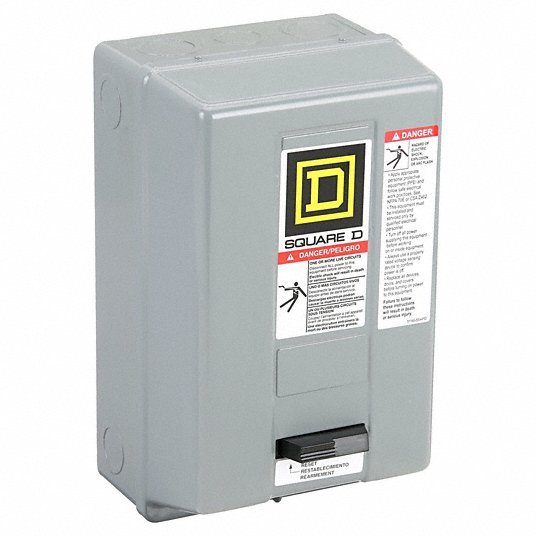

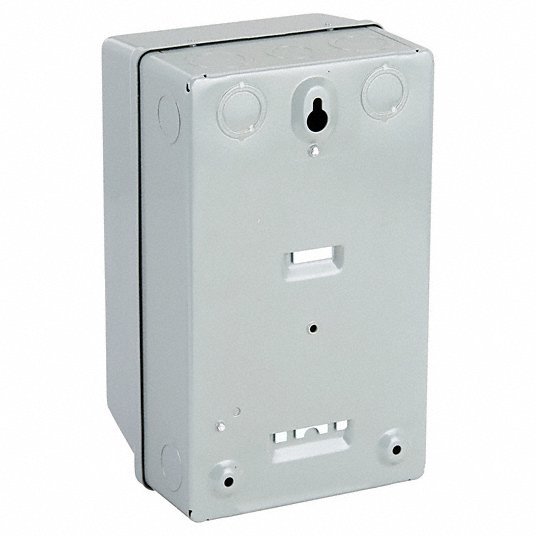

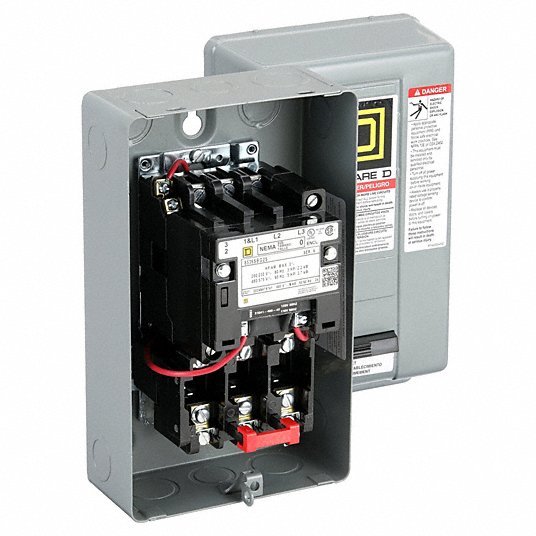

Square D 8536SBG2V02S Nonreversing Magnetic Motor Starter, 1 NEMA Rating, 120V AC, 3 Poles, No Auxiliary Contacts
UPC: 785901864608 | Harmonization (Schedule B): 8536.50.4000
SKU KV1H483
Original price
$727.95
-
Original price
$727.95
Original price
$727.95
$727.95
-
$727.95
Current price
$727.95
Magnetic Motor Starter, NEMA Size 0, Amps AC 18 A, Coil Volts 120V AC, Enclosure NEMA Rating 1, HP @ 3 Phase - 240V 3 hp, HP @ 3 Phase - 480V 5 hp, Action Nonreversing, Number of Poles 3, HP @ 3 Phase - 208V 3 hp, HP @ 3 Phase - 575V 5 hp, Height 10 in, Width 6 in, Depth 5.56 in, Standards UL Listed/CSA Certified. Grainger # 1H483, MSC # 69524676, Rexel # 54064
| Item | Magnetic Motor Starter |
| Coil Volts | 120V AC |
| Enclosure NEMA Rating | 1 |
| Auxiliary Contact Form | No Auxiliary Contacts |
| HP @ 3 Phase - 240V | 3 hp |
| Starter Type | NEMA |
| Action | Nonreversing |
| Amps AC | 18 A |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 5 hp |
| HP @ 3 Phase - 208V | 3 hp |
| HP @ 3 Phase - 575V | 5 hp |
| Thermal Unit Code | C2 |
| Standards | UL Listed/CSA Certified |
| Hz | 50/60 |
| Accessory Group | C2 |
| Enclosure Type | Painted Steel Sheet |
| Features | Pvc Free |
| Product Type | Magnetic Motor Starter |
| Operating Voltage | 600V AC |
| Package Quantity | 1 |
