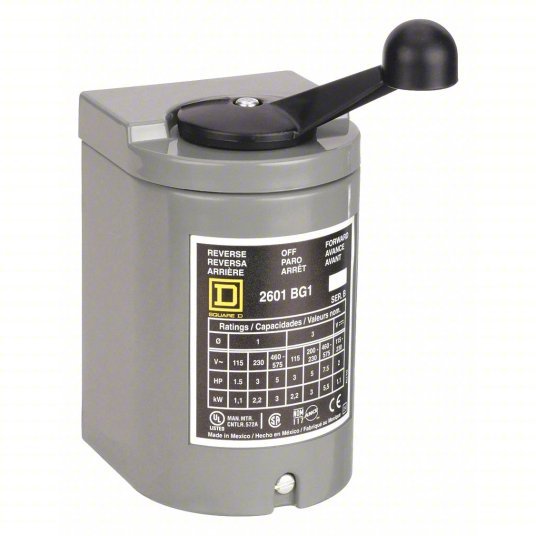

Square D 2601BG1 Drum Switch 3 Poles, Maintained/Momentary Action, NEMA-Rated 1, Plastic, Screw Clamp - KVM Tools Inc.KV2BW46

Square D 2601BG1 Drum Switch 3 Poles, Maintained/Momentary Action, NEMA-Rated 1, Plastic, Screw Clamp

UPC: 785901555438 | Harmonization / Schedule B : 8536.50.4000

Country of Origin: Mexico | Shipping Weight: 2.3 lbs

$754.66 - $754.66
$754.66
$754.66 - $754.66
$754.66
Drum Switch, Switch Action Maintained, Momentary, Phase Single, Reversing Capability Reversing, Horsepower @ Three Phase - 240V AC 5 hp, Horsepower @ Three Phase - 480V AC 7 1/2 hp, Maximum Voltage Rating 250V DC, 600V AC, Terminal Connection Type Screw Clamp Terminals, Horsepower @ Single Phase - 120V AC 1 1/2 hp, NEMA Enclosure Rating 1, Number of Poles 3, Horsepower @ Single Phase - 240V AC 3 hp, Standards CSA Cetrified, UL Listed, Overall Width 2.68 in, Overall Depth 4.61 in
Type B
NEMA Rating 1
Handle Material Plastic
HP @ 1 Phase - 240V 3 hp
Item Drum Switch
Number of Poles 3
HP @ 1 Phase - 115V 1 1/2 hp
HP @ 3 Phase - 460V 7 1/2 hp
HP @ 115VDC 2 hp
HP @ 3 Phase - 240V 5 hp
HP @ 230VDC 2 hp
Action Maintained/Momentary Reversing
Standards CSA Cetrified, UL Listed
HP @ 3 Phase - 460-575V 7 1/2 hp
NEMA Enclosure Rating 1
Terminal Connection Type Screw Clamp Terminals
Switch Action Maintained, Momentary
Horsepower @ Three Phase - 480V AC 7 1/2 hp
Horsepower @ 230V DC 2 hp
Phase Single
Maximum Voltage Rating 250V DC, 600V AC
Horsepower @ Single Phase - 120V AC 1 1/2 hp
Reversing Capability Reversing
Horsepower @ Three Phase - 240V AC 5 hp
Horsepower @ 115V DC 2 hp
Horsepower @ Single Phase - 240V AC 3 hp
Horsepower 1.5 hp 115 V AC, 1 phase; 3 hp 230 V AC, 1 phase; 5 hp 460 V AC, 1 phase; 5 hp 575 V AC, 1 phase; 5 hp 200 V AC, 3 phase; 5 hp 230 V AC, 3 phase; 7.5 hp 460 V AC, 3 phase; 7.5 hp 575 V AC, 3 phase; 2 hp 115 V DC; 2 hp 230 V DC
Electrical Connection Screw-clamp terminals
Certifications UL Listed; CSA
Enclosure Rating NEMA 1
Maximum Rated Voltage 600 V AC; 250 V DC
