Square D 2510MBG2 Manual Motor Starter Non-Reversing, 3 Poles, 18 A, NEMA Size M-0, Thermal Protection, SQR1 - KVM Tools Inc.KV1H412

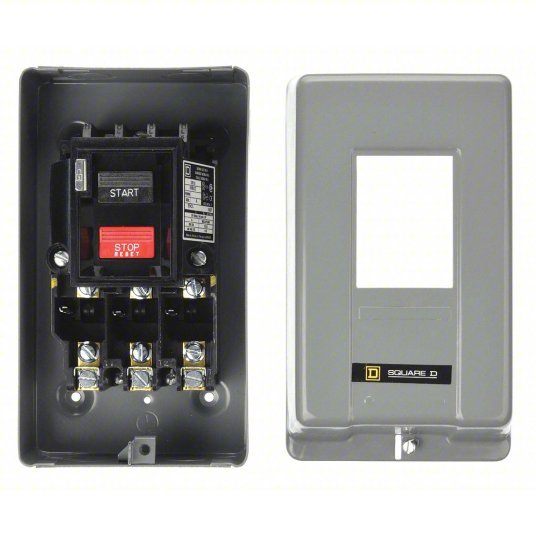

Square D 2510MBG2 Manual Motor Starter Non-Reversing, 3 Poles, 18 A, NEMA Size M-0, Thermal Protection, SQR1

UPC: 785901792536 | Harmonization / Schedule B : 8536.50.4000

Country of Origin: | Shipping Weight:

$419.10 - $419.10
$419.10
$419.10 - $419.10
$419.10
Manual Motor Starter, NEMA Size M-0, Maximum Voltage Rating 600V AC, Number of Poles 3, Operator Push Button, Phase Three, Current AC 18 A, Horsepower @ Three Phase - 240V AC 5 hp, Horsepower @ Three Phase - 480V AC 5 hp, Series Class 2510 M Series, Horsepower @ Three Phase - 600V AC 5 hp, Maximum Overload Relay Current Setting Not Applicable, Minimum Overload Relay Current Setting Not Applicable, Mounting Style Surface, NEMA Enclosure Rating 1, Number of Required Thermals 3
Operator Push Button
Enclosure NEMA Rating 1
Number of Required Thermals 3
Amps AC 18 A
Item Manual Motor Starter
Number of Poles 3
HP @ 3 Phase - 480V 5 hp
Max. Voltage 600V AC
HP @ 3 Phase - 240V 3 hp
Pilot Light No
HP @ 3 Phase - 460-575V 5 hp
HP @ 3 Phase - 575V 5 hp
Description/Special Features Reliable Overload Protection
Standards CSA LR60905, E42243 CCN NLRV, UL Listed
Thermal Unit Code M2
Phase Loss Sensitivity No
Product Or Component Type Manual Starter
Nema Degree Of Protection NEMA 1 painted sheet steel
Thermal Overload Type melting alloy
Awg Gauge AWG 14...AWG 8 copper
Product Certifications CSA LR60905 class 3211 05 || UL listed file E42243 CCN NLRV
[Ue] Rated Operational Voltage 600 V AC
Electrical Connection pressure wire clamp
Maximum Horse Power Rating 3-3 hp 200...230 V AC, 3 phase || 5-5 hp 380...575 V AC, 3 phase
Auxiliary Contact Composition without
Number Of Thermal Units Required 3
Control Type push-button
Local Signalling no indicator
Motor Starter Type non reversing
Poles Description 3P
Includes Pilot Light No
Series Class 2510 M Series
Maximum Voltage Rating 600V AC
Terminal Connection Type Screw Clamp Terminals
Starter Style NEMA
Horsepower @ Three Phase - 480V AC 5 hp
NEMA Enclosure Rating 1
Minimum Overload Relay Current Setting Not Applicable
Overload Protection Type Thermal
Horsepower @ Three Phase - 240V AC 5 hp
Current AC 18 A
IP Rating Not Applicable
Status Indicator No Indicator
Phase Three
Mounting Style Surface
Horsepower @ Three Phase - 600V AC 5 hp
