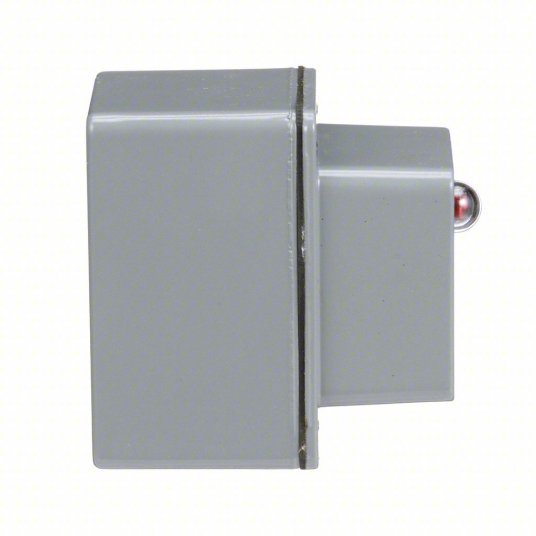

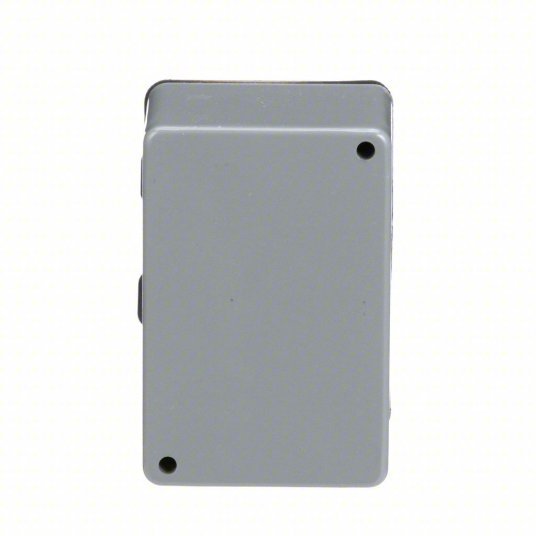

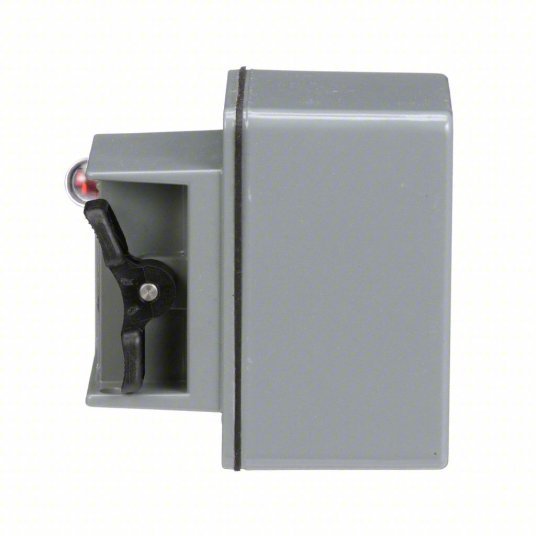

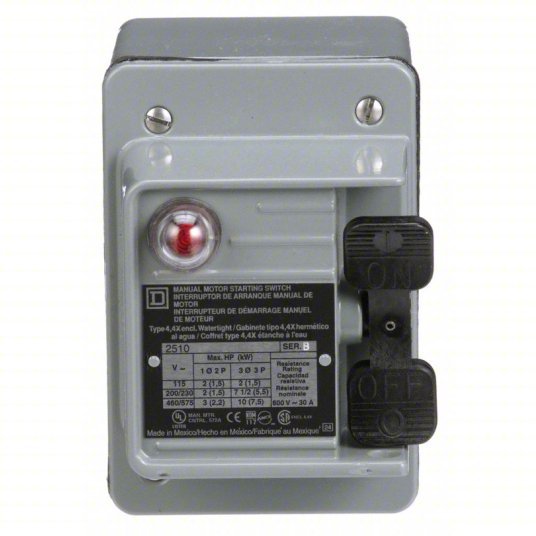

Square D 2510KW1A Manual Motor Switch 2 Poles, 30 A, 4 NEMA Rating, Pilot Light: Red Light (115V AC)

UPC: 785901077749 | Harmonization / Schedule B : 8536.50.4000

Country of Origin: Mexico | Shipping Weight: 2.9 lbs

$625.84 - $625.84
$625.84
$625.84 - $625.84
$625.84
Manual Motor Switch, Current AC 30 A, Hazardous Location Specification Not Applicable, Horsepower @ Single Phase - 120V AC 2 hp, Horsepower @ Single Phase - 240V AC 2 hp, Horsepower @ Three Phase - 240V AC 2 hp, Horsepower @ Three Phase - 480V AC 3 hp, Horsepower @ Three Phase - 600V AC 3 hp, Includes Pilot Light Yes, Number of Poles 2, Operator Toggle Switch, Phase Single, Starter Style NEMA, Terminal Connection Type Screw Terminals, Hub Diameter 0.75 in, Hub Type Dead End
Operator Toggle Switch
Type K
Enclosure NEMA Rating 4
Amps AC 30 A
Item Manual Motor Switch
Starter Type NEMA Style
Number of Poles 2
HP @ 3 Phase - 480V 3 hp
Max. Voltage 600 V AC
HP @ 115VDC 2 hp
HP @ 3 Phase - 240V 2 hp
HP @ 1 Phase - 120V 2 hp
Pilot Light Yes
Description/Special Features Pilot Light
HP @ 1 Phase - 230V 2 hp
HP @ 230VDC 1 1/2 hp
HP @ 3 Phase - 460-575V 3 hp
Phase Loss Sensitivity No
Standards CSA LR25490 Class 3211 05, UL Listed E42243 CCN NLRV
HP @ 3 Phase - 575V 3 hp
Cable Entry 0.75 NPT (bottom)
Control Type toggle
Phase Single
Electrical Connection screw clamp terminals
Product Certifications UL listed file E42243 CCN NLRV || CSA LR25490 class 3211 05
Awg Gauge AWG 14 to AWG 10 copper
Local Signalling red indicator, 115 V
Line Rated Current 30 A
Maximum Horse Power Rating 2 hp 115 V AC || 2 hp 230 V AC || 3 hp 460 V AC || 3 hp 575 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC
Poles Description 2P
Product Or Component Type Single Unit Manual Switch
[Ue] Rated Operational Voltage 600 V AC || 230 V DC
Nema Degree Of Protection NEMA 4 die cast zinc alloy standard size
Motor Starter Type non reversing
Horsepower @ Three Phase - 240V AC 2 hp
Series Type K, Class 2510
Horsepower @ 230V DC 1 1/2 hp
Horsepower @ Three Phase - 600V AC 3 hp
Terminal Connection Type Screw Terminals
Horsepower @ Three Phase - 480V AC 3 hp
Horsepower @ Single Phase - 120V AC 2 hp
NEMA Enclosure Rating 4
Maximum Voltage Rating 230V DC, 600V AC
Hazardous Location Specification Not Applicable
Mounting Style Surface
Horsepower @ Single Phase - 240V AC 2 hp
Starter Style NEMA
Includes Pilot Light Yes
Current AC 30 A
Hub Type Dead End
Horsepower @ 115V DC 2 hp
Horsepower Rating 2 hp 115 V AC; 2 hp 230 V AC; 3 hp 460 V AC; 3 hp 575 V AC; 1 hp 90 V DC; 2 hp 115 V DC; 1.5 hp 230 V DC
Certifications UL listed file E42243 CCN NLRV; CSA LR25490 class 3211 05
Number Of Phases 1 phase
