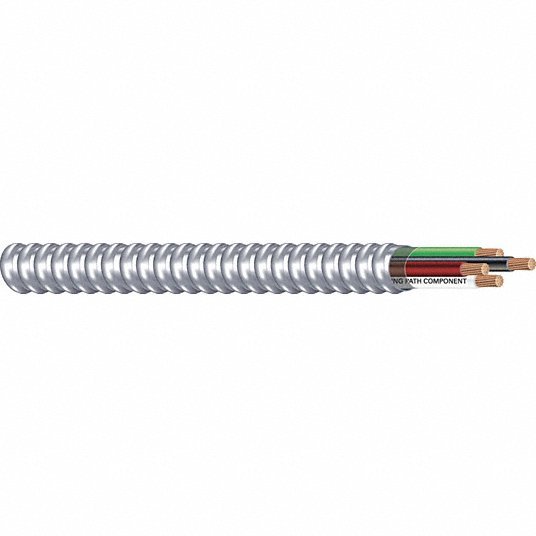

Southwire 69115401 12 AWG 3 Conductor Stranded Metal Clad 600V 250 ft. SLVR
UPC: 032886347658 | Harmonization (Schedule B): 8544.49.3080
SKU KV20KZ60
Original price
$562.99
-
Original price
$562.99
Original price
$562.99
$562.99
-
$562.99
Current price
$562.99
Metal Clad Armored Cable, Trade Designation MC, Wire Size 12 AWG, Number of Conductors 3 with Insulated CU Ground, Wire Color Black/Green/Red/White, Jacket Color Silver, Length 250 ft, Conductor Design Stranded, Jacket Material Aluminum, Insulation Material Nylon, PVC, Nominal Outside Dia. 0.527 in, Packaging Coil, Voltage 600 V, Temp. Rating -14 Degrees to 90 Degrees C Dry
| Number of Conductors | 3 with Ground |
| Jacket Color | Silver |
| Jacket Material | Aluminum |
| Item | Metal Clad Armored Cable |
| Max. Amps | 20 |
| Stranded / Solid | Stranded |
| Temp. Rating | -14 Degrees to 90 Degrees C Dry |
| Cable Type (Wire and Cable) | MC |
| Application | Indoor |
| Jacket Material (Wire and Cable) | Aluminum |
| Voltage | 600 V |
| Wire Color | Black/Green/Red/White |
| Cable Type - Wire and Cable | MC |
| Standards | UL 83, 1569, 1685, NEC Article 330, Federal Specification A-A59544 (Formerly J-C-30B), FT4/IEEE 1202, Vertical Cable Tray Flame Test, Listed for Use In UL 1, 2 and 3 Hour Through Penetration Firestop Systems |
| Jacket Material - Wire and Cable | Aluminum |
| Wire and Cable Item | Metal Clad Armored Cable |
| Trade Designation | MC |
| Conductor Design | Stranded |
| Packaging | Coil |
| Insulation Material | Nylon, PVC |
| Product Type | Metal Clad Armored Cable |
| No. of Strands | 19 |
| Nom. Od (Mils) | 542mils |
| Applications | ApplicationSouthwire Armorlite® Type MC Cable is suitable for use as follows:Branch, feeder and service power distribution in commercial, industrial, institutional, and multiresidential buildings.Fished or embedded in plaster.Concealed or exposed installationsEnvironmental air-handling spaces per NEC 300.22 (C).Places of Assembly per NEC 518.4 and theaters per NEC 520.5.Installation in cable tray and approved raceways.Under raised floors for information technology equipment conductors and cables per NEC 645.5(D) & 645.5(D)(2).Class I Div. 2, Class II Div 2, & Class III Div. 1 Hazardous Locations. |
| No. of Conductors | 3 |
| Construction | ConstructionSouthwire Armorlite® Type MC Cable is constructed with soft-drawn copper, Type THHN/THWN conductors rated 90°C dry available in sizes 14 AWG through 2 AWG, and a green insulated grounding conductor. The conductors are cabled together and a binder tape bearing the print legend is wrapped around the assembly. Aluminum interlocking armor is applied over the assembly. |
| Insulation Thickness (Mils) | 15mils |
| Package Quantity | 1 |
