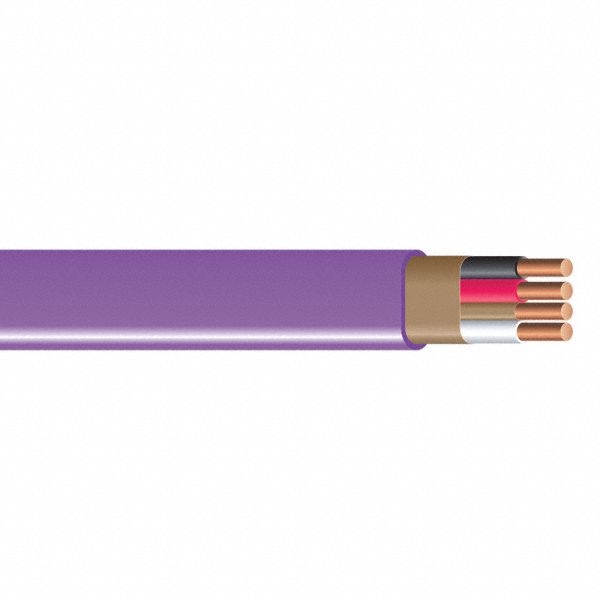

Southwire 63947828 Nonmetallic Building Cable, 12 AWG, 3 Conductors, 100 ft, Purple, 600 V Volt

Southwire 63947828 Nonmetallic Building Cable, 12 AWG, 3 Conductors, 100 ft, Purple, 600 V Volt

UPC: 032886188961 | Harmonization / Schedule B : 8544.49.2000

Country of Origin: United States | Shipping Weight: 11.51 lbs

$233.01 - $233.01
$233.01
$233.01 - $233.01
$233.01

Nonmetallic Building Cable, Number of Conductors 3, Wire Size 12 AWG, Trade Designation NM-B, Jacket Material PVC, Jacket Color Purple, Length 100 ft, Conductor Design Solid, Voltage 600 V, Wire Color Purple, Nominal Outside Dia. 0.347 in, Temp. Rating 194 Degrees F, Standards Federal Specification A-A-59544, National Electrical Code (NEC), UL 83, UL 719, Packaging Coil, Insulation Material PVC

Trade Designation NM-B
Conductor Material Copper
Number of Conductors 3C with Ground
Wire Color Purple
Jacket Color Purple
Jacket Material PVC
Conductor Design Solid
Insulation Material PVC
Voltage 600V AC
Temp. Rating 194°F
Standards UL 83, UL standard 719. Federal Specification A-A-59544 and requirements of National Electrical Code
Packaging Coil
Number of Neutrals 0
Number of Strands 1
Temperature Rating - Maximum Dry 194 Degrees F
Grounding Conductor Material Copper
Grounding Conductor Insulation Color Bare
Series Romex(R) Brand SIMpull(R)
Number of Ground Conductors 1
Grounding Conductor Insulation Material Uninsulated
Conductor Insulation Color Black, Red, White
Conductor Insulation Material PVC
Country of Origin United States
