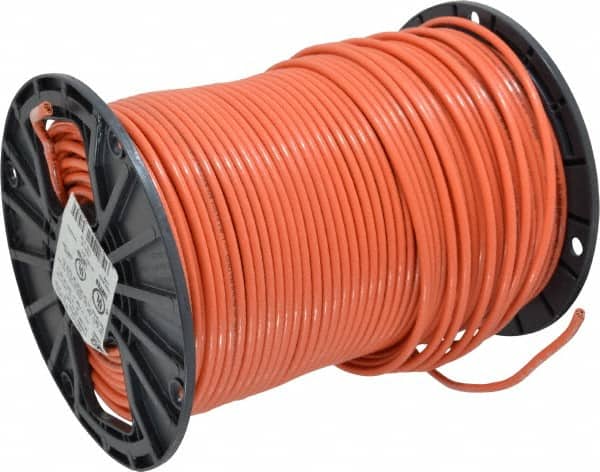

Southwire 22979901 Building Wire, THHN, 10 AWG, 500 ft, Orange, Nylon Jacket, PVC Insulation
UPC: 032886230455 | Harmonization (Schedule B): 8544.49.3080
Original price
$247.99
-
Original price
$247.99
Original price
$247.99
$247.99
-
$247.99
Current price
$247.99
| /
Building Wire, Trade Designation THHN, Wire Size 10 AWG, Wire Color Orange, Length 500 ft, Conductor Design Stranded, Number of Conductors 1, Jacket Material Nylon, Insulation Material PVC, Nominal Outside Dia. 0.16 in, Packaging Spool, Jacket Color Orange, Voltage 600V AC, Stranding 19
| Item |
Building Wire |
| Trade Designation |
THHN |
| Voltage |
600V AC |
| Jacket Color |
Orange |
| Insulation Material |
PVC |
| Temp. Rating |
194 Degrees F |
| Jacket Material |
Nylon |
| Wire Color |
Orange |
| Number of Conductors |
1 |
| Conductor Design |
Stranded |
| Wire Type |
THHN |
| Wire and Cable Item |
Building Wire |
| Packaging |
Plastic Spool |
| Insulation Material - Wire and Cable |
PVC |
| Jacket Material - Wire and Cable |
Nylon |
| Stranding |
19 |
| Stranded / Solid |
Stranded |
| Insulation Material (Wire and Cable) |
PVC |
| Wire Type - Wire and Cable |
THHN |
| Standards |
UL,E34382 |
| Max. Amps |
30 |
| Application |
Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C) |
| Product Type |
Building Wire |
| Allowable Ampacity At 60C |
30 |
| No. of Strands |
19 |
| Allowable Ampacity At 75C |
30 |
| Jacket Thickness (Mils) |
5mils |
| Construction |
ConstructionSouthwire® THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket. Marked as THWN. |
| Nom. Od (Mils) |
165mils |
| Insulation Thickness (Mils) |
20mils |
| Allowable Ampacity At 90C |
30 |
| Applications |
ApplicationTHHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil |
| No. of Conductors |
1 |
| Package Quantity |
1 |
