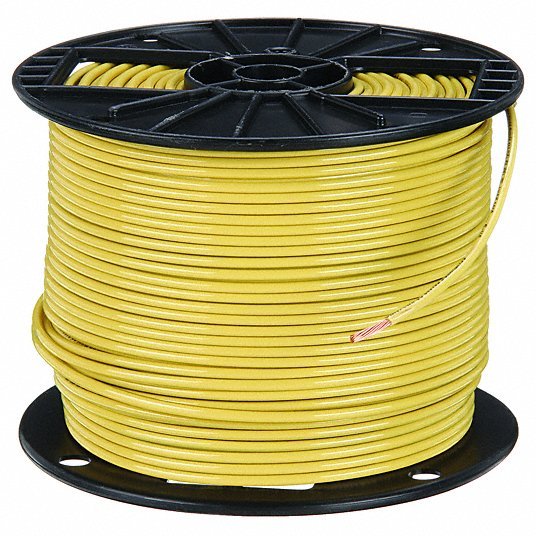

Southwire 22978101 Building Wire, THHN, 10 AWG, 500 ft, Yellow, Nylon Jacket, PVC Insulation - KVM Tools Inc.KV4W010

Southwire 22978101 Building Wire, THHN, 10 AWG, 500 ft, Yellow, Nylon Jacket, PVC Insulation

UPC: 032886230356 | Harmonization / Schedule B : 8544.49.3080

Country of Origin: | Shipping Weight:

$247.99 - $247.99
$247.99
$247.99 - $247.99
$247.99

Building Wire, Trade Designation THHN, Wire Size 10 AWG, Wire Color Yellow, Length 500 ft, Conductor Design Stranded, Number of Conductors 1, Jacket Material Nylon, Insulation Material PVC, Nominal Outside Dia. 0.16 in, Packaging Spool, Jacket Color Yellow, Voltage 600V AC, Stranding 19

Item Building Wire
Trade Designation THHN
Voltage 600V AC
Jacket Color Yellow
Insulation Material PVC
Temp. Rating 194 Degrees F
Jacket Material Nylon
Wire Color Yellow
Number of Conductors 1
Conductor Design Stranded
Wire and Cable Item Building Wire
Packaging Plastic Spool
Stranding 19
Standards UL,E34382
Insulation Material - Wire and Cable PVC
Wire Type THHN
Max. Amps 30
Insulation Material (Wire and Cable) PVC
Wire Type - Wire and Cable THHN
Jacket Material - Wire and Cable Nylon
Stranded / Solid Stranded
Application Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C)
Product Type Building Wire
Allowable Ampacity At 60C 30
Allowable Ampacity At 90C 30
Nom. Od (Mils) 165mils
No. of Conductors 1
Jacket Thickness (Mils) 5mils

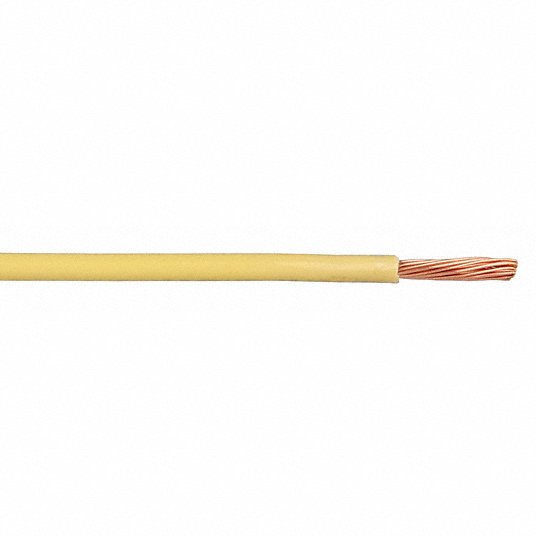

Construction ConstructionSouthwire® THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket. Marked as THWN.
No. of Strands 19
Allowable Ampacity At 75C 30
Applications ApplicationTHHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil
Insulation Thickness (Mils) 20mils
Package Quantity 1
