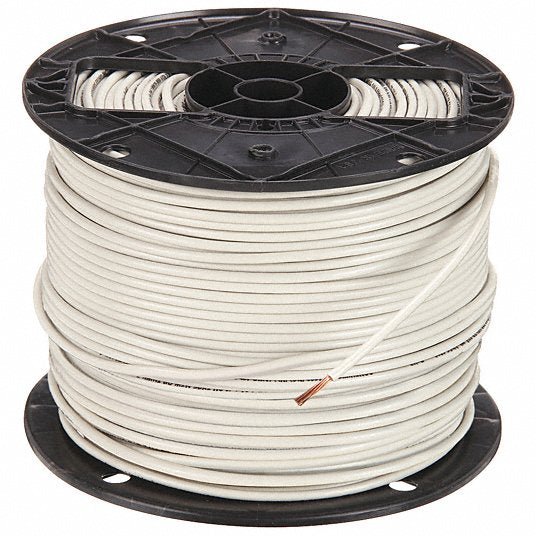

Southwire 22974001 Building Wire, THHN, 10 AWG, 500 ft, White, Nylon Jacket, PVC Insulation

UPC: 726541429215 | Harmonization / Schedule B : 8544.49.3080

Country of Origin: United States | Shipping Weight: 18.95 lbs

$347.71 - $347.71
$347.71
$347.71 - $347.71
$347.71

Building Wire, Trade Designation THHN, Wire Size 10 AWG, Wire Color White, Length 500 ft, Conductor Design Stranded, Number of Conductors 1, Jacket Material Nylon, Insulation Material PVC, Nominal Outside Dia. 0.16 in, Packaging Spool, Jacket Color White, Voltage 600V AC, Stranding 19

Details

Item Building Wire
Trade Designation THHN
Voltage 600V AC
Jacket Color White
Insulation Material PVC
Temp. Rating 194 Degrees F
Jacket Material Nylon
Wire Color White
Number of Conductors 1
Conductor Design Stranded
Max. Amps 30
Wire Type - Wire and Cable THHN
Stranded / Solid Stranded
Wire Type THHN
Stranding 19
Wire and Cable Item Building Wire
Standards UL,E34382
Packaging Plastic Spool
Insulation Material (Wire and Cable) PVC
Insulation Material - Wire and Cable PVC
Jacket Material - Wire and Cable Nylon
Application Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C)
Product Type Building Wire
No. of Strands 19

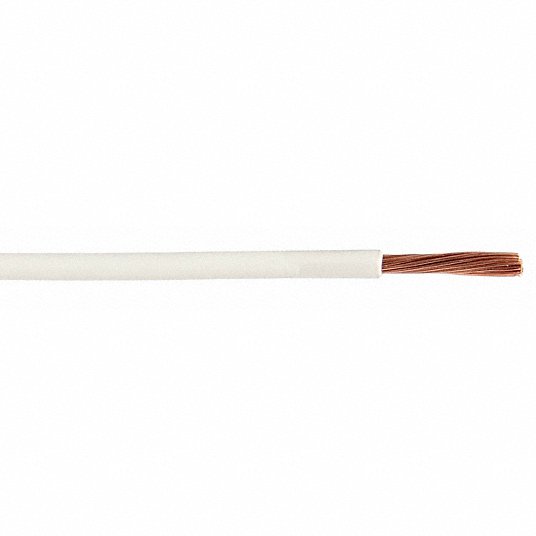

Construction ConstructionSouthwire® THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket. Marked as THWN.
Allowable Ampacity At 60C 30
Insulation Thickness (Mils) 20mils
No. of Conductors 1
Jacket Thickness (Mils) 5mils
Nom. Od (Mils) 165mils
Allowable Ampacity At 90C 30
Applications ApplicationTHHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil
Allowable Ampacity At 75C 30
Package Quantity 1
