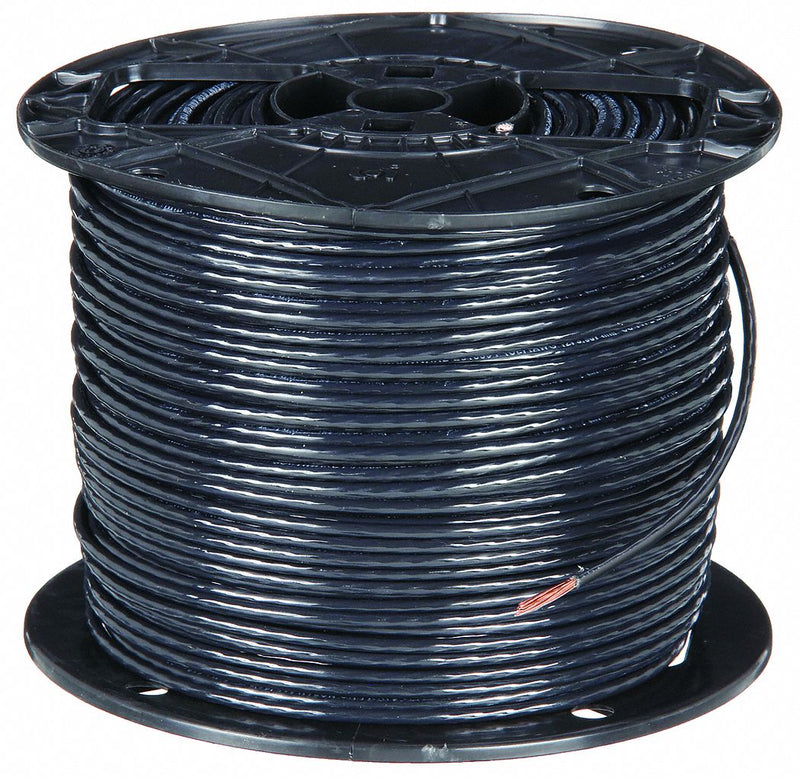

Southwire 22973201 Building Wire, Copper, 10 AWG, 1 Conductors, Stranded, Black, 500 ft Lg, THHN

Southwire 22973201 Building Wire, Copper, 10 AWG, 1 Conductors, Stranded, Black, 500 ft Lg, THHN

UPC: 032886230004 | Harmonization / Schedule B : 8544.49.9000

Country of Origin: United States | Shipping Weight: 20.0 lbs

$282.11 - $282.11
$282.11
$282.11 - $282.11
$282.11

Building Wire, Trade Designation THHN, Wire Size 10 AWG, Wire Color Black, Length 500 ft, Conductor Design Stranded, Number of Conductors 1, Insulation Material PVC, Nominal Outside Dia. 0.16 in, Packaging Spool, Voltage 600 V, Stranding 19

Wire Size 10 AWG
Length 500 ft
Nominal Outside Dia. 0.16 in
Insulation Thickness (Mils) 20mils
Jacket Thickness (Mils) 5mils
Nominal Outside Diameter 0.16 in
Minimum Bend Radius 11/16 in
Overall Length 500 ft
Conductor Size 10 AWG
Wire Rope Length 500 ft
Trade Designation THHN
Conductor Material Copper
Number of Conductors 1C
Wire Color Black
Jacket Color Black
Jacket Material Nylon
Conductor Design Stranded
Insulation Material PVC
Voltage 600V AC
Temp. Rating 194°F
Standards UL Listed, E34382
Packaging Spool
Stranding 19
Max. Amps 30
Application Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C)
Applications ApplicationTHHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil
Construction ConstructionSouthwire® THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket. Marked as THWN.
Allowable Ampacity At 75C 30
Temperature Rating - Maximum Wet 167 Degrees F
Conductor Insulation Color Black
Temperature Rating - Maximum Dry 194 Degrees F
Number of Strands 19
Conductor Insulation Material Nylon, PVC
Fire Resistance Rating Not Rated
Country of Origin United States
