Southwire 22971601 Building Wire, THHN, 12 AWG, 500 ft, Brown, Nylon Jacket, PVC Insulation
UPC: 032886229503 | Harmonization (Schedule B): 8544.49.3080
SKU KV5C985
Original price
$157.99
-
Original price
$157.99
Original price
$157.99
$157.99
-
$157.99
Current price
$157.99
Building Wire, Trade Designation THHN, Wire Size 12 AWG, Wire Color Brown, Length 500 ft, Conductor Design Stranded, Number of Conductors 1, Jacket Material Nylon, Insulation Material PVC, Nominal Outside Dia. 0.13 in, Packaging Spool, Jacket Color Brown, Voltage 600V AC, Stranding 19
| Item | Building Wire |
| Trade Designation | THHN |
| Voltage | 600V AC |
| Jacket Color | Brown |
| Insulation Material | PVC |
| Temp. Rating | 194 Degrees F |
| Jacket Material | Nylon |
| Wire Color | Brown |
| Number of Conductors | 1 |
| Conductor Design | Stranded |
| Insulation Material (Wire and Cable) | PVC |
| Wire and Cable Item | Building Wire |
| Stranded / Solid | Stranded |
| Jacket Material - Wire and Cable | Nylon |
| Wire Type | THHN |
| Standards | UL,E34382 |
| Insulation Material - Wire and Cable | PVC |

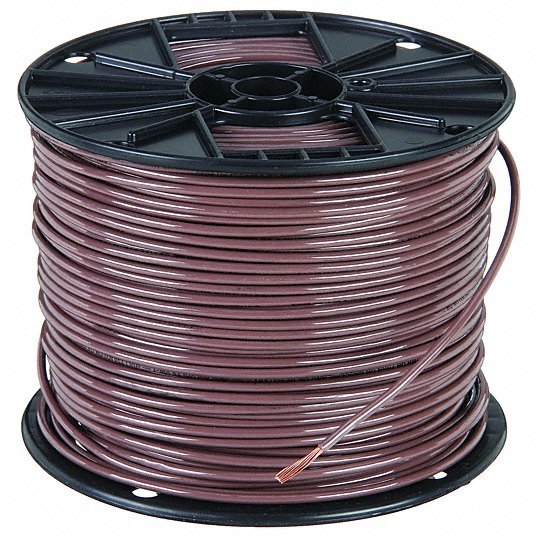

| Packaging | Plastic Spool |
| Stranding | 19 |
| Max. Amps | 20 |
| Wire Type - Wire and Cable | THHN |
| Application | Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C) |
| Product Type | Building Wire |
| Applications | ApplicationTHHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil. |
| No. of Conductors | 1 |
| Jacket Thickness (Mils) | 5mils |
| Allowable Ampacity At 75C | 20 |
| Allowable Ampacity At 60C | 20 |
| No. of Strands | 19 |
| Insulation Thickness (Mils) | 15mils |
| Nom. Od (Mils) | 132mils |
| Allowable Ampacity At 90C | 20 |

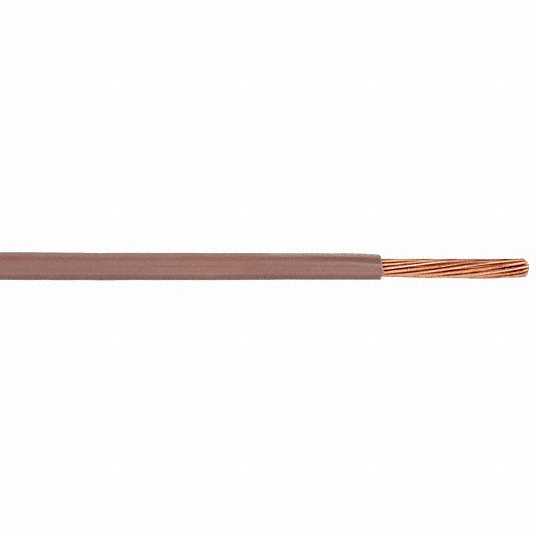

| Construction | ConstructionSouthwire® THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket. Marked as THWN. |
| Package Quantity | 1 |
