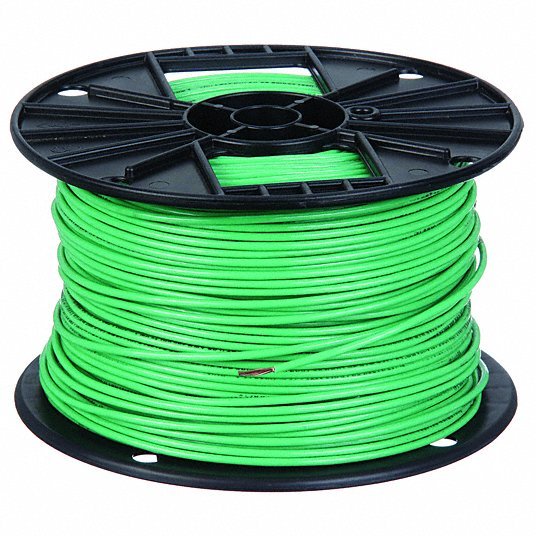

Southwire 22968201 Building Wire, THHN, 12 AWG, 500 ft, Green, Nylon Jacket, PVC Insulation

UPC: 032886229404 | Harmonization (Schedule B): 8544.49.3080

SKU KV2W406
Original price $157.99 - Original price $157.99
Original price
$157.99
$157.99 - $157.99
Current price $157.99
When it comes to electrical wiring, the Southwire Building Wire is a must-have. It can be used for indoor applications in dry or wet locations. This 12 AWG building wire has a green nylon jacket and 600V AC voltage rating. It has a length of 500 ft and is perfect for use with small appliances, tools, lights, switches, receptacles and general purpose circuits. The THHN stranded wire is easy to strip and connect. If you are looking for quality building wire that will meet your needs on the job site, this Southwire Building Wire is the ideal choice.
Item Building Wire
Trade Designation THHN
Voltage 600V AC
Jacket Color Green
Insulation Material PVC
Temp. Rating 194 Degrees F
Jacket Material Nylon
Wire Color Green
Number of Conductors 1
Conductor Design Stranded
Packaging Plastic Spool
Insulation Material (Wire and Cable) PVC
Wire Type THHN
Jacket Material - Wire and Cable Nylon
Max. Amps 20
Wire and Cable Item Building Wire
Standards UL,E34382
Stranding 19
Wire Type - Wire and Cable THHN
Insulation Material - Wire and Cable PVC
Stranded / Solid Stranded
Application Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C)
Product Type Building Wire
Jacket Thickness (Mils) 5mils
Allowable Ampacity At 90C 20
No. of Conductors 1
Insulation Thickness (Mils) 15mils
Construction ConstructionSouthwire® THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket. Marked as THWN.
No. of Strands 19
Applications ApplicationTHHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil.
Nom. Od (Mils) 132mils
Allowable Ampacity At 75C 20
Allowable Ampacity At 60C 20
Package Quantity 1
