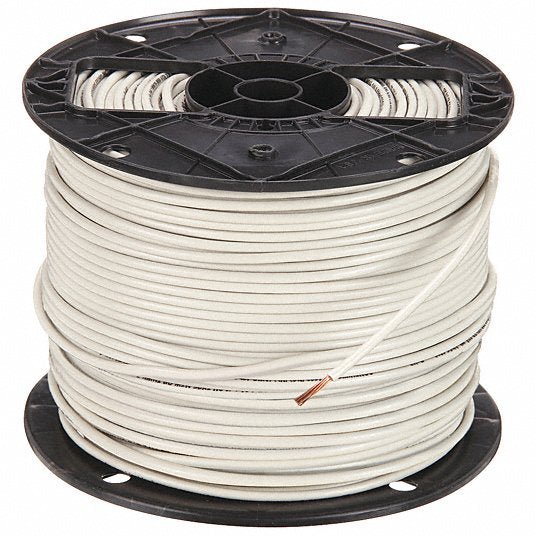

Southwire 22965801 Building Wire, THHN, 12 AWG, 500 ft, White, Nylon Jacket, PVC Insulation

UPC: 032886229107 | Harmonization / Schedule B : 8544.49.3080

Country of Origin: United States | Shipping Weight: 13 lbs

$191.67 - $191.67
$191.67
$191.67 - $191.67
$191.67
If you are looking for a building wire that is reliable and dependable, this Southwire THHN 12 AWG Building Wire is the perfect choice. The white nylon jacket makes it easy to identify this building wire. This 600V AC building wire has a voltage rating of 600V AC. It has a length of 500 ft and is made with 12 AWG wire. With its stranded conductor design, the building wire offers maximum conductivity. If you want high quality at an affordable price, then look no further than the Southwire THHN Building Wire.
Item Building Wire
Trade Designation THHN
Voltage 600V AC
Jacket Color White
Insulation Material PVC
Temp. Rating 194 Degrees F
Jacket Material Nylon
Wire Color White
Number of Conductors 1
Conductor Design Stranded
Packaging Plastic Spool
Stranded / Solid Stranded
Standards UL,E34382
Insulation Material - Wire and Cable PVC
Stranding 19
Wire Type THHN
Wire and Cable Item Building Wire
Jacket Material - Wire and Cable Nylon
Max. Amps 20
Insulation Material (Wire and Cable) PVC
Wire Type - Wire and Cable THHN
Application Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C)
Product Type Building Wire
Insulation Thickness (Mils) 15mils
Applications ApplicationTHHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil.
No. of Conductors 1
No. of Strands 19
Allowable Ampacity At 60C 20
Construction ConstructionSouthwire® THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket. Marked as THWN.
Allowable Ampacity At 75C 20
Jacket Thickness (Mils) 5mils
Allowable Ampacity At 90C 20
Nom. Od (Mils) 132mils
Package Quantity 1
