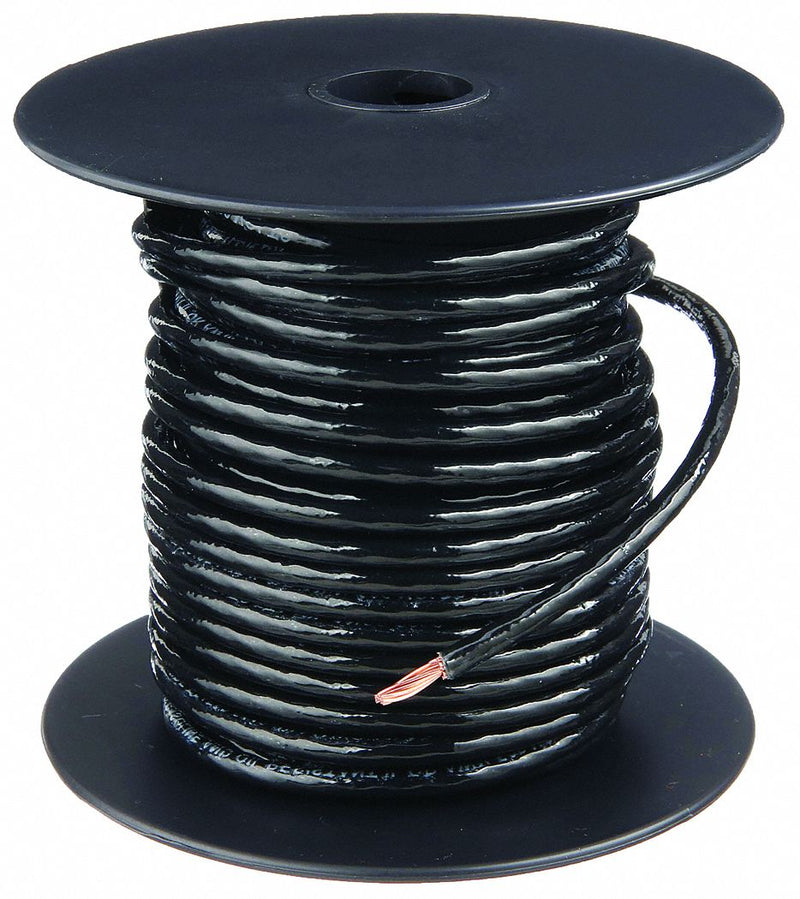

Southwire 22955984 Building Wire, Copper, 14 AWG, 1 Conductors, Stranded, Black, 100 ft Lg, THHN

Southwire 22955984 Building Wire, Copper, 14 AWG, 1 Conductors, Stranded, Black, 100 ft Lg, THHN

UPC: 032886007026 | Harmonization / Schedule B : 8544.49.3040

Country of Origin: United States | Shipping Weight: 1.8 lbs

$58.68 - $58.68
$58.68
$58.68 - $58.68
$58.68

Building Wire, Trade Designation THHN, Wire Size 14 AWG, Wire Color Black, Length 100 ft, Conductor Design Stranded, Number of Conductors 1, Jacket Material Not Applicable, Insulation Material PVC, Nominal Outside Dia. 0.11 in, Packaging Spool, Jacket Color Not Applicable, Voltage 600 V, Stranding 19

Trade Designation THHN
Wire Size 14 AWG
Conductor Material Copper
Number of Conductors 1C
Wire Color Black
Jacket Color Black
Jacket Material Nylon
Conductor Design Stranded
Insulation Material PVC
Voltage 600V AC
Length 100 ft
Temp. Rating 194°F
Standards UL Listed
Packaging Spool
Max. Amps 15 A
Nominal Outside Dia. 0.11 in
Stranding 19
Application Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C)
Insulation Thickness (Mils) 15mils
Jacket Thickness (Mils) 5mils
Construction ConstructionSouthwire® THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket. Marked as THWN.
Allowable Ampacity At 75C 15
Applications ApplicationTHHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil
Conductor Size 14 AWG
Overall Length 100 ft
Fire Resistance Rating Not Rated
Temperature Rating - Maximum Wet 167 Degrees F
Conductor Insulation Color Black
Nominal Outside Diameter 0.11 in
Temperature Rating - Maximum Dry 194 Degrees F
Minimum Bend Radius 1/2 in
Number of Strands 19
Conductor Insulation Material Nylon, PVC
Series Not Applicable
Package Quantity 1
Country of Origin United States
