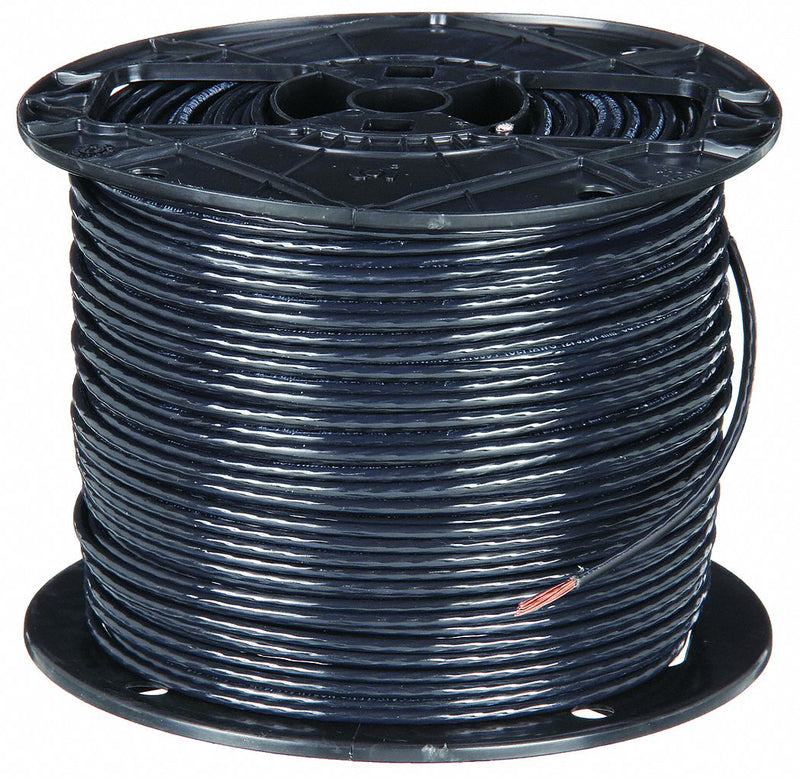

Southwire 22955901 Building Wire, Copper, 14 AWG, 1 Conductors, Stranded, Black, 500 ft Lg, THHN

Southwire 22955901 Building Wire, Copper, 14 AWG, 1 Conductors, Stranded, Black, 500 ft Lg, THHN

UPC: 032886228001 | Harmonization / Schedule B : 8544.49.9000

Country of Origin: United States | Shipping Weight: 8.5 lbs

$152.41 - $152.41
$152.41
$152.41 - $152.41
$152.41

Building Wire, Trade Designation THHN, Wire Size 14 AWG, Wire Color Black, Length 500 ft, Conductor Design Stranded, Number of Conductors 1, Insulation Material PVC, Nominal Outside Dia. 0.11 in, Packaging Spool, Voltage 600 V, Stranding 19

Wire Size 14 AWG
Length 500 ft
Nominal Outside Dia. 0.11 in
Jacket Thickness (Mils) 5mils
Insulation Thickness (Mils) 15mils
Nominal Outside Diameter 0.11 in
Overall Length 500 ft
Minimum Bend Radius 1/2 in
Conductor Size 14 AWG
Wire Rope Length 500 ft
Trade Designation THHN
Conductor Material Copper
Number of Conductors 1C
Wire Color Black
Jacket Color Black
Jacket Material Nylon
Conductor Design Stranded
Insulation Material PVC
Voltage 600V AC
Temp. Rating 194°F
Standards UL Listed, E34382
Packaging Spool
Max. Amps 15 A
Stranding 19
Application Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C)
Applications ApplicationTHHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil.
Construction ConstructionSouthwire® THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket. Marked as THWN.
Allowable Ampacity At 75C 15
Number of Strands 19
Temperature Rating - Maximum Dry 194 Degrees F
Fire Resistance Rating Not Rated
Temperature Rating - Maximum Wet 167 Degrees F
Conductor Insulation Color Black
Conductor Insulation Material Nylon, PVC
Country of Origin United States
