Southwire 20504702 Building Wire, THHN, 1 AWG, 500 ft, Black, Nylon Jacket, PVC Insulation - KVM Tools Inc.KV5ZG88

Southwire 20504702 Building Wire, THHN, 1 AWG, 500 ft, Black, Nylon Jacket, PVC Insulation

UPC: 032886233500 | Harmonization / Schedule B : 8544.49.3080

Country of Origin: | Shipping Weight:

$1,750.99 - $1,750.99
$1,750.99
$1,750.99 - $1,750.99
$1,750.99
Building Wire, Trade Designation THHN, Wire Size 1 AWG, Wire Color Black, Length 500 ft, Conductor Design Stranded, Number of Conductors 1, Jacket Material Nylon, Insulation Material PVC, Nominal Outside Dia. 0.44 in, Packaging Wood Reel with Fiber Drum, Jacket Color Black, Voltage 600V AC, Stranding 19
Item Building Wire
Trade Designation THHN
Voltage 600V AC
Jacket Color Black
Insulation Material PVC
Temp. Rating 194 Degrees F
Jacket Material Nylon
Wire Color Black
Number of Conductors 1
Conductor Design Stranded
Wire Type - Wire and Cable THHN
Insulation Material (Wire and Cable) PVC

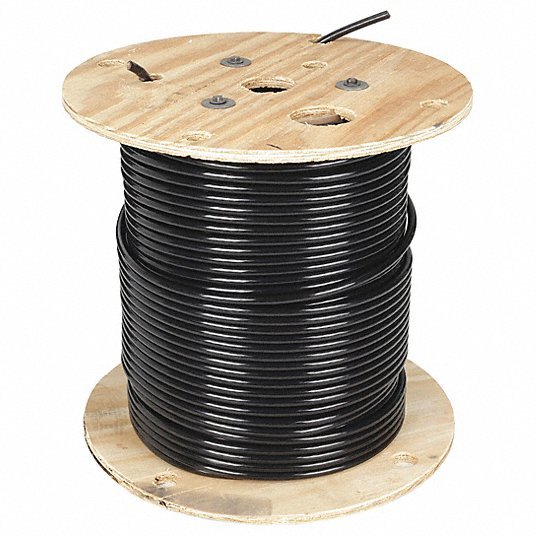

Packaging Wood Reel with Fiber Drum
Jacket Material - Wire and Cable Nylon
Insulation Material - Wire and Cable PVC
Wire Type THHN
Stranded / Solid Stranded
Stranding 19
Max. Amps 130
Standards UL,E34382
Wire and Cable Item Building Wire
Application Wet or Dry Locations (Below 90°C), Locations Exposed to Oil (Below 75°C)
Product Type Building Wire

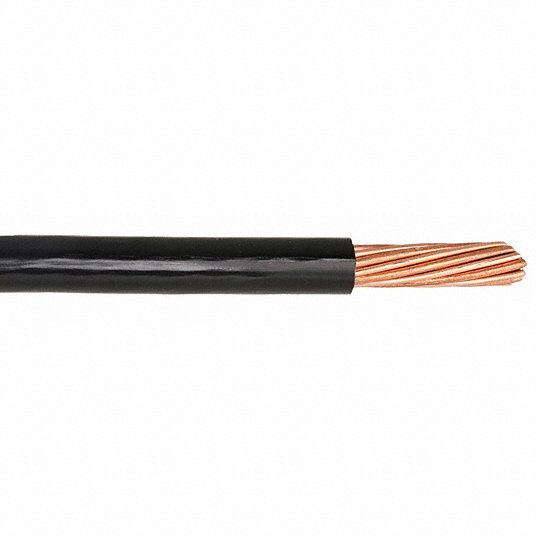

Construction ConstructionSouthwire® SIMpull THHN® copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket utilizing SIMpull® Technology. Marked as THWN-2. Marked sunlight resistant.
Allowable Ampacity At 60C 110
Allowable Ampacity At 90C 145
Nom. Od (Mils) 439mils
Insulation Thickness (Mils) 50mils
Allowable Ampacity At 75C 130
Jacket Thickness (Mils) 8mils
No. of Conductors 1
Applications ApplicationSouthwire® SIMpull THHN® copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts. SIMpull THHN® copper conductors are designed to be installed without application of a pulling lubricant.THWN-2- Wet or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil
No. of Strands 19
Package Quantity 1
