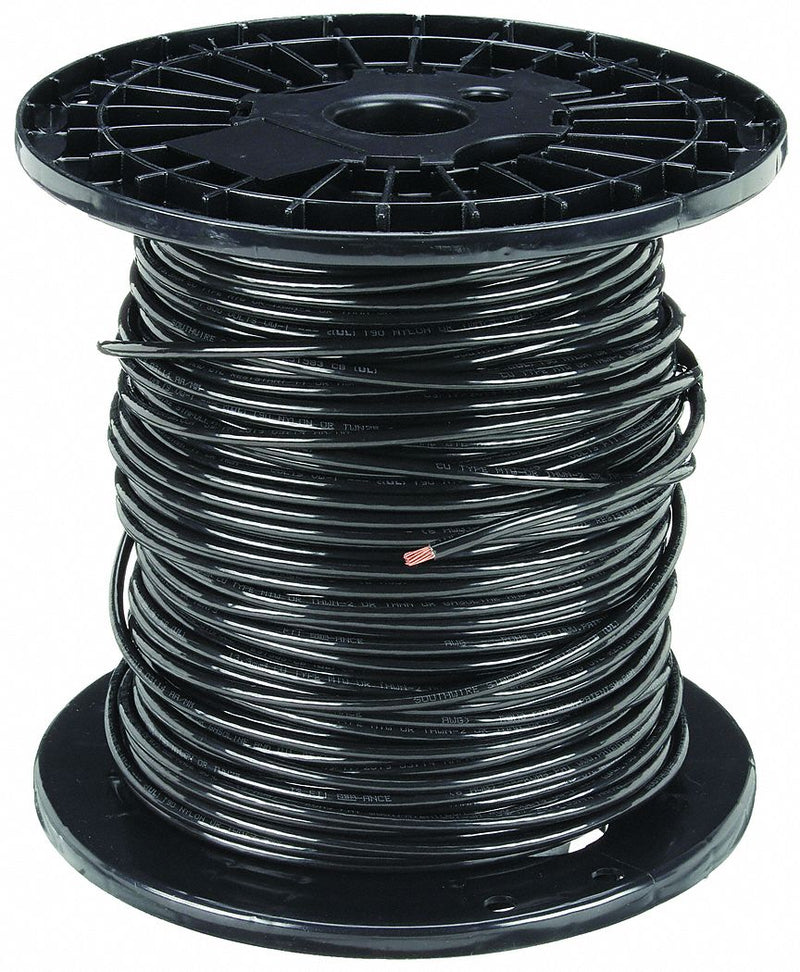

Southwire 20499001 Simpull THHN 4 AWG Copper Building Wire Black 500 ft Spool

Southwire 20499001 Simpull THHN Building Wire, Copper, 4 AWG, 1C Stranded, Black, 500 ft Spool, 600V

UPC: 032886122101 | Harmonization / Schedule B : 8544.42.9090

Country of Origin: United States | Shipping Weight: 80 lbs

$1,272.18 - $1,272.18
$1,272.18
$1,272.18 - $1,272.18
$1,272.18

Building Wire, Trade Designation THHN, Wire Size 4 AWG, Wire Color Black, Length 500 ft, Conductor Design Stranded, Number of Conductors 1, Insulation Material PVC, Nominal Outside Dia. 0.32 in, Packaging Spool, Voltage 600 V, Stranding 19

Trade Designation THHN
Conductor Material Copper
Number of Conductors 1C
Wire Color Black
Jacket Color Black
Jacket Material Nylon
Conductor Design Stranded
Insulation Material PVC
Voltage 600V AC
Temp. Rating 194°F
Standards UL Listed, E34382
Max. Amps 85
Packaging Spool
Stranding 19
Allowable Ampacity At 60C 70
Construction Southwire SIMpull THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket utilizing SIMpull Technology. Marked as THWN-2.
Applications Southwire SIMpull THHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts. THWN-2 - Wet or dry locations not to exceed 90 C or locations not to exceed 75 C when exposed to oil.
Allowable Ampacity At 90C 100
Allowable Ampacity At 75C 85
Number of Strands 19
Fire Resistance Rating Not Rated
Temperature Rating - Maximum Wet 167 Degrees F
Conductor Insulation Color Black
Series Simpull(R)
Temperature Rating - Maximum Dry 194 Degrees F
Conductor Insulation Material Nylon, PVC
Country of Origin United States
