Southwire 20494101 Building Wire, THHN, 6 AWG, 500 ft, White, Nylon Jacket, PVC Insulation
by Southwire
$605.99
SKU KV4WZL8
Building Wire, Trade Designation THHN, Wire Size 6 AWG, Wire Color White, Length 500 ft, Conductor Design Stranded, Number of Conductors 1, Jacket Material Nylon, Insulation Material PVC, Nominal Outside Dia. 0.25 in, Packaging Spool, Jacket Color White, Voltage 600V AC, Stranding 19
Details
| Item | Building Wire |
| Trade Designation | THHN |
| Voltage | 600V AC |
| Jacket Color | White |
| Insulation Material | PVC |
| Temp. Rating | 194 Degrees F |
| Jacket Material | Nylon |
| Wire Color | White |
| Number of Conductors | 1 |
| Conductor Design | Stranded |
| Wire and Cable Item | Building Wire |
| Stranded / Solid | Stranded |
| Standards | UL |
| Insulation Material - Wire and Cable | PVC |
| Stranding | 19 |
| Max. Amps | 65 |

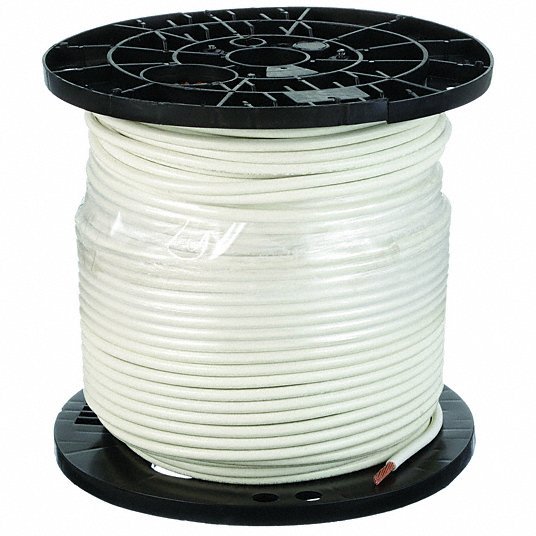

| Packaging | Plastic Spool |
| Wire Type | THHN |
| Wire Type - Wire and Cable | THHN |
| Jacket Material - Wire and Cable | Nylon |
| Insulation Material (Wire and Cable) | PVC |
| Application | Wet or Dry Locations (Below 90°C), Locations Exposed to Oil (Below 75°C) |
| Product Type | Building Wire |
| No. of Strands | 19 |
| No. of Conductors | 1 |

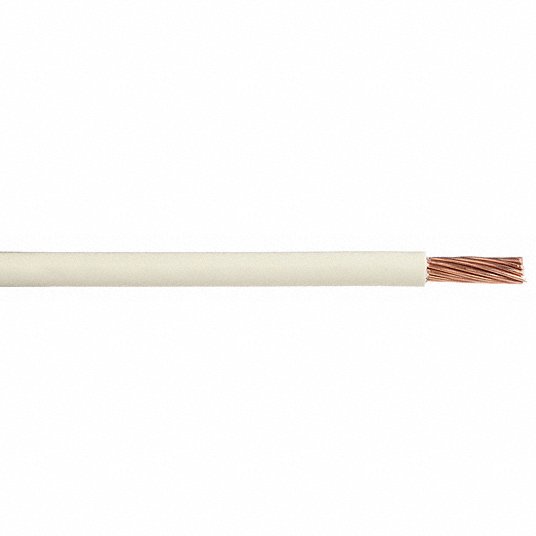

| Construction | ConstructionSouthwire® SIMpull THHN® copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket utilizing SIMpull® Technology. Marked as THWN-2. |
| Allowable Ampacity At 90C | 75 |
| Allowable Ampacity At 60C | 55 |
| Nom. Od (Mils) | 253mils |
| Insulation Thickness (Mils) | 30mils |
| Allowable Ampacity At 75C | 65 |
| Jacket Thickness (Mils) | 6mils |
| Applications | ApplicationSouthwire® SIMpull THHN® copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts. SIMpull THHN® copper conductors are designed to be installed without application of a pulling lubricant.THWN-2- Wet or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil |
| Package Quantity | 1 |
