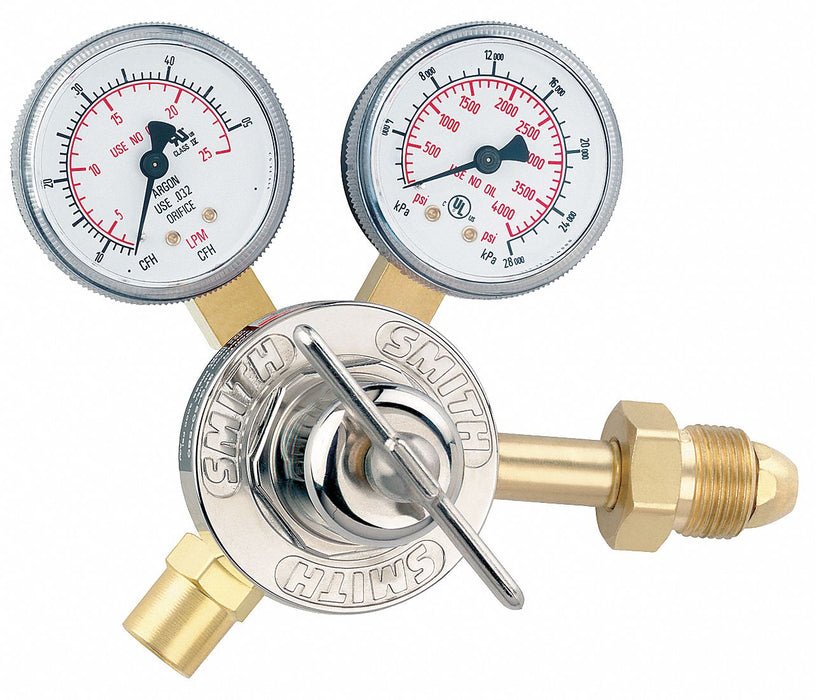

Smith Equipment 31-50-580 Argon Flow Gauge Regulator

Smith Equipment 31-50-580 Flow Gauge Regulator, Argon, Single Stage, CGA 580 Inlet, 50 cfh

UPC: 014495263116 | Harmonization / Schedule B : 9032.81.0000

Country of Origin: United States | Shipping Weight: 2.85 lbs

$362.65 - $362.65
$362.65
$362.65 - $362.65
$362.65

Flow Gauge Regulator, Compatible Gas Type Argon, Mounting Type Cylinder, Inlet Connection Gender Female, Inlet Thread Direction Right Hand, Inlet Connection Size 0.965 In.-14, Inlet Connection Type NGO, Maximum Inlet Pressure 3,000 psig, Outlet Pressure (Maximum) 50 psig, Outlet Connection Gender Female, Outlet Connection Size 5/8 In.-18, Outlet Connection Type UNF, Argon Flow Rate (Maximum) 50 scfh, Carbon Dioxide Flow Rate (Maximum) 50 scfh, Number of Stages Single Stage

Compatible Gas Type Argon
Body Material Brass
Number of Stages Single Stage
Outlet Pressure (Maximum) 50 psig
Regulator Supply Type Cylinder
Regulator Capacity Medium Duty
Stages Single Stage
Standards UL Listed
Diaphragm Material Neoprene
Delivery Pressure Range 50 cfh
Application General Purpose
Includes Nickel-Plated Bonnet, Self Reseting Safety Relief Valve, Sure Seat(TM) Filtered Seat
Delivery 0 to 50 scfh
Gauges Delivery Pressure 50 cfh
Regulator Application General Purpose
Supply Pressure Gauge 4,000 psi
Duty Rating Heavy Duty
Type Single Stage
Features Three-Year Warranty, Self-Resetting Pressure Relief Valve
Outlet Connection Gender Female
Product Type Flow Gauge Regulator
CGA Number CGA 580
Inlet Thread Direction Right Hand
Control Type Knob
Flowmeter Series 30
Outlet Thread Direction Right Hand
Argon Flow Rate (Minimum) 10 scfh
Inlet Connection Type NGO
Carbon Dioxide Flow Rate (Maximum) 50 scfh
Argon Flow Rate (Maximum) 50 scfh
Outlet Connection Type UNF
Maximum Gauge Inlet Pressure 3,000 psig
Inlet Connection Gender Female
Inlet Pressure (Maximum) 3,000 psig
Regulator Series 30
Country of Origin United States
