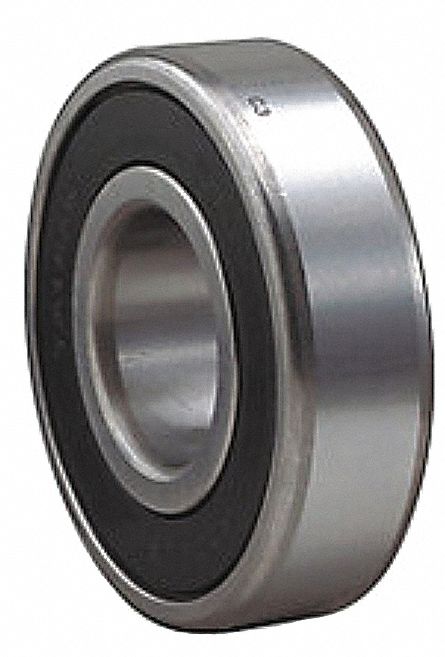

SKF 6208 2RS JEM Radial Ball Bearing, 6208, Dbl Sealed, Contact Seal, 40 mm Bore, 80 mm OD, 18 mm Wd

SKF 6208 2RS JEM Radial Ball Bearing, 6208, Dbl Sealed, Contact Seal, 40 mm Bore, 80 mm OD, 18 mm Wd

UPC: | Harmonization / Schedule B : 8482.10.5052

Country of Origin: | Shipping Weight: 0.85 lbs

$119.83 - $119.83
$119.83
$119.83 - $119.83
$119.83

Radial Ball Bearing, Bearing Industry Number 6208, Bore Diameter 40 mm, Closure Double Sealed, Outer Ring Width 18 mm, Outside Diameter 80 mm, Ring Material Alloy Steel, Seal Type Contact, System of Measurement Metric, Cage Material Steel, ABEC Rating 1, Ball Material Alloy Steel, Bore Diameter Tolerance +0/-0.01 mm, Dynamic Radial Load Capacity 7,300 lbf, Includes Retaining Ring No, Lubricant Material MT47 Grease

Bore Dia. 40 mm
Outside Dia. 80 mm
Width 18 mm
Bore Diameter 40 mm
Outside Diameter 80 mm
Outer Ring Width 18 mm
Outside Dia. Tolerance +0/-11 micron
Bore Diameter Tolerance +0/-0.01 mm
Outside Diameter Tolerance +0/-11 micron
Single Row/Double Row Single Row
Bearing Type Sealed
System of Measurement Metric
Seal/Shield Type Double Sealed
Bearing Industry Number 6208
ABEC Rating 1
Closure Double Sealed
Number of Rows 1
Ring Material Alloy Steel
Ball Material Alloy Steel
Cage Material Steel
Bearing Material Steel
Shield Material Metal
Static Load Capacity 4,300 lb
Industry Number 3VX630
Seal Material Synthetic Rubber
Lubrication MT47 Grease
Bore Tolerance +0/-.01mm
Dynamic Load Capacity 7,300 lb
Max. RPM 11,000 RPM
ABEC Tolerance 1
Temp. Range -40 Degrees to 212 Degrees F
Minimum Temperature -40 Degrees F
Includes Retaining Ring No
Dynamic Radial Load Capacity 7,300 lbf
Static Radial Load Capacity 4,300 lbf
Ring Material Grade 100Cr6
Retaining Ring Groove No
Seal Type Contact
Maximum Axial Load 7,300 lbf
Maximum Temperature 212 Degrees F
Maximum Speed 11,000 RPM
Lubricant Material MT47 Grease
CAD Available Yes
Country of Origin Multiple
