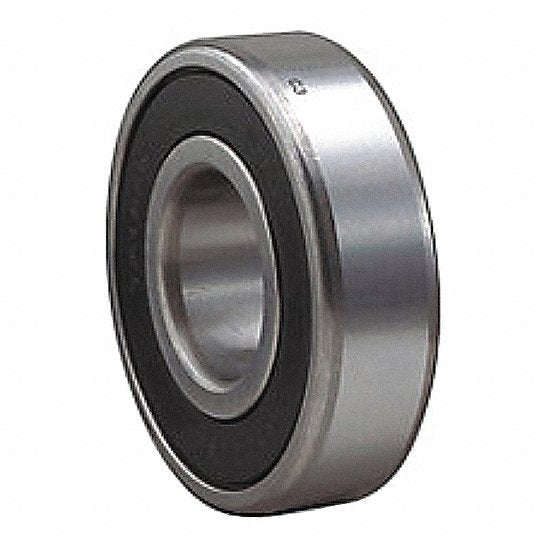

Radial Ball Bearing, Bearing Industry Number 6204, Bore Diameter 20 mm, Closure Double Sealed, Outer Ring Width 14 mm, Outside Diameter 47 mm, Ring Material Alloy Steel, Seal Type Contact, System of Measurement Metric, Cage Material Steel, ABEC Rating 1, Ball Material Alloy Steel, Bore Diameter Tolerance +0/-0.008 mm, Dynamic Radial Load Capacity 3,000 lbf, Includes Retaining Ring No, Lubricant Material MT47 Grease
| Bearing Type |
Sealed |
| Single Row/Double Row |
Single Row |
| Cage Material |
Steel |
| Seal/Shield Type |
Double Sealed |
| Bore Tolerance |
+0/-.008mm |
| Dynamic Load Capacity |
3,000 lb |
| Temp. Range |
-40 Degrees to 212 Degrees F |
| Shield Material |
Metal |
| Lubrication |
MT47 Grease |
| Bearing Material |
Steel |
| Max. RPM |
20,000 RPM |
| Industry Number |
6204 2RS JEM |
| ABEC Tolerance |
1 |
| Seal Material |
Synthetic Rubber |
| Static Load Capacity |
1,500 lb |
| Ball Material |
Alloy Steel |
| Seal Type |
Contact |
| Bearing Industry Number |
6204 |
| Dynamic Radial Load Capacity |
3,000 lbf |
| System of Measurement |
Metric |
| Maximum Speed |
20,000 RPM |
| Static Radial Load Capacity |
1,500 lbf |
| Lubricant Material |
MT47 Grease |
| Number of Rows |
One |
| Includes Retaining Ring |
No |
| Maximum Temperature |
212 Degrees F |
| ABEC Rating |
1 |
| Maximum Axial Load |
3,000 lbf |
| Ring Material |
Alloy Steel |
| Retaining Ring Groove |
No |
| Minimum Temperature |
-40 Degrees F |
| Closure |
Double Sealed |
| Ring Material Grade |
100Cr6 |
| Type |
Sealed |
