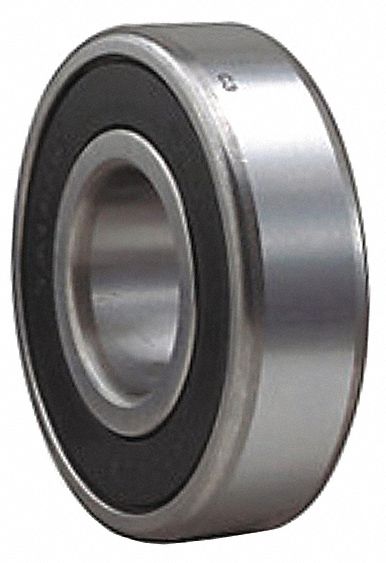

SKF 6015 2RS JEM Radial Ball Bearing, 6015, Dbl Sealed, Contact Seal, 75 mm Bore, 115 mm OD, 20 mm Wd

SKF 6015 2RS JEM Radial Ball Bearing, 6015, Dbl Sealed, Contact Seal, 75 mm Bore, 115 mm OD, 20 mm Wd

UPC: | Harmonization / Schedule B : 8482.10.5044

Country of Origin: | Shipping Weight: 1.5 lbs

$601.11 - $601.11
$601.11
$601.11 - $601.11
$601.11

Radial Ball Bearing, Bearing Industry Number 6015, Bore Diameter 75 mm, Closure Double Sealed, Outer Ring Width 20 mm, Outside Diameter 115 mm, Ring Material Alloy Steel, Seal Type Contact, System of Measurement Metric, Cage Material Steel, ABEC Rating 1, Ball Material Alloy Steel, Bore Diameter Tolerance +0/-0.015 mm, Dynamic Radial Load Capacity 9,350 lbf, Includes Retaining Ring No, Lubricant Material GJN Grease

Bore Dia. 75 mm
Outside Dia. 115 mm
Width 20 mm
Bore Diameter 75 mm
Outside Diameter 115 mm
Outer Ring Width 20 mm
Outside Dia. Tolerance +0/-.015mm
Bore Diameter Tolerance +0/-0.015 mm
Outside Diameter Tolerance +0/-0.015 mm
Bearing Type Ball
Single Row/Double Row Single Row
System of Measurement Metric
Seal/Shield Type Double Sealed
Bearing Industry Number 6015
ABEC Rating 1
Closure Double Sealed
Number of Rows 1
Ring Material Alloy Steel
Ball Material Alloy Steel
Cage Material Steel
Bearing Material Steel
Max. RPM 3,400 RPM
Seal Material Synthetic Rubber
Static Load Capacity 7,530 lb
Temp. Range -40 Degrees to 212 Degrees F
Bore Tolerance +0/-.015mm
Lubrication GJN Grease
Industry Number 6015-2RSJEM
ABEC Tolerance 1
Dynamic Load Capacity 9,350 lb
Max. Load Axial 3,765 lb
Ring Material Grade 100Cr6
Maximum Temperature 212 Degrees F
Minimum Temperature -40 Degrees F
Includes Retaining Ring No
Maximum Speed 3,400 RPM
Maximum Axial Load 3,765 lbf
Seal Type Contact
Retaining Ring Groove No
Dynamic Radial Load Capacity 9,350 lbf
Static Radial Load Capacity 7,530 lbf
Lubricant Material GJN Grease
Country of Origin Multiple
