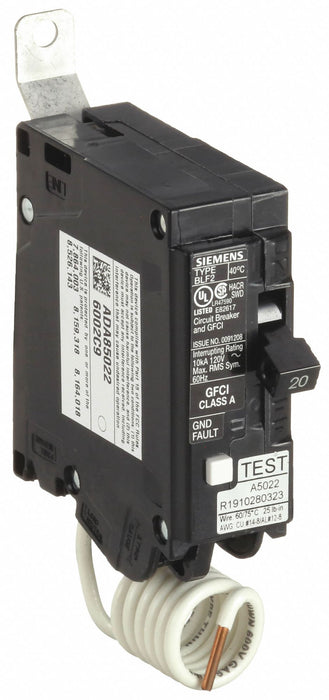

Siemens BF120A Miniature Circuit Breaker

Siemens BF120A Miniature Circuit Breaker, GFCI, 20 A, 1 Pole, 120V AC, BF Series, 10 kA AIR

UPC: 783643069602 | Harmonization / Schedule B : 8536.20.0020

Country of Origin: Philippines | Shipping Weight: 0.4 lbs

$430.55 - $430.55
$430.55
$430.55 - $430.55
$430.55

Miniature Circuit Breaker, 20 A, 120V AC, Ground Fault Circuit Interrupter, 1 Pole, Toggle Actuator, Bolt-On Mount, Single Phase, Series BF, 10kA AIR at 120V AC, For Use With Siemens Panelboards, Lug Terminals, Frame Size 60A/BLHF, Length 3.56 in, Width 1 in, Depth 3 in, Min. Wire Size 12 AWG (Al), 14 AWG (Cu), Max. Wire Size 10 AWG.

Series BF
Amps 20A
Number of Poles 1
AC Voltage Rating 120V AC
Circuit Breaker Type Ground Fault Circuit Interrupter
Phase 1
Circuit Breaker Actuator Toggle
Circuit Breaker Mounting Style Bolt On
Max. AIR Rating 10kA at 120V AC
Terminal Connection Lugs
DC Voltage Rating Not Rated
Standards CSA Certified, HACR Rated, NOM Certified, UL Listed
For Use With Siemens Panelboards
Voltage 120V AC
Country of Origin Philippines
