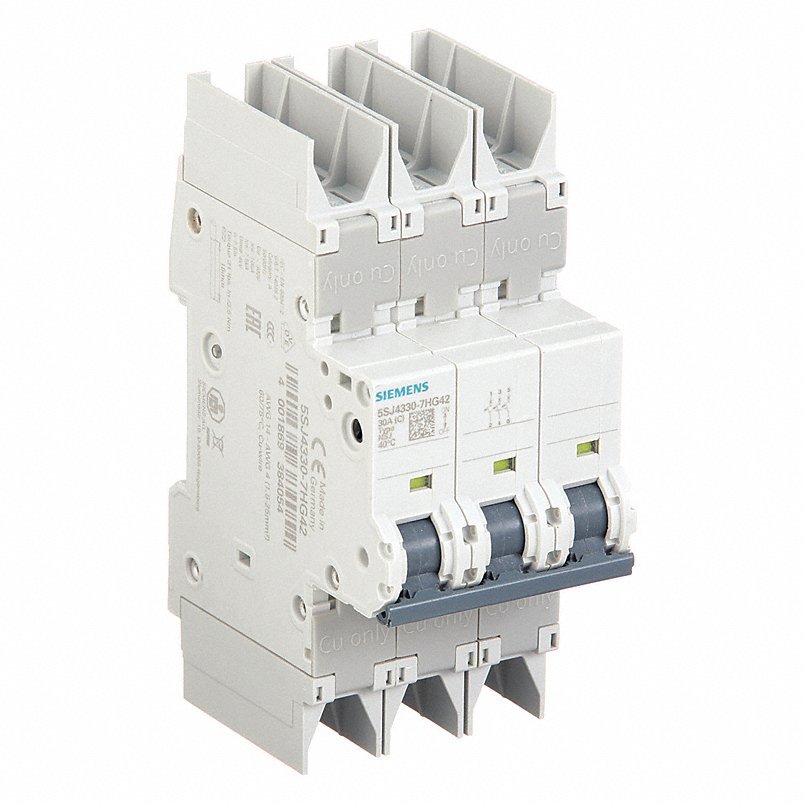

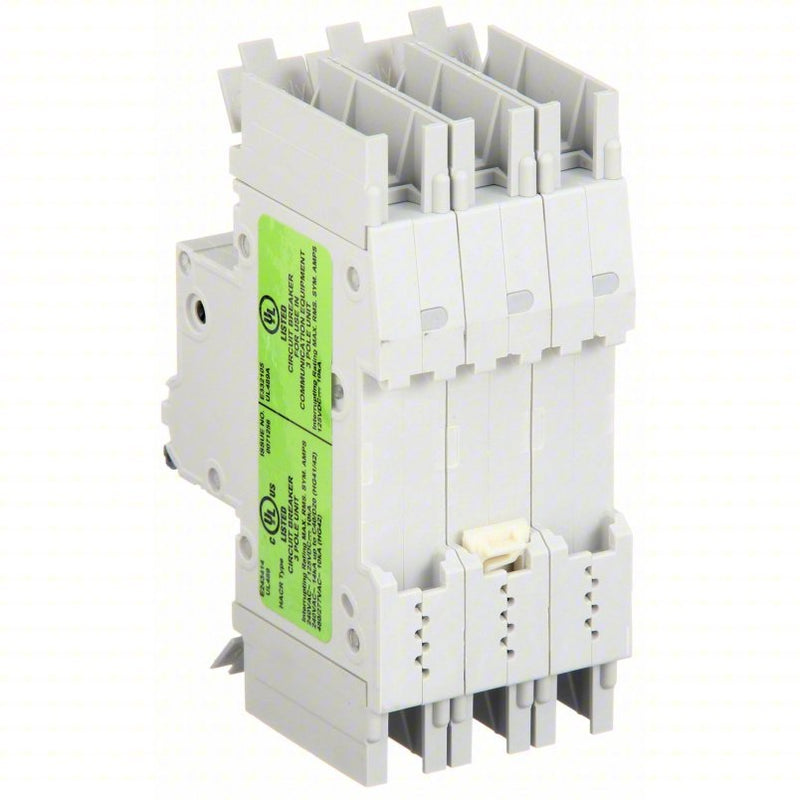

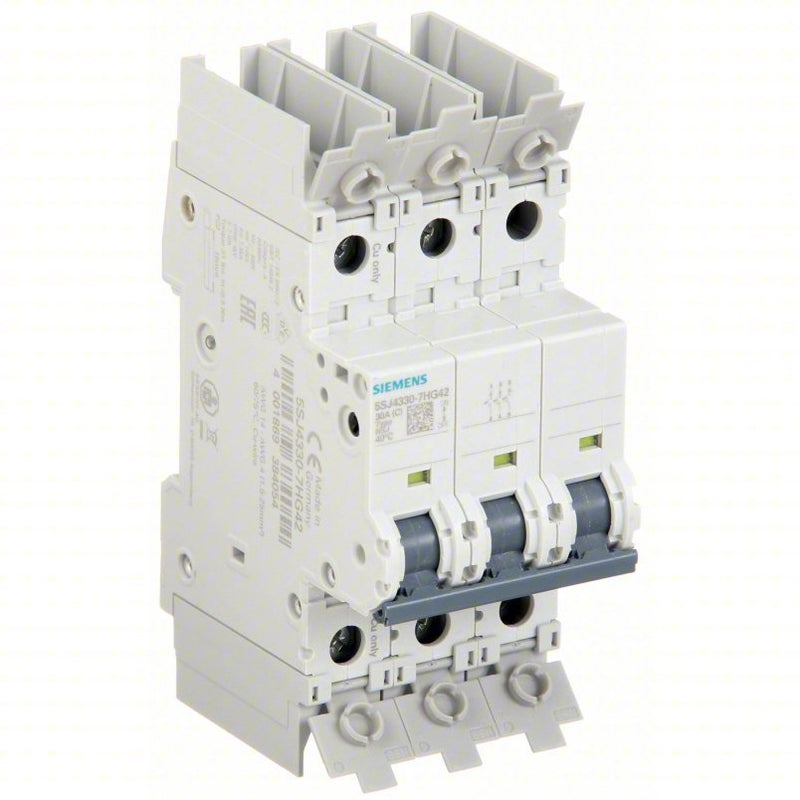

Siemens 5SJ43307HG42 IEC Miniature Circuit Breaker, 30 A, 277/480V AC, 3 Pole, DIN Rail Mounting Style, 5SJ4 Series
UPC: 754554960104 | Harmonization (Schedule B): 8536.20.0020
SKU KV30YD22
Original price
$410.99
-
Original price
$410.99
Original price
$410.99
$410.99
-
$410.99
Current price
$410.99
IEC Miniature Circuit Breaker, Amps 30 A, Number of Poles 3, Curve Type C, AC Voltage Rating 277/480V AC, DC Voltage Rating 125V DC, Max. AIR Rating 10kA at 277/480V AC, Phase 3, Meets UL Type UL 489, Terminal Connection Screw Clamp, Series 5SJ4, Trip Type Thermal Magnetic, Circuit Breaker Mounting Style DIN Rail, Application Industrial, Min. Wire Size 14 AWG, Max. Wire Size 4 AWG, Length 4.76 in, Width 2.13 in, Depth 2.75 in, Frame Size 63A/5SJ4, Circuit Breaker Actuator Toggle
| Item | IEC Miniature Circuit Breaker |
| Amps | 30 A |
| AC Voltage Rating | 277/480V AC |
| DC Voltage Rating | 125V DC |
| Curve Type | C |
| Max. AIR Rating | 10kA at 277/480V AC |
| Terminal Connection | Screw Clamp |
| Series | 5SJ4 |
| Number of Poles | 3 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| Standards | CSA C22.2 No. 5-02, EN 60898, EN 60947-2, UL 489 |
| Trip Type | Thermal Magnetic |
| Mounting | Din Rail |
| Application | Industrial |
| Phase | 3 |
| Housing Material | Thermoplastic |
| Max. Operating Temp. | 113 Degrees F |
| Meets UL Type | UL 489 |
| Min. Operating Temp. | -13 Degrees F |
| Package Quantity | 1 |
