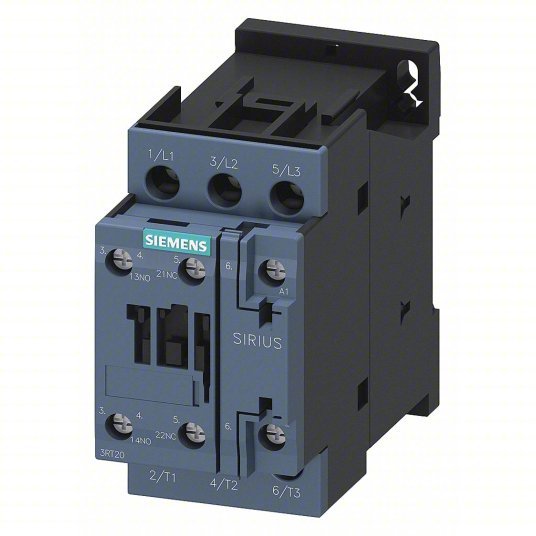

Siemens 3RT20251AG20 IEC Power Contactor Non-Reversing, 3 Poles, 17 A, 110V AC Coil, 1NO/1NC, S0 Frame Size

UPC: 662643915525 | Harmonization (Schedule B): 8536.49.0065

SKU KV56JZ60
Original price $188.42 - Original price $188.42
Original price
$188.42
$188.42 - $188.42
Current price $188.42
IEC Power Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 110V AC, Number of Poles 3, Full Load Current - Inductive 17 A, Full Load Current - Resistive 40 A, Reversing Capability Non-Reversing, Overall Height 4.18 in, Overall Width 2.13 in, Terminal Connection Type Screw Terminals, Frame Size S0, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT20, Number of Auxillary Contacts 2, Contactor Style IEC
Full Load Amps-Inductive 17 A
Full Load Amps-Resistive 40 A
Number of Poles 3
Coil Volts 110 V AC
HP @ 1 Phase - 120V 1 hp
HP @ 1 Phase - 240V 3 hp
HP @ 3 Phase - 208V 3 hp
HP @ 3 Phase - 240V 5 hp
HP @ 3 Phase - 480V 10 hp
HP @ 3 Phase - 575V 15 hp
Aux. Contact Configuration 1NO/1NC
Hz 50/60
Standards REACH Art 33, WEEE (2012/19/EU)
Frame / Series / Class / Code S0
IP Rating IP20
Max. Operating Watts 8 kW (at 400V, AC-3), 23 kW (at 400V, AC-1)
Watts Loss 0.6W (Current Dependent); 7.9W (Current Independent)
Electrical Connection Screws
Series SIRIUS 3RT20
Frequency 50/60 Hz
Phase Three
Horsepower @ Single Phase - 240V AC 3 hp
Full Load Current - Inductive 17 A
Coil Voltage 110V AC
Embedded Surge Suppressor No
Maximum Operating Temperature 140 Degrees F
Horsepower @ Three Phase - 240V AC 5 hp
Reversing Capability Non-Reversing
Mechanical Operating Durability 10,000,000
Horsepower @ Three Phase - 600V AC 15 hp
Number of Normally Open Main Contacts 3
NEMA Enclosure Rating No Enclosure
Mounting Postion Vertical
Horsepower @ Single Phase - 120V AC 1 hp
Mounting Style DIN Rail, Surface
Minimum Operating Temperature -13 Degrees F
Auxiliary Contact Form 1NO/1NC
Number of Auxillary Contacts 2
Terminal Connection Type Screw Terminals
Horsepower @ Three Phase - 480V AC 10 hp
Full Load Current - Resistive 40 A
Horsepower @ Three Phase - 208V AC 3 hp
Maximum Voltage Rating 690V AC
Contactor Style IEC
Response Time 10 to 18 msec (AC Operation Closing Delay Operation Opening Delay Operating Times for 1.0 x Us1), 15 to 17.5 msec (DC Operation Opening Delay Operating Times For 0.8 ... 1.1 X Us1), 16 to 17 msec (DC Operation Opening Delay Operating Times for 1.0 x Us), 4 to 16 msec (AC Operation Opening Delay Operating Times for 0.8 ... 1.1 X Us1), 4 to 16 msec (AC Operation Opening Delay Operating Times for 1.0 x Us), 50 to 170 msec (DC Operation Closing Delay Operating Times for 0.8 ... 1.1 X Us1), 55 to 80 msec (DC Operation Closing Delay Operating Times for 1.0 x Us), 9 to 38 msec (AC Operation Closing Delay)
Includes Auxiliary Contacts Yes
