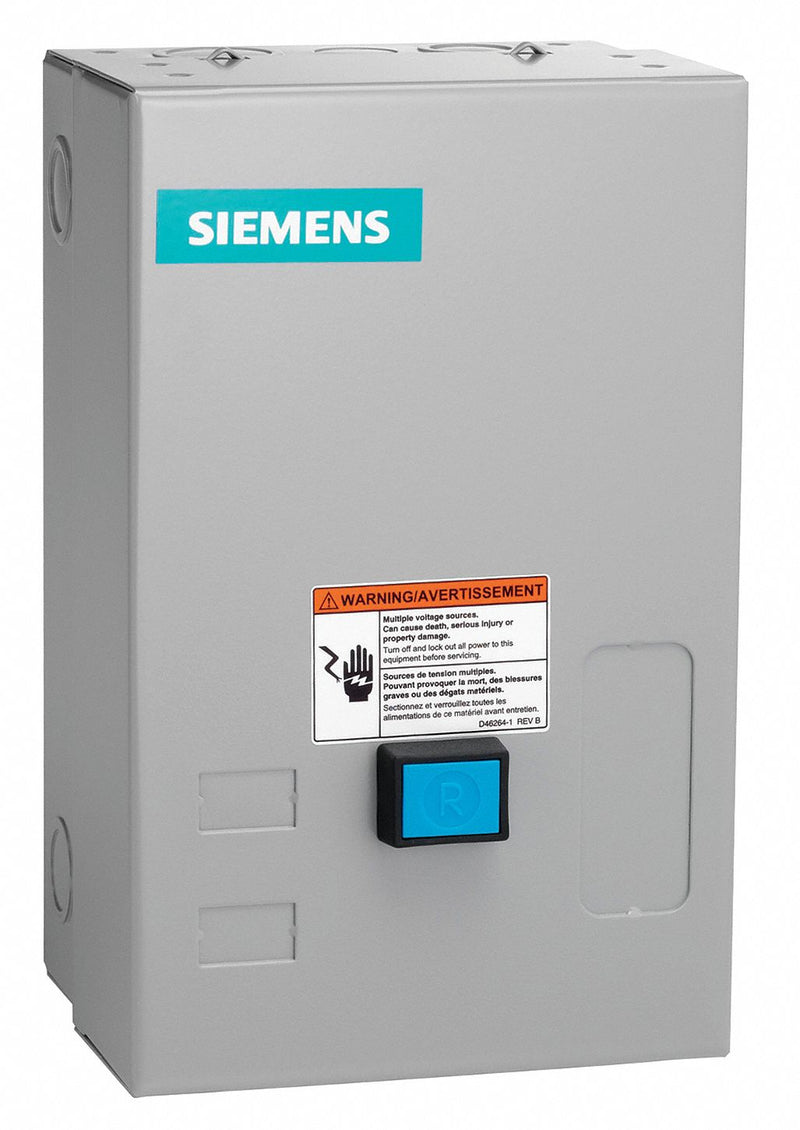

Siemens 14IUH32BA Magnetic Motor Starter, Non-Reversing, 3 Poles, NEMA Size 3-1/2, 115 A

Siemens 14IUH32BA Magnetic Motor Starter, Non-Reversing, 3 Poles, NEMA Size 3-1/2, 115 A

UPC: 040892541175 | Harmonization / Schedule B : 8536.50.4000

Country of Origin: United States | Shipping Weight: 25.85 lbs

$4,272.70 - $4,272.70
$4,272.70
$4,272.70 - $4,272.70
$4,272.70

NEMA Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 200 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 50 A, Trip Class 5/10/20/30, Series FVNR, Number of Poles 3, Number of Auxillary Contacts 1, Phase Three, Mounting Style Surface, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC, Coil Voltage 110-120/220-240V AC

NEMA Size 3-1/2
Overall Width 12 in
Overall Depth 8 in
Mounting Hole Diameter 0.28 in
Overall Height 20 in
Auxiliary Contact Form 1NO
Coil Voltage 120V-240V AC
Number of Poles 3
Full Load Current - Inductive 200 A
Reversing Capability Non-Reversing
Terminal Connection Type Screw
Number of Auxillary Contacts 1
Standards CSA 22.2 No.14, NEMA ICS 2, UL 508
HP @ 3 Phase - 575V 75 hp
Minimum Operating Temperature -4 Degrees F
Response Time 14 to 19 msec (OFF-Delay Time), 26 to 41 msec (ON-Delay Time)
Mounting Style Surface
Mechanical Operating Durability 50,000,000
Overload Protection Type Electronic
NEMA Enclosure Rating 1
Horsepower @ Three Phase - 240V AC 40 hp
Maximum Voltage Rating 600V AC
Current AC 115 A
Starter Style NEMA
Frequency 60 Hz
Includes Auxiliary Contacts Yes
Horsepower @ Three Phase - 208V AC 30 hp
Maximum Operating Temperature 104 Degrees F
Minimum Overload Relay Current Setting 50 A
Phase Three
Maximum Overload Relay Current Setting 200 A
Mounting Postion Vertical
Auxiliary Contact Module Capacity 7
Trip Class 5/10/20/30
Horsepower @ Three Phase - 600V AC 75 hp
Series FVNR
Horsepower @ Three Phase - 480V AC 75 hp
Country of Origin United States
