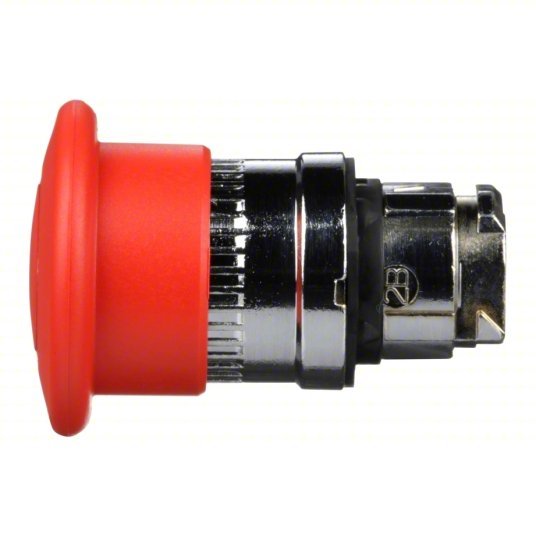

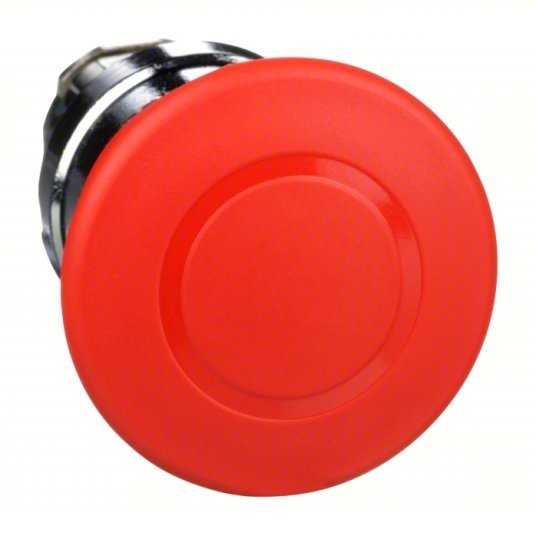

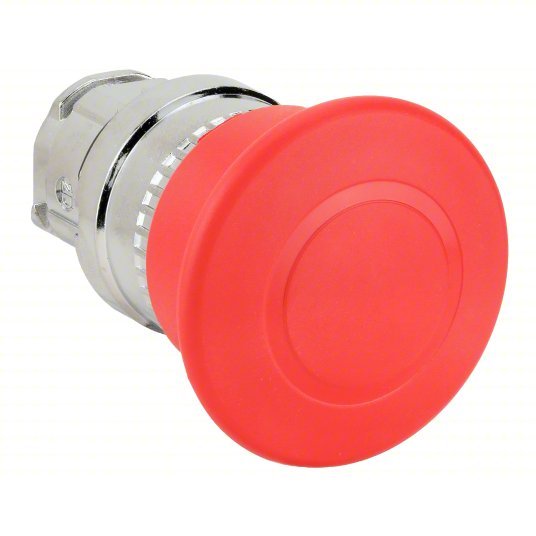

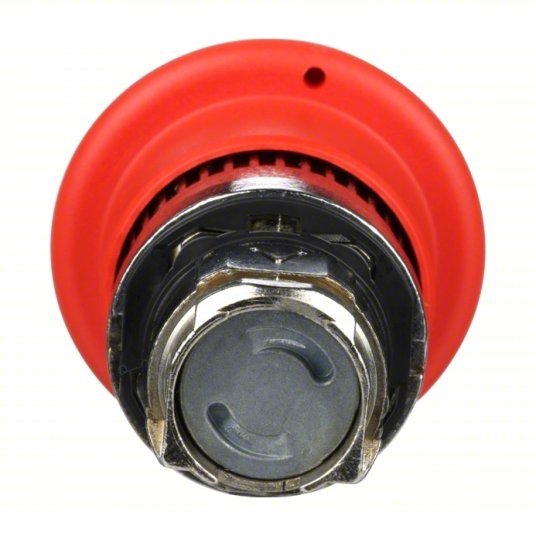

Schneider ZB4BT84 Push Button Operator 22 mm Size, Maintained Push / Maintained Pull, Red, Metal
UPC: 785901354369 | Harmonization (Schedule B): 8301.40.6030
SKU KV6HP73
Original price
$62.02
-
Original price
$62.02
Original price
$62.02
$62.02
-
$62.02
Current price
$62.02
Head Material | Aluminum-Zinc Alloy |
NEMA Rating | 1, 13, 2, 3, 4, 4X |
Type of Operator | 40mm Mushroom Head |
Color | Red |
Legend | No Legend |
Number of Operators | 1 |
Item | Push Button operator |
Bezel Material | Chrome Die Cast Aluminum |
Basic Material | Metal |
IP Rating | 66 |
Standards | CE, CSA, RoHS, UL |
Product Type | Push Button Operator |
Ambient Air Temperature For Operation | -40-70°C |
Electrical Shock Protection Class | class I IEC 61140 |
Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Protective Treatment | TH |
Ik Degree Of Protection | IK06 IEC 50102 |
Head Type | standard |
Ip Degree Of Protection | IP66 IEC 60529 || IP67 || IP69 || IP69K |
Reset | push-pull |
Device Presentation | basic element |
Device Short Name | ZB4 |
Electrical Composition Code | C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || C10 4 single and double front mounting |
Mechanical Durability | 300000 cycles |
Product Or Component Type | head for emergency switching off push-button |
Product Certifications | LROS (Lloyds register of shipping) || GL || DNV || CSA || UL Listed || BV |
Ambient Air Temperature For Storage | -40-70°C |
Shape Of Signaling Unit Head | round |
Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
Nema Degree Of Protection | NEMA 13 || NEMA 4X || NEMA 4 || NEMA 12 |
Operator Profile | red mushroom Ø 40 mm, unmarked |
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
