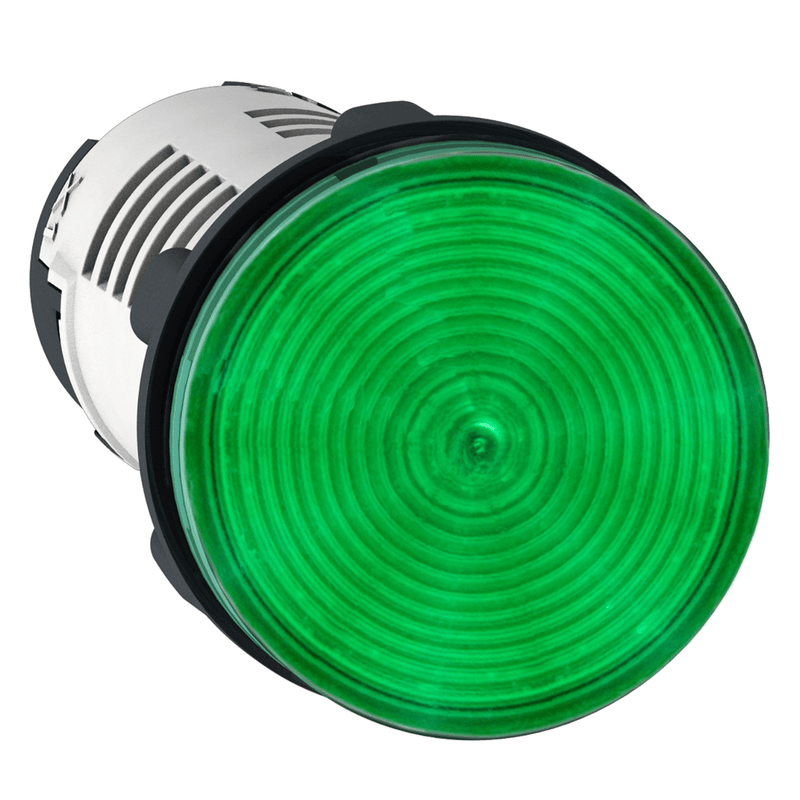

| Voltage |
230 to 240V AC |
| Color |
Green |
| Lamp Type |
LED |
| Shape |
Round |
| Terminal Connection |
Screw Clamp terminals |
| Contact Form |
(X1-X2)PL |
| Hz |
50/60 Hz |
| Standards |
CSA C22.2 No 14; JIS C8201-5-1; EN/IEC 60947-1; EN/IEC 60947-5-1; UL 508; JIS C8201-1 |
| NEMA Rating |
4, 12 |
| IP Rating |
IP20/IP65 |
| Average Life |
70000 hr |
| Type |
Steady Signal |
| Shock Resistance |
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Bulb Base |
integral LED |
| Product or Component Type |
pilot light |
| Current Consumption |
16...20 mA |
| Shape of Screw Head |
cross JIS No 1, cross Philips no 1, cross pozidriv No 1, slotted flat 4 mm, slotted flat 5.5 mm |
| Range of Product |
Harmony XB7 |
| Electromagnetic Compatibility |
disturbing field emission class B conforming to IEC 55011 |
| Ip Degree of Protection |
IP20 IEC 60529 rear face), IP65 IEC 60529 front face) |
| Protective Treatment |
TH |
| Supply Voltage Limits |
195-264 V AC |
| Device Short Name |
XB7 |
| Vibration Resistance |
5 gn 2-500 Hz)IEC 60068-2-6 |
| Service Life |
70000 h at rated voltage and 25°C |
| Nema Degree of Protection |
NEMA 4 UL 50 E, NEMA 12 UL 50 E |
| Ambient Air Temperature For Operation |
-25-70°C |
| Ambient Air Temperature For Storage |
-40-70°C |
| [Uimp] Rated Impulse Withstand Voltage |
6 kV IEC 60947-1 |

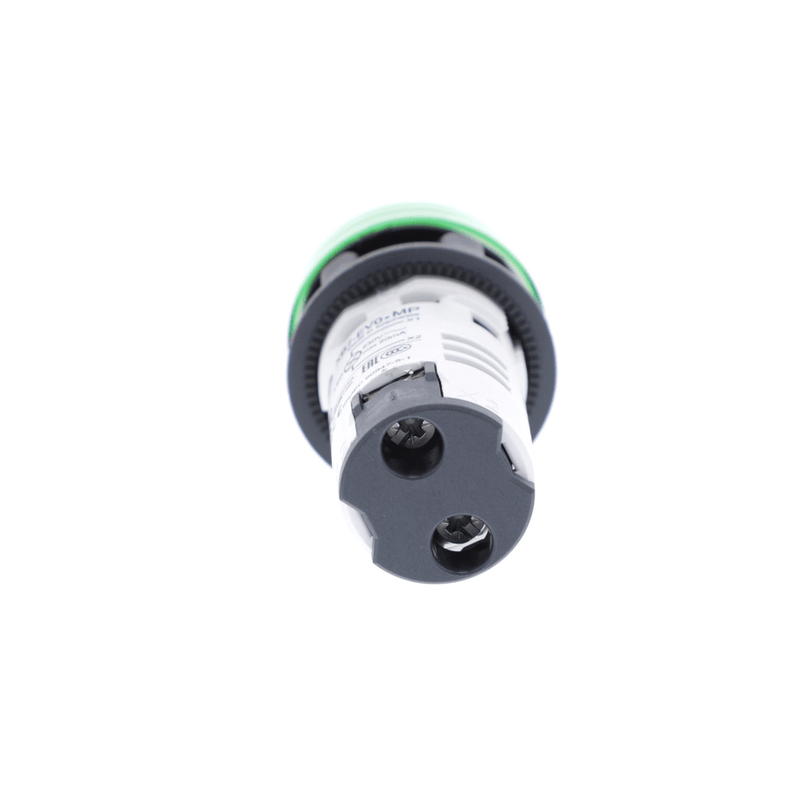

| Connections - Terminals |
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Device Mounting |
fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-5-1 |
| Overvoltage Category |
class II IEC 60536 |
| [Us] Rated Supply Voltage |
230...240 V AC 50/60 Hz |
| Fixing Mode |
fixing nut beneath head 2-2.4 N.m |
| Tightening Torque |
0.8-1.2 N.m IEC 60947-1 |
| Signalling Type |
steady |
| Fixing Center |
>= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm |
| Device Presentation |
monolithic product |
| [Ui] Rated Insulation Voltage |
250 V 3)IEC 60947-1 |
