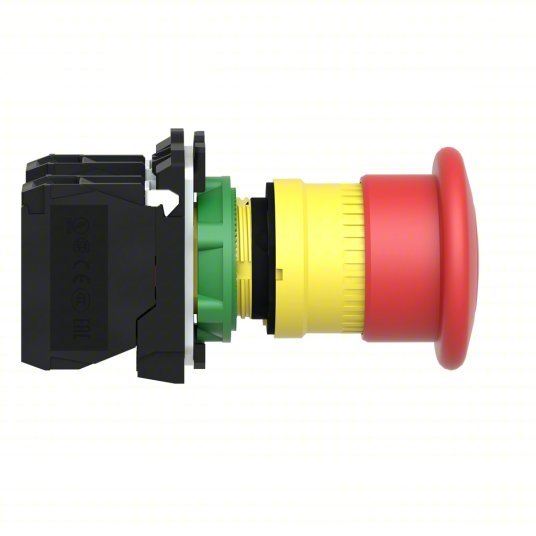

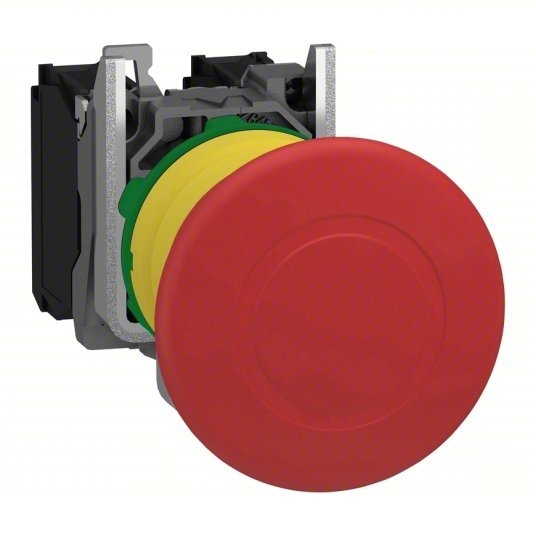

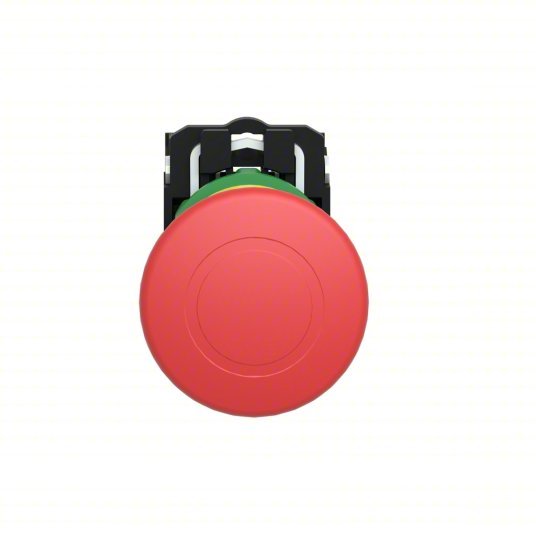

| Head Material |
Plastic |
| NEMA Rating |
1, 12, 13, 2, 3, 4, 4X |
| Type of Operator |
40mm Mushroom Head |
| Contact Form |
1NO/1NC |
| Color |
Red |
| Bezel |
Plastic |
| Legend |
No legend |
| Number of Operators |
1 |
| Contact Rating |
10A @ 600V AC |
| Item |
Emergency Stop Push Button |
| Bezel Material |
dark grey plastic |
| Material |
Plastic |
| Basic Material |
Plastic |
| Terminal Connection |
Screw Clamp |
| IP Rating |
65 |
| Standards |
CE, CSA, UL |
| Contacts Usage |
standard contacts |
| Operating Force |
50 N |
| Product Certifications |
BV || CSA || DNV || GL || UL Listed || LROS (Lloyds register of shipping) |
| Contact Operation |
slow-break |
| Protective Treatment |
TH |
| Electrical Reliability |
Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4 |
| Vibration Resistance |
5 gn 2-500 Hz)IEC 60068-2-6 |
| Contacts Material |
silver alloy (Ag/Ni) |
| Shape Of Screw Head |
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm |
| Ik Degree Of Protection |
IK03 IEC 50102 |
| Mechanical Durability |
300000 cycles |
| Fixing Collar Material |
plastic |
| Shape Of Signaling Unit Head |
round |
| Resistance To High Pressure Washer |
7000000 Pa 55°C 0.1 m |
| [Ith] Conventional Free Air Thermal Current |
10 A EN/IEC 60947-5-1 |
| Head Type |
standard |
| Device Presentation |
complete product |
| Ip Degree Of Protection |
IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Device Short Name |
XB5 |
| Ambient Air Temperature For Storage |
-40-70°C |
| [Ui] Rated Insulation Voltage |
600 V 3)EN 60947-1 |

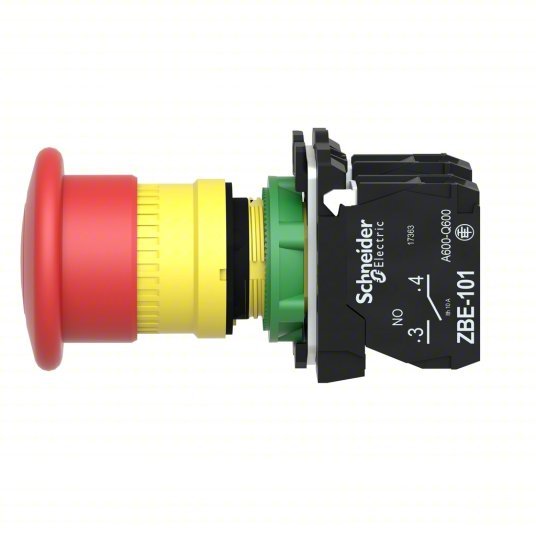

| Terminals Description Iso N°1 |

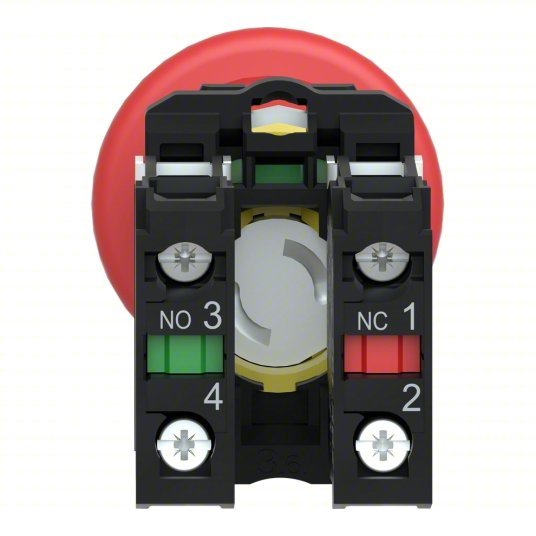

(13-14)NO || (11-12)NC |
| Positive Opening |
with EN/IEC 60947-5-1 appendix K |
| Overvoltage Category |
class II IEC 60536 |
| Operator Profile |
red mushroom Ø 40 mm, unmarked |
| Shock Resistance |
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Tightening Torque |
0.8-1.2 N.m EN 60947-1 |
| Reset |
push-pull |
| Short-Circuit Protection |
10 A cartridge fuse gG EN/IEC 60947-5-1 |
| [Uimp] Rated Impulse Withstand Voltage |
6 kV EN 60947-1 |
| Operating Travel |
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel) |
| Electrical Durability |
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Connections - Terminals |
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1 |
| Product Or Component Type |
emergency stop push-button || emergency switching off push-button |
| Nema Degree Of Protection |
NEMA 13 || NEMA 4X |
| [Ie] Rated Operational Current |
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| Ambient Air Temperature For Operation |
-40-70°C |
