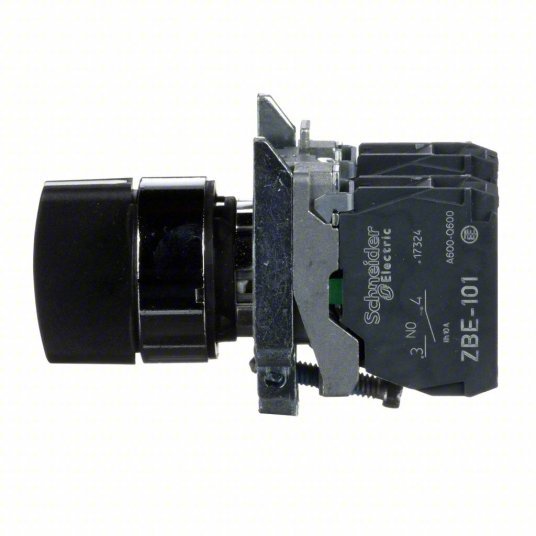

| Basic Material |
Metal |
| Type of Operator |
Lever |
| Contact Form |
2NO |
| Action |
Maintained / Maintained / Maintained |
| Operator Head Material |
Polyamide |
| Cam |
No Cam |
| Color |
Black |
| NEMA Rating |
1, 12, 13, 2, 3, 4 |
| Bezel Material |
Metal |
| Position |
3 |
| Key Removal |
No Key |
| Bezel Color |
Chrome |
| Standards |
CE Marked, CSA Certified File Number LR44087 Class 321103, UL Listed File Number E164353 CCN NKCR |
| NEMA Contact Rating Designation |
B600/Q600 |
| Switch Operation @ Position B |
OO |
| Switch Operation @ Position A |
XO |
| IP Rating |
65 |
| Contact Rating |
10A @ 600V AC |
| Switch Operation @ Position D |
No Fourth Position |
| Switch Operation @ Position C |
OX |
| Mechanical Durability |
1000000 cycles |
| Protective Treatment |
TH |
| Torque Value |
0.14 N.m NO changing electrical state |
| Ambient Air Temperature For Storage |
-40-70°C |
| Operator Profile |
black standard handle |
| Shape Of Signaling Unit Head |
round |
| Short-Circuit Protection |
10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Shock Resistance |
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Fixing Collar Material |
zamak |
| Product Certifications |
GL || UL || LROS (Lloyds register of shipping) || CSA || BV || DNV |
| Head Type |
standard |
| Operator Position Information |
3 positions +/- 45° |
| Connections - Terminals |
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1 |
| Positive Opening |
without |
| Overvoltage Category |
class I IEC 60536 |
| Resistance To High Pressure Washer |
7000000 Pa 55°C 0.1 m |
| Ip Degree Of Protection |
IP69 || IP69K || IP67 IEC 60529 |
| [Ith] Conventional Free Air Thermal Current |
10 A EN/IEC 60947-5-1 |
| Product Or Component Type |
selector switch |
| [Ui] Rated Insulation Voltage |
600 V 3)EN 60947-1 |
| Electrical Reliability |
λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4 |
| Device Short Name |
XB4 |
| Electrical Durability |
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C |
| Contacts Type And Composition |
2 NO |
| Device Presentation |
complete product |
| Shape Of Screw Head |
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm |
| Contacts Usage |
standard contacts |
| Contacts Material |
silver alloy (Ag/Ni) |
| Contact Operation |
slow-break |
| Vibration Resistance |
5 gn 2-500 Hz)IEC 60068-2-6 |
| [Ie] Rated Operational Current |
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| [Uimp] Rated Impulse Withstand Voltage |
6 kV EN 60947-1 |
| Nema Degree Of Protection |
NEMA 13 || NEMA 4X |
| Ambient Air Temperature For Operation |
-40-70°C |
| Tightening Torque |
0.8-1.2 N.m EN 60947-1 |
| Terminals Description Iso N°1 |
(23-24)NO || (13-14)NO |
| Rated Operational Current |
3 A 240 V, AC-15, A600 IEC 60947-5-1; 6 A 120 V, AC-15, A600 IEC 60947-5-1; 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1; 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1; 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1; 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Terminals Description ISO n°1 |
(23-24)NO; (13-14)NO |
| Rated Insulation Voltage |
600 V 3)IEC 60947-1 |
| Rated Impulse Withstand Voltage |
6 kV IEC 60947-1 |
| Conventional Free Air Thermal Current |
10 A IEC 60947-5-1 |
