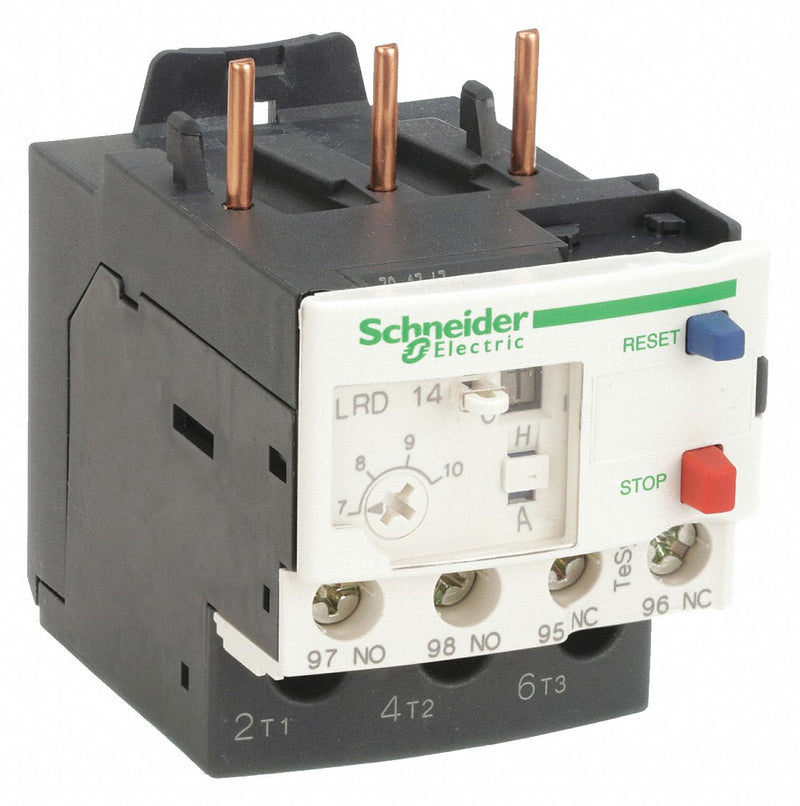

Schneider LRD14 Overload Relay, Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity, 7 A – 10 A

Schneider LRD14 Overload Relay, Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity, 7 A – 10 A

UPC: 785901206774 | Harmonization / Schedule B : 8537.10.9090

Country of Origin: Korea, Republic of | Shipping Weight: 0.3 lbs

$139.67 - $139.67
$139.67
$139.67 - $139.67
$139.67

TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 9 amp through 38 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 7 to 10 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine).

Width 1.77
Overall Height - Relay 3.62 in
Depth 2.75
Height 3.62"
Body Height - Relay 3.62 in
Body Depth 2.76 in
Body Width 1.77 in
Overall Height 2.6 in
Body Height 2.6 in
Auxiliary Contact Form 1NC/1NO
Minimum Overload Relay Current Setting 7:00 AM
Maximum Overload Relay Current Setting 10:00 AM
Trip Class 10A
Overload Protection Type Thermal
Maximum Voltage Rating 690V AC
Standards CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 50495, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, REACH, RoHS, UL 60947-4-1, UL 60947-5-1
For Use With LC1D09 thru LC1D32 Contactor
Trip Class - Overload 10
Number of Poles 3
Sensing Method Bimetallic
Features Single Phase Sensitivity; Differential
Use With - Contactors and Starters Mfr. Series LC1D09 to LC1D32 Contactors
Starter Type IEC
Product Certifications IEC || UL || CSA || CCC || EAC || BV || RINA || DNV-GL || LROS (Lloyds register of shipping) || ATEX INERIS || UKCA
Device Short Name LRD
Flame Retardance V1 conforming to UL 94
Associated Fuse Rating 4 A gG signalling circuit || 4 A BS signalling circuit
Mechanical Robustness vibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7
Network Frequency 0 to 400 Hz
Ambient Air Temperature For Storage -60-70°C
Permissible Current 3 A 120 V AC-15 signalling circuit || 0.22 A 125 V DC-13 signalling circuit
Product Name TeSys LRD || TeSys Deca
Product Or Component Type differential thermal overload relay
Tripping Threshold 1.14 +/- 0.06 Ir IEC 60947-4-1
Control Type Red push-button stop || Blue push-button reset
Climatic Withstand IACS E10
Ambient Air Temperature For Operation -20-60°C without derating IEC 60947-4-1
Product Compatibility LC1D09 || LC1D12 || LC1D38 || LC1D32 || LC1D25 || LC1D18
Network Type AC || DC
Tightening Torque control circuit 1.7 N.m screw clamp terminals || power circuit 1.7 N.m screw clamp terminals
Dielectric Strength 1.89 kV 50 Hz IEC 60947-1
Relay Application motor protection
Thermal Protection Adjustment Range 7-10 A
Thermal Overload Class class 10A IEC 60947-4-1
Phase Failure Sensitivity tripping current 130 % of Ir on two phase, the last one at 0
Range TeSys || TeSys Deca
Connections - Terminals control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit screw clamp terminals 1 1.5-10 mm² flexible without cable end || power circuit screw clamp terminals 1 1-4 mm² flexible with cable end || power circuit screw clamp terminals 1 1-6 mm² solid without cable end
Reset Type Manual
IP Rating IP20
Compatible with Series TeSys Deca
Mounting Style Direct To Contactor
Maximum Operating Temperature 140 Degrees F
Relay Style IEC
Terminal Connection Type Screw Clamp Terminals
Minimum Operating Temperature -4 Degrees F
Rated Insulation Voltage Power circuit 600 V CSA; Power circuit 600 V UL; Power circuit 690 V IEC 60947-4-1
Rated Operational Voltage 690 V AC 0 to 400 Hz power circuit IEC 60947-4-1
Conventional Free Air Thermal Current 5 A signalling circuit
Trip Clss 10A
Country of Origin Korea, Republic of
