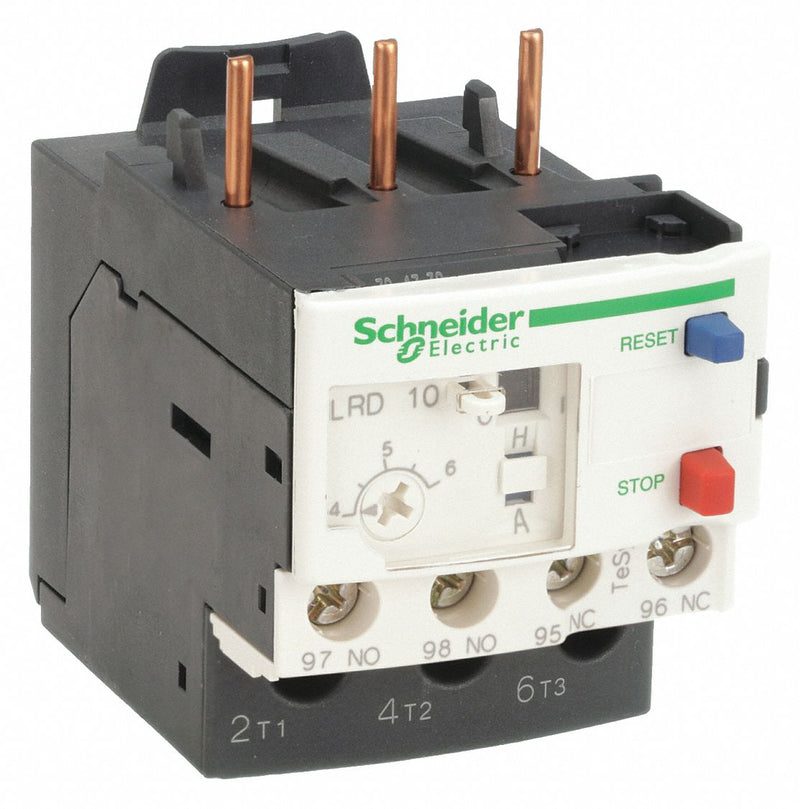

Schneider LRD10 Overload Relay, Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity, 4 A – 6 A

Schneider LRD10 Overload Relay, Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity, 4 A – 6 A

UPC: 785901213239 | Harmonization / Schedule B : 8536.41.0060

Country of Origin: Korea, Republic of | Shipping Weight: 0.3 lbs

$147.70 - $147.70
$147.70
$147.70 - $147.70
$147.70

TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 9 amp through 38 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 4 to 6 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine).

Overall Height - Relay 3.62 in
Width 1.77
Height 3.62"
Body Height - Relay 3.62 in
Depth 2.75
Overall Height 2.6 in
Body Width 1.77 in
Body Depth 2.76 in
Body Height 2.6 in
Auxiliary Contact Form 1NC/1NO
Minimum Overload Relay Current Setting 4:00 AM
Maximum Overload Relay Current Setting 6:00 AM
Trip Class 10A
Overload Protection Type Thermal
Maximum Voltage Rating 690V AC
Standards CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 50495, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, REACH, RoHS, UL 60947-4-1, UL 60947-5-1
For Use With LC1D09 thru LC1D32 Contactor
Sensing Method Bimetallic
Use With - Contactors and Starters Mfr. Series LC1D09 to LC1D32 Contactors
Number of Poles 3
Trip Class - Overload 10
Features Single Phase Sensitivity
Starter Type IEC
Mechanical Robustness vibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7
Dielectric Strength 1.89 kV 50 Hz IEC 60947-1
Associated Fuse Rating 4 A gG signalling circuit || 4 A BS signalling circuit
Product Compatibility LC1D09 || LC1D32 || LC1D38 || LC1D12 || LC1D18 || LC1D25
Device Short Name LRD
Thermal Protection Adjustment Range 4-6 A
Tightening Torque control circuit 1.7 N.m screw clamp terminals || power circuit 1.7 N.m screw clamp terminals
Permissible Current 3 A 120 V AC-15 signalling circuit || 0.22 A 125 V DC-13 signalling circuit
Product Or Component Type differential thermal overload relay
Network Frequency 0 to 400 Hz
Relay Application motor protection
Connections - Terminals control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit screw clamp terminals 1 1.5-10 mm² flexible without cable end || power circuit screw clamp terminals 1 1-4 mm² flexible with cable end || power circuit screw clamp terminals 1 1-6 mm² solid without cable end
Range TeSys || TeSys Deca
Climatic Withstand IACS E10
Flame Retardance V1 conforming to UL 94
Product Name TeSys LRD || TeSys Deca
Phase Failure Sensitivity tripping current 130 % of Ir on two phase, the last one at 0
Ambient Air Temperature For Storage -60-70°C
Ambient Air Temperature For Operation -20-60°C without derating IEC 60947-4-1
Tripping Threshold 1.14 +/- 0.06 Ir IEC 60947-4-1
Network Type DC || AC
Control Type Red push-button stop || Blue push-button reset
Product Certifications IEC || UL || CSA || CCC || EAC || BV || RINA || DNV-GL || LROS (Lloyds register of shipping) || ATEX INERIS || UKCA
Thermal Overload Class class 10A IEC 60947-4-1
Terminal Connection Type Screw Clamp Terminals
Relay Style IEC
Reset Type Manual
IP Rating IP20
Minimum Operating Temperature -4 Degrees F
Mounting Style Direct To Contactor
Maximum Operating Temperature 140 Degrees F
Compatible with Series TeSys Deca
Rated Insulation Voltage Power circuit 600 V CSA; Power circuit 600 V UL; Power circuit 690 V IEC 60947-4-1
Rated Operational Voltage 690 V AC 0 to 400 Hz power circuit IEC 60947-4-1
Conventional Free Air Thermal Current 5 A signalling circuit
Trip Clss 10A
Country of Origin Korea, Republic of
