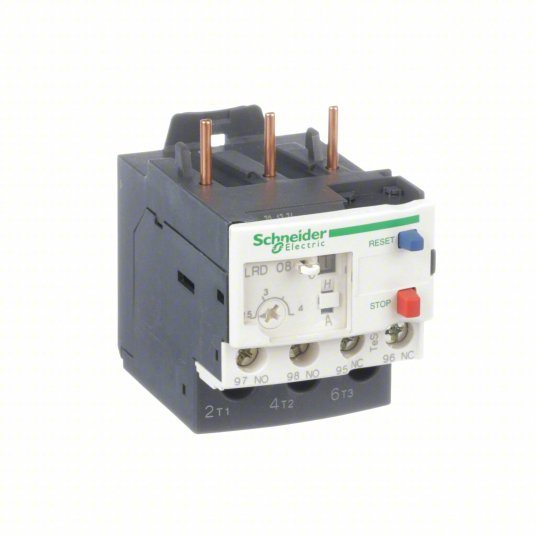

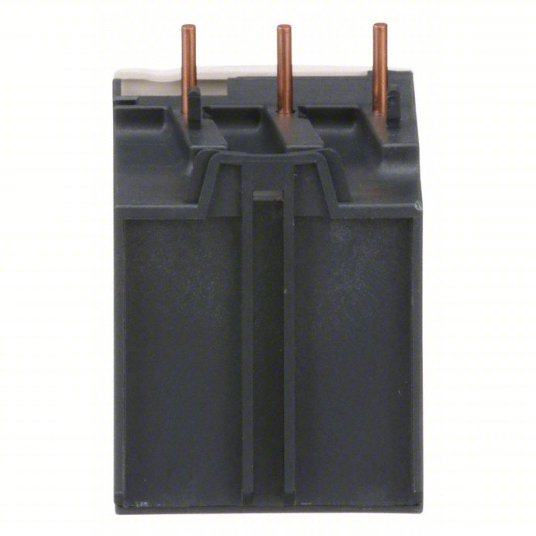

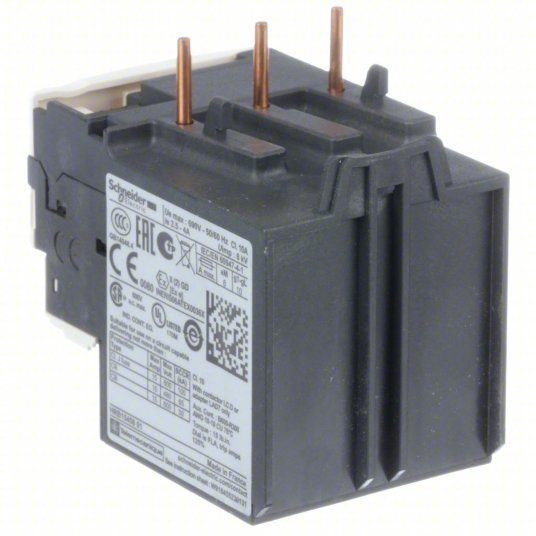

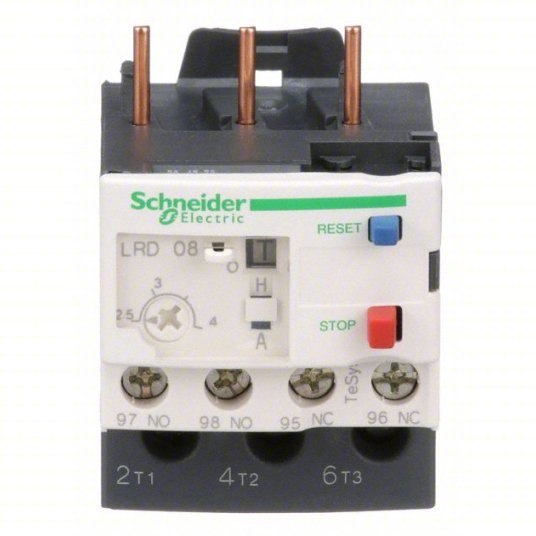

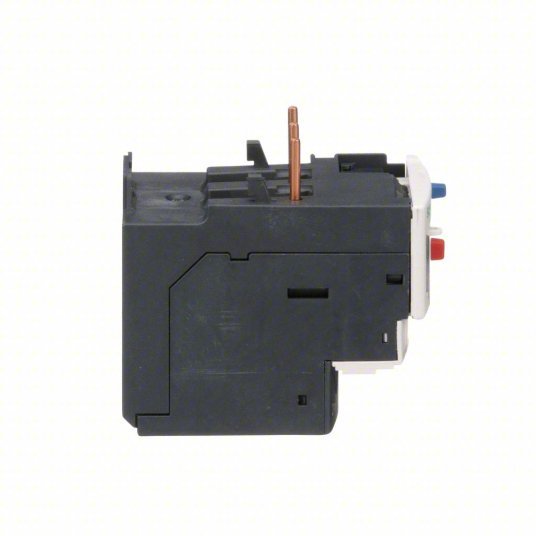

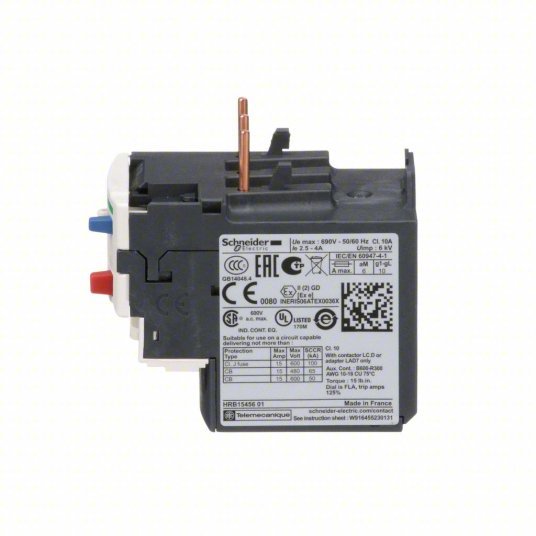

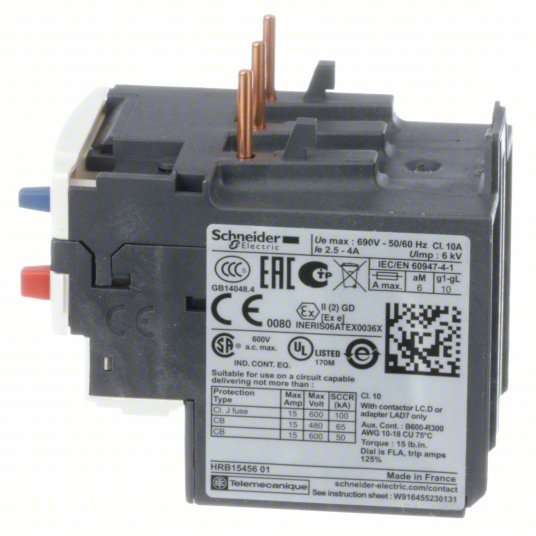

Schneider LRD08 Overload Relay Thermal Protection, 3 Poles, 2.5 A – 4 A

UPC: 785901206750 | Harmonization (Schedule B): 8536.30.4000

SKU KV3EA44
Original price $107.97 - Original price $107.97
Original price
$107.97
$107.97 - $107.97
Current price $107.97
Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 4 A, Minimum Overload Relay Current Setting 2.5 A, Trip Class 10A, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Manual, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series TeSys Deca, Relay Style IEC, Overload Protection Type Thermal
Current Range 2.50 to 4.00A
Use With - Contactors and Starters Mfr. Series LC1D09 to LC1D32 Contactors
Overload Relay Current Range 2.5 to 4.0A
Trip Class - Overload 10
Number of Poles 3
Reset Type - Relay Manual
Sensing Method Bimetallic
Standards CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 50495, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, REACH, RoHS, UL 60947-4-1, UL 60947-5-1
Features Single Phase Sensitivity
Trip Class 10A
For Use With LC1D09 thru LC1D32 Contactor
Starter Type IEC
Relay Application motor protection
Control Type Red push-button stop || Blue push-button reset
Flame Retardance V1 conforming to UL 94
Product Certifications IEC || UL || CSA || CCC || EAC || BV || RINA || DNV-GL || LROS (Lloyds register of shipping) || ATEX INERIS || UKCA
Network Frequency 0 to 400 Hz
Ambient Air Temperature For Operation -20-60°C without derating IEC 60947-4-1
Product Compatibility LC1D12 || LC1D09 || LC1D25 || LC1D38 || LC1D32 || LC1D18
[Ui] Rated Insulation Voltage power circuit 600 V CSA || power circuit 600 V UL || power circuit 690 V IEC 60947-4-1
Tightening Torque control circuit 1.7 N.m screw clamp terminals || power circuit 1.7 N.m screw clamp terminals
[Uimp] Rated Impulse Withstand Voltage 6 kV
Connections - Terminals control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit screw clamp terminals 1 1.5-10 mm² flexible without cable end || power circuit screw clamp terminals 1 1-4 mm² flexible with cable end || power circuit screw clamp terminals 1 1-6 mm² solid without cable end
Device Short Name LRD
Temperature Compensation -20-60°C
Ip Degree Of Protection IP20 conforming to IEC 60529
Dielectric Strength 1.89 kV 50 Hz IEC 60947-1
Product Name TeSys LRD || TeSys Deca
Network Type AC || DC
Ambient Air Temperature For Storage -60-70°C
[Ue] Rated Operational Voltage 690 V AC 0 to 400 Hz power circuit IEC 60947-4-1
Range TeSys || TeSys Deca
Thermal Protection Adjustment Range 2.5-4 A
[Ith] Conventional Free Air Thermal Current 5 A signalling circuit
Product Or Component Type differential thermal overload relay
Tripping Threshold 1.14 +/- 0.06 Ir IEC 60947-4-1
Mechanical Robustness vibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7
Associated Fuse Rating 4 A gG signalling circuit || 4 A BS signalling circuit
Thermal Overload Class class 10A IEC 60947-4-1
Mounting Support plate, with specific accessories || rail, with specific accessories || under contactor
Climatic Withstand IACS E10
Auxiliary Contact Composition 1 NO + 1 NC
Phase Failure Sensitivity tripping current 130 % of Ir on two phase, the last one at 0
Permissible Current 3 A 120 V AC-15 signalling circuit || 0.22 A 125 V DC-13 signalling circuit
Terminal Connection Type Screw Clamp Terminals
Mounting Style Direct To Contactor
Maximum Operating Temperature 140 Degrees F
Reset Type Manual
Compatible with Series TeSys Deca
IP Rating IP20
Includes Mounting Hardware Not Applicable
Minimum Overload Relay Current Setting 2.5 A
Minimum Operating Temperature -4 Degrees F
Maximum Overload Relay Current Setting 4 A
Maximum Voltage Rating 690V AC
Overload Protection Type Thermal
Auxiliary Contact Form 1NO/1NC
Relay Style IEC
Rated Insulation Voltage Power circuit 600 V CSA; Power circuit 600 V UL; Power circuit 690 V IEC 60947-4-1
