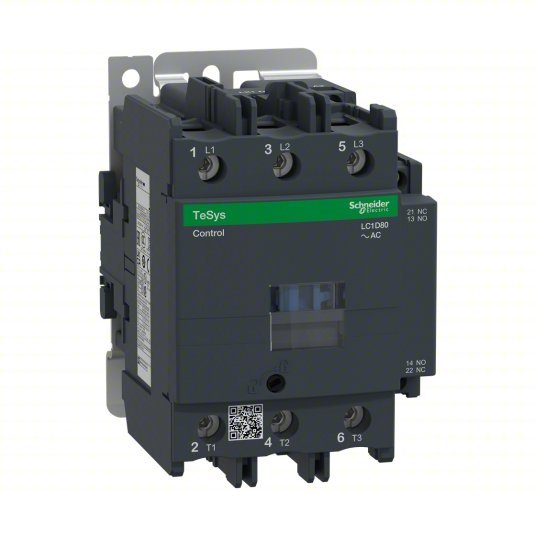

| Full Load Amps-Inductive |
80 A |
| Full Load Amps-Resistive |
125 A |
| Number of Poles |
3 |
| Coil Volts |
480 V AC |
| Reversing |
No |
| HP @ 1 Phase - 120V |
7 1/2 hp |
| HP @ 1 Phase - 240V |
15 hp |
| HP @ 3 Phase - 208V |
30 hp |
| HP @ 3 Phase - 240V |
30 hp |
| HP @ 3 Phase - 480V |
60 hp |
| HP @ 3 Phase - 575V |
60 hp |
| Aux. Contact Configuration |
1NO/1NC |
| Enclosure NEMA Rating |
No Enclosure |
| Hz |
50/60 |
| Auxiliary Contact Form |
1NO/1NC |
| Standards |
BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed |
| HP @ 1 Phase - 230V |
15 |
| Action |
Non-Reversing |
| Series |
TeSys Deca |
| Rated Insulation Volts |
600/1000V (Power Circuit), 600/690V (Signalling Circuit) |
| Environmental Attributes |
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Rated Voltage |
690V AC, 300V DC |
| Features |
Without Built-In Suppressor Module |
| Fuse Amps |
10 A (Signalling Circuit), 200 A (Type 1 Power Circuit), 160 A (Type 2 Power Circuit) |
| Vibration Resistance |
3 G (Contactor Closed), 2 G (Contactor Open) |
| Impulse Withstand Voltage |
8 kV |
| Includes Protective Cover |
Yes |
| Max. Temperature |
850°C |
| Rated Breaking Capacity |
1100 A @ 440V |
| Overvoltage Category |
CAT III |
| Mechanical Durability |
10 Mcycles |
| Rated Short-Time Withstand Current |
640 A (at 40°C for 10 s Power Circuit), 990 A (at 40°C for 1 s Power Circuit), 135 A (at 40°C for 10 min Power Circuit), 320 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Application |
Motor Control, Resistive Load |
| Non-Overlap Time |
1.5 ms |
| Mounts On |
Plate, Rail |
| Net Weight |
1.59 kg |
| Fire Rating |
UL 94 V1 |
| Inrush VA |
220 VA |
| Control Circuit Voltage Limits |
Operational AC: 0.85 to 1.1 Uc (at -40 to 55°C 60 Hz), 1 to 1.1 Uc (at 55 to 70°C 60 Hz); Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 60 Hz) |
| Watts Loss |
6 to 10W |
| Impedance |
0.8 mOhm |
| Rated Making Capacity |
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1100 A @ 440V (Power Circuit) |
| Operating Speed |
3600 cycles per hr |
| Switching Current |
5 mA (Signalling Circuit) |
| Hold VA |
22 VA |
| Electrical Durability |
0.8 Mcycles (125 A, AC-1, Less than 440 V); 1.5 Mcycles (80 A, AC-3, Less than 440 V); 1.5 Mcycles (80 A, AC-3e, Less than 440 V) |
| Max. Operating Watts |
22 kW (at 220 to 230V AC 50/60 Hz AC-3), 37 kW (at 380 to 400V AC 50/60 Hz AC-3), 45 kW (at 415 to 440V AC 50/60 Hz AC-3), 55 kW (at 500V AC 50/60 Hz AC-3), 45 kW (at 660 to 690V AC 50/60 Hz AC-3), 15 kW (at 400V AC 50/60 Hz AC-4), 22 kW (at 220 to 230V AC 50/60 Hz AC-3e), 37 kW (at 380 to 400V AC 50/60 Hz AC-3e), 45 kW (at 415 to 440V AC 50/60 Hz AC-3e), 55 kW (at 500V AC 50/60 Hz AC-3e), 45 kW (at 660 to 690V AC 50/60 Hz AC-3e) |
| Tightening Torque |
1.2 Nm (Control Circuit), 12 Nm (Power Circuit) |
| Signalling Circuit Frequency |
25 to 400 Hz |
| Operating Time |
20 to 35 ms (Closing), 6 to 20 ms (Opening) |
| Thermal Amperage |
10 A (at 60°C Signalling Circuit), 125 A (at 60°C Power Circuit) |
| Electrical Connection |
Screw Clamp Terminals |
| Switching Voltage |
17 V (Signalling Circuit) |
| Shock Resistance |
10 G for 11 ms (Contactor Closed), 8 G for 11 ms (Contactor Open) |
| Insulation Resistance Range |
Greater Than 10 MOhms (Signalling Circuit) |
| IP Rating |
IP20 |
| Mounting Style |
DIN Rail, Plate |
| Number of Normally Open Main Contacts |
3 |
| Phase |
Three |
| Number of Auxillary Contacts |
2 |
| NEMA Enclosure Rating |
No Enclosure |
| Embedded Surge Suppressor |
No |
| Horsepower @ Three Phase - 240V AC |
30 hp |
| Full Load Current - Inductive |
80 A |
| Terminal Connection Type |
Screw Clamp Terminals |
| Horsepower @ Single Phase - 120V AC |
7 1/2 hp |
| Frequency |
60 Hz |
| Electrical Operating Durability |
1,500,000, 800,000 |
| Coil Voltage |
480V AC |
| Horsepower @ Three Phase - 600V AC |
60 hp |
| Maximum Voltage Rating |
300V DC |
| Includes Auxiliary Contacts |
Yes |
| Horsepower @ Three Phase - 208V AC |
30 hp |
| Horsepower @ Three Phase - 480V AC |
60 hp |
| Reversing Capability |
Non-Reversing |
| Horsepower @ Single Phase - 240V AC |
15 hp |
| Full Load Current - Resistive |
125 A |
| Minimum Operating Temperature |
-40 Degrees F |
| Resistance Properties |
Fire Resistant, Insulation Resistant |
| Maximum Operating Temperature |
140 Degrees F |
| Contactor Style |
IEC |
| Mechanical Operating Durability |
10,000,000 |
