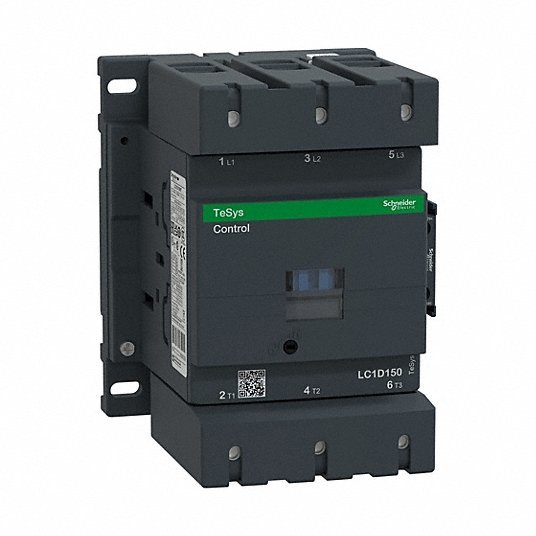

| Full Load Amps-Resistive |
200 A |
| Number of Poles |
3 |
| Coil Volts |
208 V AC |
| Reversing |
No |
| HP @ 3 Phase - 208V |
40 hp |
| HP @ 3 Phase - 575V |
125 hp |
| HP @ 3 Phase - 240V |
50 hp |
| Enclosure NEMA Rating |
No Enclosure |
| HP @ 3 Phase - 480V |
100 hp |
| Aux. Contact Configuration |
1NO/1NC |
| Hz |
50/60 |
| Auxiliary Contact Form |
1NO/1NC |
| Standards |
BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed |
| Action |
Non-Reversing |
| Series |
TeSys Deca |
| Signaling Circuit Frequency |
25 to 400 Hz |
| Overvoltage Category |
CAT III |
| Watts Loss |
3 to 4.5W |
| Features |
Built-In Bi-Directional Peak Limiting Diode Suppressor |
| Max. Operating Watts |
40 kW (at 220 to 230V AC 50/60 Hz AC-3), 75 kW (at 380 to 400V AC 50/60 Hz AC-3), 80 kW 415 to (at 440V AC 50/60 Hz AC-3), 90 kW (at 500V AC 50/60 Hz AC-3), 100 kW (at 660 to 690V AC 50/60 Hz AC-3), 75 kW (at 1000V AC 50/60 Hz AC-3), 22 kW (at 400V AC 50/60 Hz AC-4), 40 kW (at 220 to 230V AC 50/60 Hz AC-3e), 75 kW (at 380 to 400V AC 50/60 Hz AC-3e), 80 kW (at 415 to 440V AC 50/60 Hz AC-3e), 90 kW (at 500V AC 50/60 Hz AC-3e), 100 kW (at 660 to 690V AC 50/60 Hz AC-3e), 75 kW (at 1000V AC 50/60 Hz AC-3e) |
| Mechanical Durability |
8 Mcycles |
| Vibration Resistance |
4 G (Contactor Closed), 2 G (Contactor Open) |
| Operating Speed |
1200 cycles per hr |
| Rated Insulation Volts |
600/1000V (Power Circuit), 600/690V (Signaling Circuit) |
| Shock Resistance |
15 G for 11 ms (Contactor Closed), 6 G for 11 ms (Contactor Open) |
| Mounts On |
Plate, Rail |
| Rated Making Capacity |
140 A (AC Signaling Circuit), 250 A (DC Signaling Circuit), 1660 A @ 440V (Power Circuit) |
| Rated Short-Time Withstand Current |
250 A (at 40°C for 10 min Power Circuit), 580 A (at 40°C for 1 min Power Circuit), 1200 A (at 40°C for 10 s Power Circuit), 1400 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signaling Circuit), 120 A (For 500 ms Signaling Circuit), 140 A (For 100 ms Signaling Circuit) |
| Electrical Durability |
0.85 Mcycles (150 A, AC-3, Less than 440 V); 1 Mcycles (200 A, AC-1, Less than 440 V); 0.85 Mcycles (150 A, AC-3e, Less than 440 V) |
| Fuse Amps |
10 A (Signaling Circuit), 315 A (Type 1 Power Circuit), 250 A (Type 2 Power Circuit) |
| Electrical Connection |
Screw Clamp Terminals |
| Switching Current |
5 mA (Signaling Circuit) |
| Hold VA |
2 to 18 VA |
| Inrush VA |
280 to 350 VA |
| Environmental Attributes |
Mercury Free, PVC Free, Pollution Degree 3 |
| Includes Protective Cover |
Yes |
| Net Weight |
2.5 kg |
| Operating Time |
20 to 35 ms (Closing), 40 to 75 ms (Opening) |
| Fire Rating |
UL 94 V1 |
| Impulse Withstand Voltage |
8 kV |
| Rated Voltage |
1000V AC, 300V DC |
| Control Circuit Voltage Limits |
Drop-Out AC: 0.3 to 0.5 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.15 Uc (at -40-55°C 50/60 Hz), 1 to 1.15 Uc (at 55-70°C 50/60 Hz) |
| IP Rating |
IP20 |
| Rated Breaking Capacity |
1400 A @ 440V |
| Tightening Torque |
1.2 Nm (Control Circuit), 12 Nm (Power Circuit) |
| Application |
Motor Control, Resistive Load |
| Max. Temperature |
850°C |
| Switching Voltage |
17 V (Signaling Circuit) |
| Impedance |
0.6 mOhm |
| Non-Overlap Time |
1.5 ms |
| Insulation Resistance Range |
Greater Than 10 MOhms (Signaling Circuit) |
| Thermal Amperage |
200 A (at 60°C Power Circuit) |
| Resistance Properties |
Fire Resistant, Insulation Resistant |
| Embedded Surge Suppressor |
Yes |
| Phase |
Three |
| Terminal Connection Type |
Screw Clamp Terminals |
| Contactor Style |
IEC |
| Reversing Capability |
Non-Reversing |
| Electrical Operating Durability |
1,000,000, 850,000 |
| Mechanical Operating Durability |
8,000,000 |
| Frequency |
50/60 Hz |
| Maximum Operating Temperature |
140 Degrees F |
| Number of Auxillary Contacts |
2 |
| Full Load Current - Inductive |
150 A |
| Horsepower @ Three Phase - 480V AC |
100 hp |
| Horsepower @ Three Phase - 240V AC |
50 hp |
| Mounting Style |
DIN Rail, Plate |
| Number of Normally Open Main Contacts |
3 |
| Horsepower @ Three Phase - 208V AC |
40 hp |
| Includes Auxiliary Contacts |
Yes |
| Minimum Operating Temperature |
-40 Degrees F |
| Horsepower @ Three Phase - 600V AC |
125 hp |
| Maximum Voltage Rating |
1000V AC |
| Full Load Current - Resistive |
200 A |
| Horsepower @ Single Phase - 240V AC |
3 hp |
| NEMA Enclosure Rating |
No Enclosure |
| Coil Voltage |
208V AC |
| Coil Technology |
Built-in bidirectional peak limiting diode suppressor |
| Protective Cover |
With |
| Minimum Switching Voltage |
17 V for signaling circuit |
| Maximum Operating Rate |
1200 cyc/h 140°F (60°C) |
| Control Circuit Voltage |
208 V AC 50/60 Hz |
| Contactor Application |
Resistive load; Motor control |
| Inrush Power in VA |
280 to 350 VA 60 Hz cos phi 0.9 (at 68°F (20°C)); 280 to 350 VA 50 Hz cos phi 0.9 (at 68°F (20°C)) |
| Pollution Degree |
3 |
| Product Certifications |
GL; GOST; DNV; LROS (Lloyds register of shipping); CSA; BV; RINA; CCC; UL; UKCA; CE |
| Rated Impulse Withstand Voltage |
8 kV IEC 60947 |
| Heat Dissipation |
3 to 4.5 W at 50/60 Hz |
| Flame Retardance |
V1 conforming to UL 94 |
| Power Dissipation Per Pole |
24 W AC-1; 13.5 W AC-3; 13.5 W AC-3e |
| Poles Description |
3P |
| Fire Resistance |
1562°F (850°C) IEC 60695-2-1 |
| Rated Insulation Voltage |
Power circuit 600 V CSA; Power circuit 600 V UL; Power circuit 1000 V IEC 60947-4-1; Signaling circuit 690 V IEC 60947-1; Signaling circuit 600 V CSA; Signaling circuit 600 V UL |
| IRMS Rated Making Capacity |
140 A AC for signaling circuit conforming to IEC 60947-5-1; 250 A DC for signaling circuit conforming to IEC 60947-5-1; 1660 A at 440 V for power circuit conforming to IEC 60947 |
| Rated Operational Current |
200 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 150 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 150 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit |
| Conventional Free Air Thermal Current |
200 A (at 140°F (60°C)) for power circuit |
| Average Impedance |
0.6 mOhm - Ith 200 A 50 Hz for power circuit |
| Operating Altitude |
0 to 9842.52 ft (0 to 3000 m) |
| Rated Operational Voltage |
Power circuit Less than or Equal to 1000 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC |
| Auxiliary Contact Composition |
1 NO + 1 NC |
| Product Or Component Type |
Contactor |
| Connections - Terminals |
Control circuit: screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 0.00 to 0.00 in² (1 to 2.5 mm²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 0.00 to 0.00 in² (1 to 2.5 mm²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 0.00 to 0.00 in² (1 to 2.5 mm²) - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²) - cable stiffness: solid without cable end; Power circuit: connector 1 0.02 to 0.19 in² (10 to 120 mm²) - cable stiffness: flexible without cable end; Power circuit: connector 2 0.02 to 0.08 in² (10 to 50 mm²) - cable stiffness: flexible without cable end; Power circuit: connector 1 0.02 to 0.19 in² (10 to 120 mm²) - cable stiffness: flexible with cable end; Power circuit: connector 2 0.02 to 0.08 in² (10 to 50 mm²) - cable stiffness: flexible with cable end; Power circuit: connector 1 0.02 to 0.19 in² (10 to 120 mm²) - cable stiffness: solid without cable end; Power circuit: connector 2 0.02 to 0.08 in² (10 to 50 mm²) - cable stiffness: solid without cable end |
| Permissible Ambient Air Temperature Around The Device |
-40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating |
| Associated Fuse Rating |
10 A gG for signaling circuit conforming to IEC 60947-5-1; 315 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 250 A gG at Less than or Equal to 690 V coordination type 2 for power circuit |
| Minimum Switching Current |
5 mA for signaling circuit |
| Pole Contact Composition |
3 NO |
| Control Circuit Type |
AC 50/60 Hz |
| Maximum Horse Power Rating |
40 hp at 200/208 V AC 50/60 Hz for 3 phase motors; 50 hp at 230/240 V AC 50/60 Hz for 3 phase motors; 100 hp at 460/480 V AC 50/60 Hz for 3 phase motors; 125 hp at 575/600 V AC 50/60 Hz for 3 phase motors |
| Mechanical Robustness |
Vibrations contactor open 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz); Shocks contactor closed 15 Gn for 11 ms); Shocks contactor open 6 Gn for 11 ms) |
| Rated Short Time Withstand Current |
250 A 104°F (40°C) - 10 min for power circuit; 580 A 104°F (40°C) - 1 min for power circuit; 1200 A 104°F (40°C) - 10 s for power circuit; 1400 A 104°F (40°C) - 1 s for power circuit; 100 A - 1 s for signaling circuit; 120 A - 500 ms for signaling circuit; 140 A - 100 ms for signaling circuit |
| Safety Reliability Level |
B10d = 684932 cycles contactor with nominal load EN/ISO 13849-1; B10d = 10000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Mounting Support |
Rail; Plate |
| IP Degree Of Protection |
IP20 front face IEC 60529 |
| Compatibility Code |
LC1D |
| Motor Power KW |
40 kW at 220 to 230 V AC 50/60 Hz (AC-3); 75 kW at 380 to 400 V AC 50/60 Hz (AC-3); 80 kW at 415 to 440 V AC 50/60 Hz (AC-3); 90 kW at 500 V AC 50/60 Hz (AC-3); 100 kW at 660 to 690 V AC 50/60 Hz (AC-3); 75 kW at 1000 V AC 50/60 Hz (AC-3); 22 kW at 400 V AC 50/60 Hz (AC-4); 40 kW at 220 to 230 V AC 50/60 Hz (AC-3e); 75 kW at 380 to 400 V AC 50/60 Hz (AC-3e); 80 kW at 415 to 440 V AC 50/60 Hz (AC-3e); 90 kW at 500 V AC 50/60 Hz (AC-3e); 100 kW at 660 to 690 V AC 50/60 Hz (AC-3e); 75 kW at 1000 V AC 50/60 Hz (AC-3e) |
| Utilization Category |
AC-1; AC-4; AC-3; AC-3e |
| Hold-In Power Consumption in VA |
2 to 18 VA 60 Hz cos phi 0.9 (at 68°F (20°C)); 2 to 18 VA 50 Hz cos phi 0.9 (at 68°F (20°C)) |
| Contact Compatibility |
M13 |
| Protective Treatment |
THIEC 60068-2-30 |
| Auxiliary Contacts Type |
Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1 |
| Climatic Withstand |
IACS E10 exposure to damp heat |
| Insulation Resistance |
Greater than 10 MOhm for signaling circuit |
