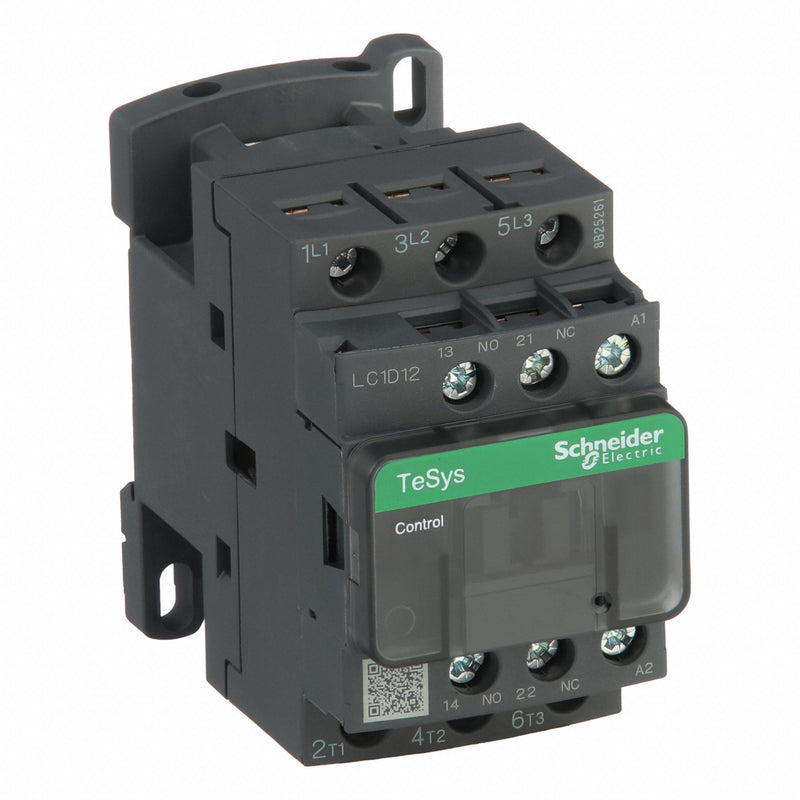

The product is a Schneider Electric IEC Magnetic Contactor (TeSys Deca), a three-pole, non-reversing, electrically operated switch. It uses a 120 V AC coil and features 1 normally open and 1 normally closed auxiliary contact (2 auxiliary contacts total). Rated for operation within specified motor control and resistive load circuit parameters, uses screw clamp terminals, and is rated up to 690 V AC / DC within specified conditions at 50/60 Hz. Has an IP20 enclosure rating; a protective cover is included. Key features Type/series: IEC Magnetic Contactor, TeSys Deca Action: Non-Reversing Poles and main contacts: 3 poles; 3 NO main contacts Auxiliary contacts: 2 total (1NO/1NC); Form: 1NC/1NO Coil voltage: 120 V AC Electrical connections: Screw Clamp Terminals Enclosure/Protection: IP20; Protective Cover Included Mounting: DIN Rail, Plate; Mounts On Plate, Rail Dimensions and weight: Depth 3.38 in; Height 3.03 in; Width 1.77 in; Net weight 0.325 kg Electrical rating: Rated for operation up to 690 V AC / DC within specified conditions; Frequency 50/60 Hz; Phase Three Load capability: Supports loads up to the specified current ratings under normal operating conditions; Rated Making Capacity 250 A @ 440 V (Power Circuit), 140 A (AC Signalling), 250 A (DC Signalling) Operating characteristics: Typical operating times based on standard testing procedures Other electrical data: Inrush 70 VA; Hold 7.5 VA; Insulation resistance >10 MΩ (Signalling Circuit)
| Working Height |
Up to 9842.52 ft |
| Overall Height |
3.03 in |
| Overall Depth |
3.39 in |
| Overall Width |
1.77 in |
| Auxiliary Contact Form |
1NC/1NO |
| Coil Voltage |
120V AC |
| Number of Poles |
3 |
| Full Load Amps-Inductive |
12 A |
| Full Load Amps-Resistive |
25 A |
| Reversing Capability |
Non-Reversing |
| Terminal Connection Type |
Screw Clamp |
| Number of Auxillary Contacts |
2 |
| Standards |
BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed |
| Enclosure NEMA Rating |
No Enclosure |
| HP @ 1 Phase - 230V |
2 |
| Reversing |
No |
| HP @ 3 Phase - 575V |
10 hp |
| Frame / Series / Class / Code |
TeSys |
| Series |
TeSys Deca |
| Rated Insulation Volts |
600/690V |
| Application |
Motor Control, Resistive Load |
| Net Weight |
0.325 kg |
| Impedance |
2.5 mOhm |
| Shock Resistance |
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Rated Making Capacity |
250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit) |
| Switching Voltage |
17 V (Signalling Circuit) |
| Non-Overlap Time |
1.5 ms |
| Hold VA |
7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C) |
| Insulation Resistance Range |
Greater Than 10 MOhms (Signalling Circuit) |
| Switching Current |
5 mA (Signalling Circuit) |
| Includes Protective Cover |
Yes |
| Electrical Durability |
2 Mcycles (12 A, AC-3, Less than 440 V); 0.8 Mcycles (25 A, AC-1, Less than 440 V); 2 Mcycles (12 A, AC-3e, Less than 440 V) |
| Overvoltage Category |
CAT III |
| Rated Short-Time Withstand Current |
105 A (at 40 Degrees C for 10 s Power Circuit), 210 A (at 40 Degrees C for 1 s Power Circuit), 30 A (at 40 Degrees C for 10 min Power Circuit), 61 A (at 40 Degrees C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Mechanical Durability |
15 Mcycles |
| Environmental Attributes |
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Features |
Without Built-In Suppressor Module |
| Control Circuit Voltage Limits |
Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz) |
| Impulse Withstand Voltage |
6 kV |
| Tightening Torque |
1.7 Nm |
| Signalling Circuit Frequency |
25 to 400 Hz |
| Max. Operating Watts |
3 kW (at 220 to 230V AC 50/60 Hz AC-3), 5.5 kW (at 380 to 400V AC 50/60 Hz AC-3), 5.5 kW 415 to (at 440V AC 50/60 Hz AC-3), 7.5 kW (at 500V AC 50/60 Hz AC-3), 7.5 kW (at 660 to 690V AC 50/60 Hz AC-3), 3.7 kW (at 400V AC 50/60 Hz AC-4), 3 kW (at 220 to 230V AC 50/60 Hz AC-3e), 5.5 kW (at 380 to 400V AC 50/60 Hz AC-3e), 5.5 kW 415 to (at 440V AC 50/60 Hz AC-3e), 7.5 kW (at 500V AC 50/60 Hz AC-3e), 7.5 kW (at 660 to 690V AC 50/60 Hz AC-3e) |
| Watts Loss |
2 to 3W |
| Rated Breaking Capacity |
250 A @ 440V |
| Fuse Amps |
10 A (Signalling Circuit), 40 A (Type 1 Power Circuit), 25 A (Type 2 Power Circuit) |
| IP Rating |
IP20 |
| Operating Speed |
3600 cycles per hr |
| Vibration Resistance |
4 G (Contactor Closed), 2 G (Contactor Open) |
| Inrush VA |
70 VA |
| Operating Time |
12 to 22 ms (Closing), 4 to 19 ms (Opening) |
| Fire Rating |
UL 94 V1 |
| Contactor Style |
IEC |
| Horsepower @ Three Phase - 600V AC |
10 hp |
| Mechanical Operating Durability |
15,000,000 |
| Number of Normally Open Main Contacts |
3 |
| Maximum Voltage Rating |
690V AC |
| Horsepower @ Three Phase - 240V AC |
3 hp |
| Full Load Current - Inductive |
12 A |
| Horsepower @ Three Phase - 480V AC |
7 1/2 hp |
| Frequency |
50/60 Hz |
| Phase |
Three |
| Full Load Current - Resistive |
25 A |
| Minimum Operating Temperature |
-40 Degrees F |
| Maximum Operating Temperature |
140 Degrees F |
| Resistance Properties |
Fire Resistant, Insulation Resistant |
| Mounting Style |
DIN Rail, Plate |
| Embedded Surge Suppressor |
No |
| Horsepower @ Single Phase - 240V AC |
2 hp |
| Horsepower @ Three Phase - 208V AC |
3 hp |
| Electrical Operating Durability |
2,000,000, 800,000 |
| Includes Auxiliary Contacts |
Yes |
| NEMA Enclosure Rating |
No Enclosure |
| Horsepower @ Single Phase - 120V AC |
1/2 hp |
| Conventional Free Air Thermal Current |
25 A (at 60°C Power Circuit), 10 A (at 60°C Signalling Circuit) |
| Country of Origin |
Indonesia |
