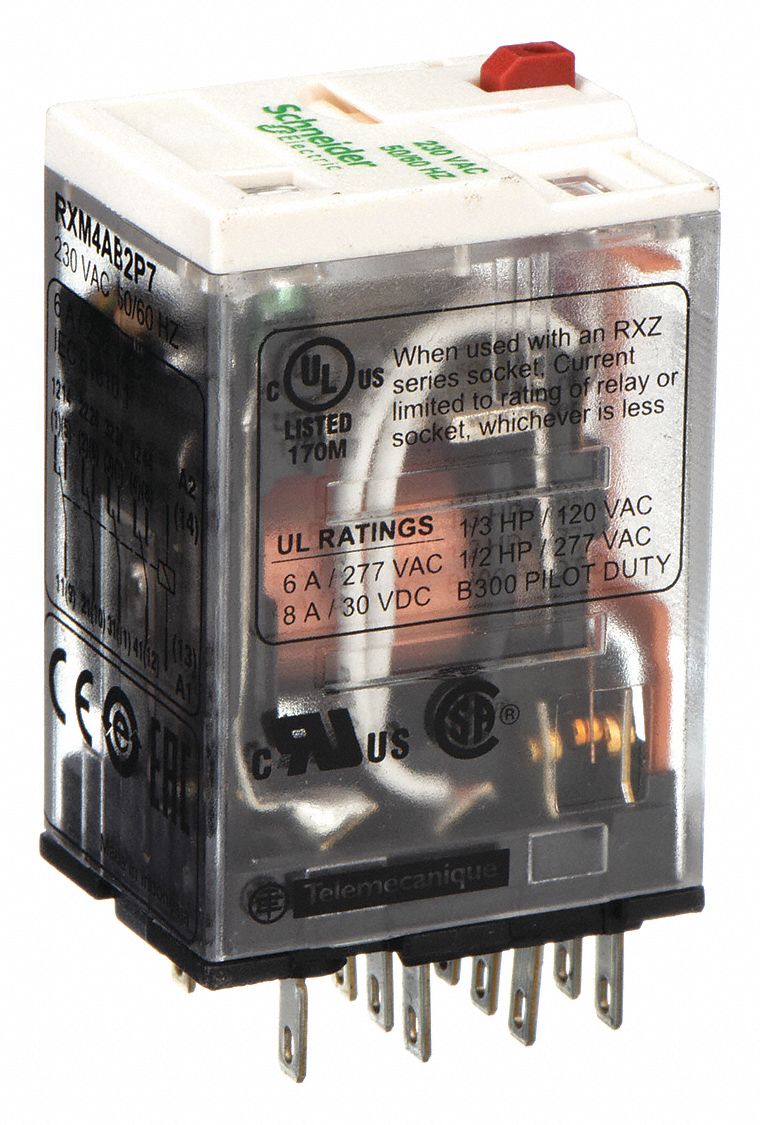

Schneider RXM4AB2P7 General Purpose Relay 4PDT 6A 14-Pin 230VAC

Schneider Electric RXM4AB2P7 Harmony RXM General Purpose Relay, Square, 4PDT 6 A, 14-Pin Plug-In, 230 VAC

UPC: 785901871781 | Harmonization / Schedule B : 8536.49.0075

Country of Origin: Indonesia | Shipping Weight: 0.08 lbs

$13.38 - $13.38
$13.38
$13.38 - $13.38
$13.38

General Purpose Relay, Base Shape Square, Coil Voltage 230V AC, Contact Form 4PDT, Current Rating 6 A, Electrical Connection Quick-Connect, Flat Pin Width 0.09 in, Number of Pins 14, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 6 A @ 250V, Contact Rating (DC) 6 A @ 28V, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 1.57 in, Body Height 1.06 in

Mounting Style Plug In
Electrical Connection Quick Connect
Base Shape Square
Number of Pins 14
Coil Voltage 230V AC
Current Rating 6A
Contact Form 4PDT
Contact Rating (AC) 6 A @ 250V
Contact Rating (DC) 6 A @ 28V
Power Consumption - Relay 1.2 VA
Status Indicator LED and Mechanical Flag
Standards CE Certified, CSA C22.2 No 14, CSA Certified, EN/IEC 61810-1, GOST, Lloyd's, UL 508, UL Listed
Contact Material Silver Alloy
Socket Mfr. No. RXZE2M114, RXZE2M114M, RXZE2S108M
Socket Code G
Features Lockable Test Button; Status LED
Resistance Properties Shock-Resistant, Vibration-Resistant
Input Voltage 253V AC
Weight 1.28 oz
Coil Resistance 15,000 ohm
Push-To-Test Method Lockable
Dielectric Strength 1,300V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
Electrical Operating Durability 100,000
For Use With RXZE Socket
Response Time 20 msec
Pin Shape Flat
Sealing Enclosed
IP Rating IP40
Mechanical Operating Durability 10,000,000
Power Consumption 1.2 VA
Maximum Switching Voltage 250V
Series Harmony(TM) RXM Series
Minimum Switching Current 10 mA
Frequency 50/60 Hz
Operating Time 20 ms
Switching Power Max 1500 VA/168 W; Min 170 mW 10 mA, 17 V
Continuous Output Current 5 A
Control Type Lockable test button
Control Circuit Voltage 230 V AC 50/60 Hz
Device Presentation Complete product
Ambient Air Temperature For Operation -40 to 131F (-40 to 55C)
Maximum Switching Capacity 1500 VA/168 W
Product Certifications CE; CSA; GOST; UL; Lloyd's
Rated Insulation Voltage 250 V IEC; 300 V CSA; 300 V UL
Average Coil Resistance 15000 Ohm 20C +/- 15%
Pollution Degree 2
Resistive Rated Load 6 A 250 V AC; 6 A 28 V DC
Contact Type and Composition 4 C/O
Country of Origin Indonesia
