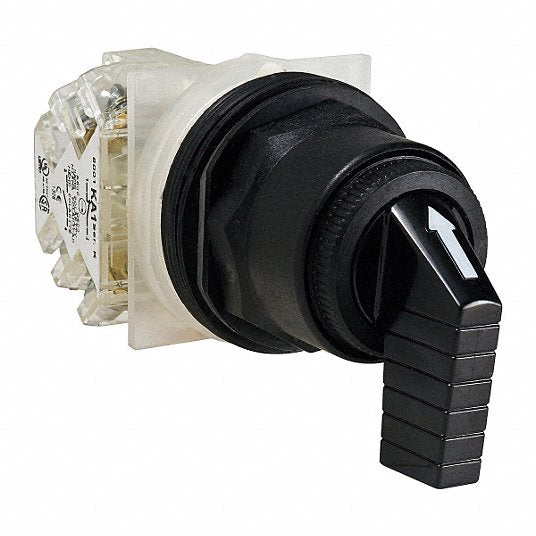

Schneider 9001SKS53FBH13 Non-Illum Selector Switch, Cam C, Ext Lvr
UPC: 785901044055 | Harmonization (Schedule B): 8536.50.9025
SKU KV69652774
Original price
$179.99
-
Original price
$179.99
Original price
$179.99
$179.99
-
$179.99
Current price
$179.99
Non-Illuminated Selector Switch, 30 mm, 3 Position, Momentary / Maintained / Momentary Action, 1NO/1NC Contact Form, Type of Operator Extended Lever, Color Black, No Key Key Removal, Operator Head Material Polycarbonate, Basic Material Plastic, Bezel Material Plastic, Bezel Color Chrome, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating 65, Cam C, Switch Operation @ Position A OX, Switch Operation @ Position B OO. 45J178,69652774,G6966014,AH9WHB,78590104405,
| Item | Non-Illuminated Selector Switch |
| Basic Material | Plastic |
| Type of Operator | Extended Lever |
| Contact Form | 1NO/1NC |
| Action | Momentary / Maintained / Momentary |
| Cam | C |
| Operator Head Material | Polycarbonate |
| Color | Black |
| NEMA Rating | 12, 13, 3, 3R, 4, 4X |
| Position | 3 |
| Bezel Material | Plastic |
| Key Removal | No Key |
| Bezel Color | Chrome |
| Switch Operation @ Position A | OX |
| Switch Operation @ Position C | XO |
| Switch Operation @ Position D | No Fourth Position |
| Switch Operation @ Position B | OO |
| IP Rating | 65 |
| NEMA Contact Rating Designation | A600/Q600 |
| Standards | CE Marked, CSA Certified File Number LR24590 Class 3211-03, UL Listed File Number E78403 CCN NKCR |
| Contact Rating | 10A @ 600V AC |
| Contacts Type And Composition | 1 C/O |
| Protective Treatment | TC |
| Ambient Air Temperature For Storage | -40-70°C |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Product Certifications | CSA LR24590 class 3211 03 || CE || UL listed file E42259 CCN NKCR |
| Product Compatibility | 9001KA1 side 1 or 2 |
| Device Presentation | complete product |
| Operator Profile | black long handle |
| Electrical Shock Protection Class | class II IEC 61140 |
| Device Short Name | 9001SK |
| Ambient Air Temperature For Operation | -25-70°C |
| Operator Position Information | 3 positions |
| Product Or Component Type | selector switch |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Package Quantity | 1 |
