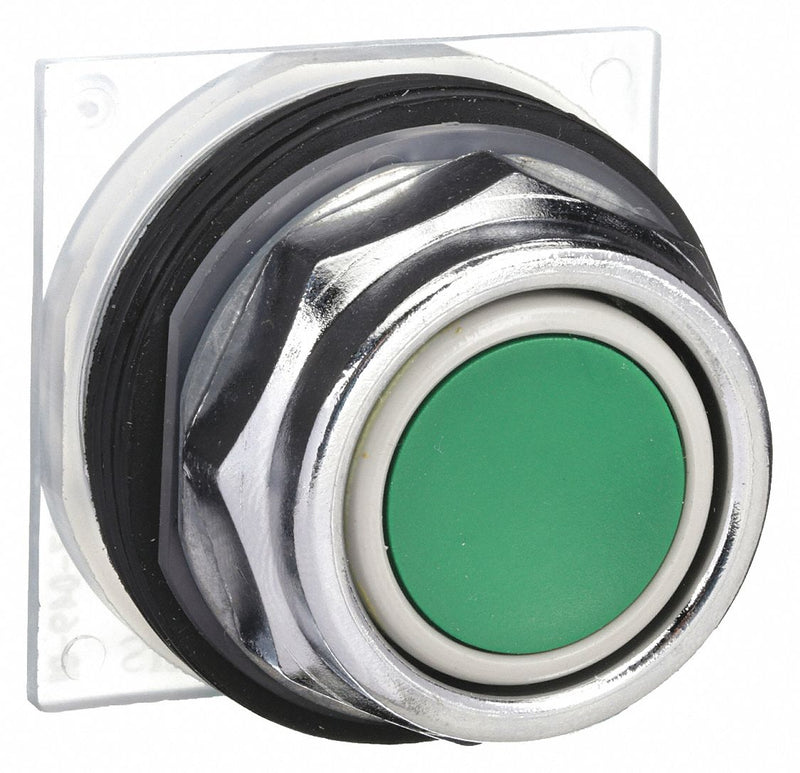

Schneider 9001KR1G Flush Push Button, Green, 30 mm Mounting Size, Metallic, Momentary

Schneider 9001KR1G Flush Push Button, Green, 30 mm Mounting Size, Metallic, Momentary

UPC: 785901874607 | Harmonization / Schedule B : 8538.90.7080

Country of Origin: Korea, Republic of | Shipping Weight: 0.2 lbs

$52.36 - $52.36
$52.36
$52.36 - $52.36
$52.36

Flush Push Button, 30 mm, Momentary, Type of Operator Flush Button, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Green, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Standards REACH Free of SVHC, RoHS, Features Withstands Harsh Environments, Octagonal Shaped

Panel Cutout Diameter 30 mm
Size 30 mm
Mounting Diameter 30 mm
Overall Depth 1.33 in
Overall Width 1.69 in
Overall Height 1.74 in
Manufacturer Warranty Length 18 mo
Push Button Style Flush
Action Momentary
Operator Illumination Non-Illuminated
Head Color Green
Head Material Metal
Standards REACH Free of SVHC, RoHS
Accessory Group E
NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6
IP Rating IP66
Type of Operator Flush Button
Basic Material Metal
Bezel Material Metal
Color Green
Features Withstands Harsh Environments, Octagonal Shaped
Number of Operators 1
Series 9001K
Operator Additional Information metal guard
Product Or Component Type head for push-button
Device Short Name 9001K
Cap/Operator Or Lens Colour green
Contacts Type And Composition without contact block
Operator Profile green flush, flush
Shape Of Signaling Unit Head round
Number of Indicator Lights 0
Resistance Properties Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operator Material Metal
Hazardous Location Specification Not Rated
NEMA Enclosure Rating 1, 12, 13, 2, 3, 3R, 4
Product Type Push Button Operators
Country of Origin Korea, Republic of
