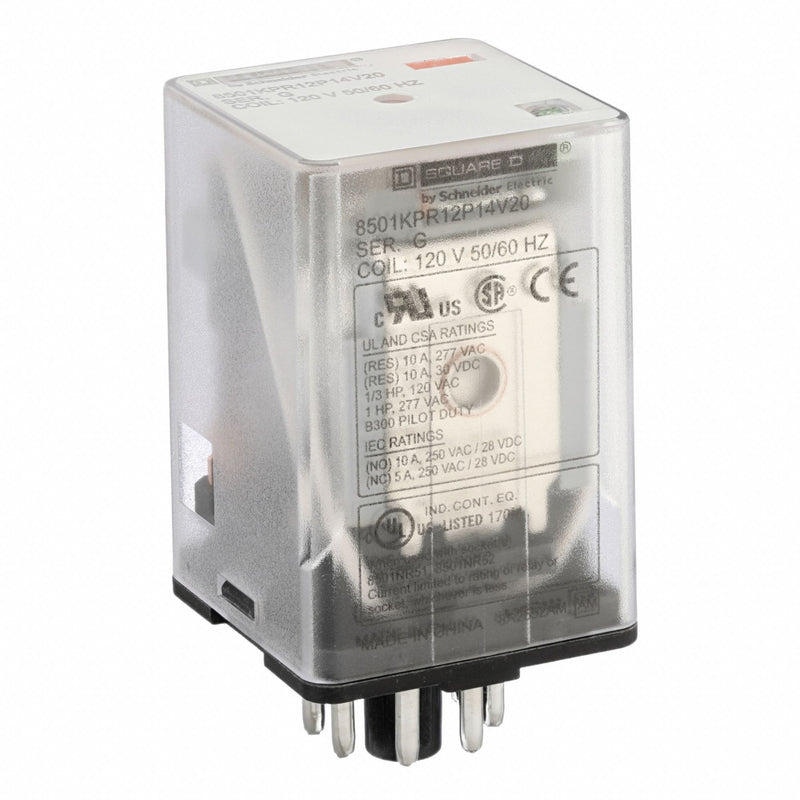

Schneider 8501KPR12P14V20 General Purpose Relay, Socket Mounted, 10 A Current Rating, 120V AC, DPDT, A Socket

Schneider 8501KPR12P14V20 General Purpose Relay, Socket Mounted, 10 A Current Rating, 120V AC, DPDT, A Socket

UPC: 785901153726 | Harmonization / Schedule B : 8536.49.0075

Country of Origin: China | Shipping Weight: 0.2 lbs

$78.92 - $78.92
$78.92
$78.92 - $78.92
$78.92

General Purpose Relay, Base Shape Octal, Coil Voltage 120V AC, Contact Form DPDT, Current Rating 10 A, Electrical Connection 8-Pin Terminal, Number of Pins 8, Pin Shape Round, Sealing Enclosed, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Socket, Push-To-Test Method No Button, Body Depth 2.1 in, Body Height 1.4 in

Overall Height - Relay 2.6 in
Overall Depth 2.7 in
Body Width 1.4 in
Body Height 1.4 in
Body Depth 2.1 in
Mounting Style Socket
Electrical Connection 8-Pin Terminal
Base Shape Octal
Number of Pins 8
Coil Voltage 120V AC
Current Rating 10 A
Contact Form DPDT
Contact Rating (AC) 10 A @ 277V
Contact Rating (DC) 10 A @ 28V
Socket Mfr. No. 8501NR51 or 8501NR52
Standards CE Certified, CSA Certified, UL Listed
HP @ 240V 1/2 hp
HP @ 120V 1/3 hp
Socket Code A
Status Indicator LED Indicator, Mechanical Flag
Power Consumption - Relay 3 VA
Contact Material Silver Alloy
Green Environmental Attribute RoHS 2011/65/EU Compliant
Features Indicator Light Relay Energised LED
Horsepower @ 120V AC 1/3 hp
Motor Rated Yes
Series Square D 8501K Series
Sealing Enclosed
Horsepower @ 240V AC 1/2 hp
Compatible with Manufacturer Model Number 8501NR51, 8501NR52
Push-To-Test Method No Button
Maximum Switching Voltage 300V AC, 30V DC
Maximum Operating Temperature 131 Degrees F
Pin Shape Round
Response Time 20 msec
Power Consumption 3 VA
Minimum Operating Temperature -40 Degrees F
Compatible Manufacturer Part Number 8501NR51, 8501NR52
Compatible Manufacturer Model Number 8501NR51, 8501NR52
Operating Time 20 ms - pick-up || 20 ms - drop-out
Switching Voltage 300 V AC; 30 V DC
CAD Available Yes
For Manufacturer Part Number 8501NR51, 8501NR52
Compatible with Mfr. Model Number 8501NR51, 8501NR52
Country of Origin China (subject to change)
