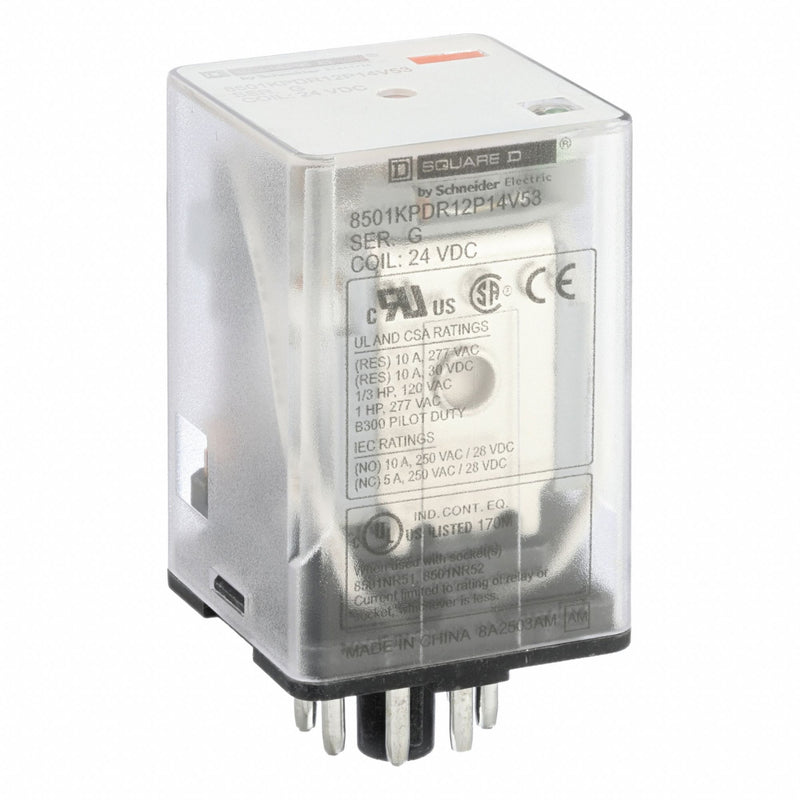

Schneider 8501KPDR12P14V53 General Purpose Relay, Socket Mounted, 10 A Current Rating, 24V DC, DPDT, 8 Pins/Terminals

Schneider 8501KPDR12P14V53 General Purpose Relay, Socket Mounted, 10 A Current Rating, 24V DC, DPDT, 8 Pins/Terminals

UPC: 785901348894 | Harmonization / Schedule B : 8536.49.0080

Country of Origin: China | Shipping Weight: 0.15 lbs

$78.92 - $78.92
$78.92
$78.92 - $78.92
$78.92

General Purpose Relay, Base Shape Octal, Coil Voltage 24V DC, Contact Form DPDT, Current Rating 10 A, Electrical Connection 8-Pin Terminal, Number of Pins 8, Pin Shape Round, Sealing Enclosed, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 10 A @ 120V, Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method No Button, Body Depth 2.1 in, Body Height 1.4 in

Overall Height - Relay 2.6 in
Overall Depth 2.7 in
Body Width 1.4 in
Body Depth 2.1 in
Body Height 1.4 in
Width 1.4 in (35.56 mm)
Depth 1.4 in (35.56 mm)
Mounting Style Plug-In
Electrical Connection 8-Pin Terminal
Base Shape Octal
Number of Pins 8
Coil Voltage 24V DC
Current Rating 10 A
Contact Form DPDT
Contact Rating (AC) 10 A @ 120V
Contact Rating (DC) 10 A @ 28V
HP @ 240V 1/2 hp
Power Consumption - Relay 1.4 W
Standards CE Marked, CSA Certified, UL Listed
Status Indicator LED Indicator, Mechanical Flag
Socket Mfr. No. 8501NR51 or 8501NR52
Contact Material Silver Nickel
HP @ 120V 1/3 hp
Green Environmental Attribute RoHS 2011/65/EU Compliant
Socket Code A
Features Indicator Light Relay Energised LED
Response Time 20 msec
Motor Rated Yes
Maximum Operating Temperature 131 Degrees F
Power Consumption 1.4 W
Compatible with Manufacturer Model Number 8501NR51, 8501NR52
Push-To-Test Method No Button
Horsepower @ 240V AC 1/2 hp
Pin Shape Round
Series Square D 8501K Series
Minimum Operating Temperature -40 Degrees F
Sealing Enclosed
Maximum Switching Voltage 300V AC, 30V DC
Horsepower @ 120V AC 1/3 hp
Compatible Manufacturer Part Number 8501NR51, 8501NR52
Compatible Manufacturer Model Number 8501NR51, 8501NR52
For Use With 8501NR52; 8501NR51
Switching Voltage 300 V AC; 30 V DC
Ambient Temperature Range - Operational -40 to 131°F (-40 to 55°C)
Shape Of Pins Tubular
Manual Operator Without test button
Breaking Capacity 3 A 120 V AC inductive control circuit UL 508; 1.5 A 240 V AC inductive control circuit UL 508; 10 A 277 V AC resistive control circuit UL 508; 10 A 30 V DC resistive control circuit UL 508
Product Certifications UL Listed; UL Recognized; CSA; CE
Control Circuit Voltage 24 V DC
Operating Time 20 ms - pick-up || 20 ms - drop-out
For Manufacturer Part Number 8501NR51, 8501NR52
Compatible with Mfr. Model Number 8501NR51, 8501NR52
Country of Origin China (subject to change)
