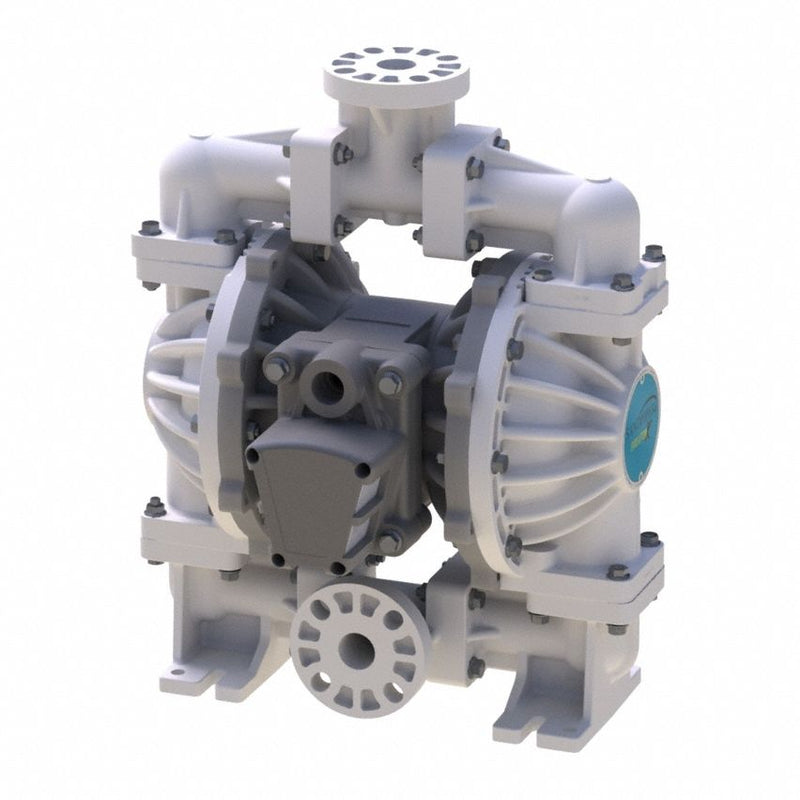

Sandpiper SPE10BPPR0RP000UC1 Air Operated Double Diaphragm Pump, Polypropylene Body, 1 in, Flange Connection, 63 gpm

Sandpiper SPE10BPPR0RP000UC1 Air Operated Double Diaphragm Pump, Polypropylene Body, 1 in, Flange Connection, 63 gpm

UPC: | Harmonization / Schedule B : 8413.50.0050

Country of Origin: United States | Shipping Weight: 33.3 lbs

$4,084.94 - $4,084.94
$4,084.94
$4,084.94 - $4,084.94
$4,084.94

Air Operated Double Diaphragm Pump, Air Intake Connection Size 1 in, Air Intake Connection Type NPT, Check Seat Material Polypropylene, Diaphragm Material Santoprene, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 63 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 in, Media Discharge Connection Type Flange, Media Discharge Location Top, Media Intake Connection Size 1 in, Media Intake Connection Type Flange

Pump Assembly Type Bolt
Manifold Connection Single Port
Valve Material Santoprene
Valve Type Ball
Air Intake Connection Type NPT
Check Seat Material Polypropylene
Diaphragm Material Santoprene
Media Temperature (Maximum) 180 Degrees F
Operating Pressure (Maximum) 125 psi
Standards ANSI, CE Marked, DIN, EAC Certified, UKCA Marked
Media Intake Location Bottom
Flow Rate (Maximum) 63 gpm
Wetted Housing Material Polypropylene
Chemical Compatibility See full list of Chemical Compatibility Acetone,Ammonium Chloride 10%,Ammonium Hydroxide,Benzoic Acid,Boric Acid 10%,Alcohol,Citric Acid,Diethylene Glycol,Dimethyl Formamide,Glycerol,Hydrobromic Acid 25%,Hydrofluoric Acid 35%,Lactic Acid,Nitric Acid 10%,Phosphoric Acid 80%,Potassium Hydroxide 50%,Potassium Permanganate 20%,Propylene Glycol,Pyridine,Sodium Hydroxide 50%,Sulfuric Acid 10%
Feet of Head (Maximum) 289 ft
Media Intake Connection Type Flange
Media Discharge Connection Type Flange
Media Discharge Location Top
Priming Self-Priming
Mounting Hardware Material Stainless Steel
Media Discharge Port Configuration Center Horizontal
Center Section Material Polypropylene
For Use With Potable Systems No
Diaphragm Reinforcement Not Reinforced
Diaphragm Base Material Santoprene
Wetted Body Material Polypropylene
Fluid Chamber Assembly Type Bolted
Media Intake Port Configuration Center Horizontal
Includes Clean In Place Technology No Clean In Place Included
Material Conductivity Non-Conductive
Manifold Connection Standard Flange
Displacement Per Stroke 0.22 gal
Series SPE10
Includes Solenoid No Solenoid Included
Manifold Port Connection Type Single Port
Food Compatibility Vegetable Oil
Country of Origin United States
