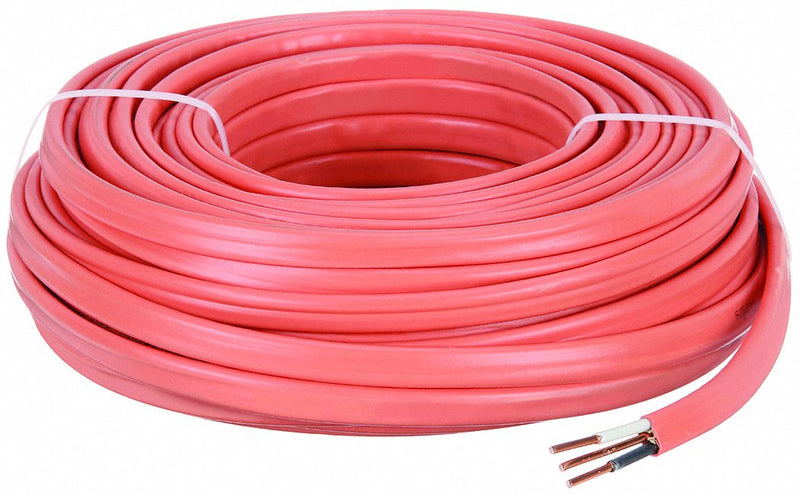

Romex 28829055 SIMpull NM-B Non-Metallic Building Cable, 10 AWG, 2 Conductors with Ground, 250 ft, Orange, 600V

Romex 28829055 SIMpull NM-B Non-Metallic Building Cable, 10 AWG, 2 Conductors with Ground, 250 ft, Orange, 600V

UPC: 032886263101 | Harmonization / Schedule B : 8544.49.1000

Country of Origin: United States | Shipping Weight: 30.85 lbs

$549.08 - $549.08
$549.08
$549.08 - $549.08
$549.08

Nonmetallic Building Cable, Number of Conductors 2, Wire Size 10 AWG, Trade Designation NM-B, Jacket Material PVC, Jacket Color Orange, Length 250 ft, Conductor Design Solid, Voltage 600 V, Wire Color Bare/Black/White, Nominal Outside Dia. 0.494 in x 0.210 in, Temp. Rating 194 Degrees F

Trade Designation NM-B
Conductor Material Copper
Number of Conductors 2C with Ground
Wire Color Bare/Black/White
Jacket Color Orange
Jacket Material PVC
Conductor Design Solid
Insulation Material PVC
Voltage 600V AC
Temp. Rating 194 Degrees F
Standards UL 83, UL standard 719. Federal Specification A-A-59544 and requirements of National Electrical Code
Max. Amps 30
Application NM-B cable is primarily used in residential wiring as branch circuits for outlets, switches, and other loads. NM-B cable may be run in air voids of masonry block or tile walls where such walls are not subject to excessive moisture or dampness.
Stranding 1
Packaging Coil
Applications Southwire® Romex® Brand SIMpull® NM-B (nonmetallic-sheathed) cable may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90°C (with ampacity limited to that for 60°C conductors) as specified in the National Electrical Code. NM-B cable is primarily used in residential wiring as branch circuits for outlets, switches, and other loads. NM-B cable may be run in air voids of masonry block or tile walls where such walls are not wet or damp locations. Voltage rating for NM-B cable is 600 volts.
Construction Southwire Romex® Brand SIMpull® NM-B cable is manufactured as 2, 3, or 4 conductor cable, with a bare ground wire. Copper conductors are annealed (soft) copper. Stranded conductors are compressed stranded. Conductor insulation is 90°C-rated polyvinyl chloride (PVC), nylon jacketed. Romex® Brand SIMpull® NM-B cable is designed for easier pulling, resulting in easier installation. The cable jacket is color-coded for quick size identification; White - 14 AWG, Yellow - 12 AWG, Orange - 10 AWG, and Black - 8 AWG and 6 AWG.
Allowable Ampacity 30
Series Romex(R) Brand SIMpull(R)
Number of Strands 1
Grounding Conductor Insulation Color Bare
Conductor Insulation Material PVC
Grounding Conductor Material Copper
Conductor Insulation Color Black, White
Temperature Rating - Maximum Dry 194 Degrees F
Number of Ground Conductors 1
Number of Neutrals 0
Grounding Conductor Insulation Material Uninsulated
Country of Origin United States
