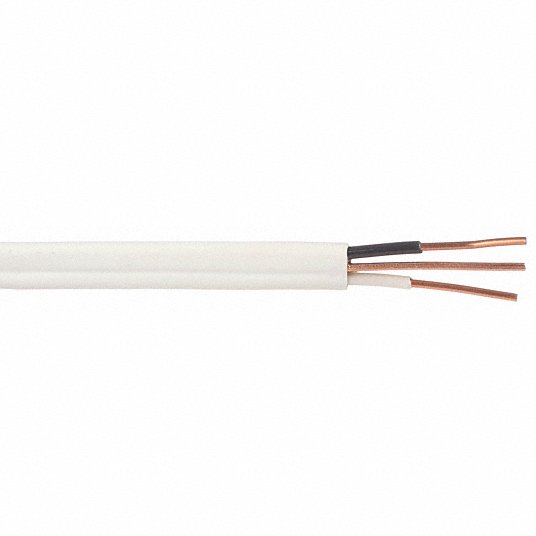

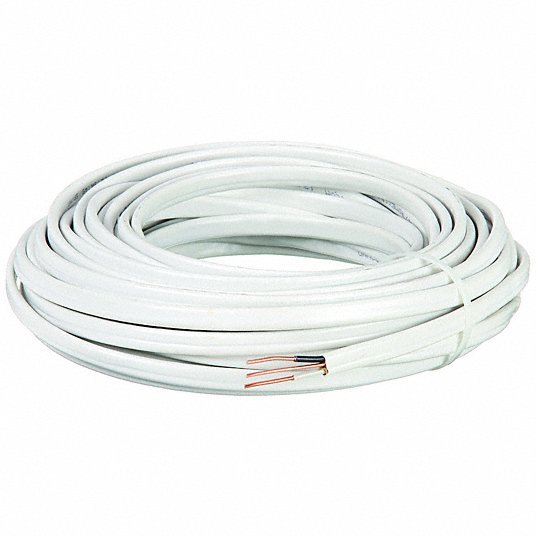

Nonmetallic Building Cable, Number of Conductors 2 with Bare CU Ground, Wire Size 14 AWG, Trade Designation NM-B, Jacket Material PVC, Jacket Color White, Length 25 ft, Conductor Design Solid, Voltage 600 V, Wire Color Bare/Black/White, Nominal Outside Dia. 0.360 in x 0.162 in, Temp. Rating 194 Degrees F
| Number of Conductors | 2 with Ground |
| Jacket Color | White |
| Jacket Material | PVC |
| Item | Nonmetallic Building Cable |
| Voltage | 600 V |
| Wire Color | Bare/Black/White |
| Temp. Rating | 194 Degrees F |
| Jacket Material (Wire and Cable) | PVC |
| Max. Amps | 15 |
| Stranded / Solid | Solid |
| Wire and Cable Item | Nonmetallic Building Cable |
| Cable Type - Wire and Cable | NM-B |
| Cable Type (Wire and Cable) | NM-B |
| Jacket Material - Wire and Cable | PVC |
| Application | For Indoor Use |
| Standards | UL |
| Trade Designation | NM-B |
| Insulation Material | PVC |
| Conductor Design | Solid |
| Packaging | Coil |
| Product Type | Nonmetallic Building Cable |
| No. of Conductors | 2 |
| Allowable Ampacity | 15 |
| Insulation Thickness (Mils) | 15mils |
| No. of Grounds | 1 |
| No. of Strands | 1 |
| Applications | ApplicationSouthwire® Romex® Brand SIMpull® NM-B (nonmetallic-sheathed) cable may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90°C (with ampacity limited to that for 60°C conductors) as specified in the National Electrical Code. NM-B cable is primarily used in residential wiring as branch circuits for outlets, switches, and other loads. NM-B cable may be run in air voids of masonry block or tile walls where such walls are not wet or damp locations. Voltage rating for NM-B cable is 600 volts. |
| Construction | ConstructionSouthwire Romex® Brand SIMpull® NM-B cable is manufactured as 2, 3, or 4 conductor cable, with a bare ground wire. Copper conductors are annealed (soft)copper. Stranded conductors are compressed stranded. Conductor insulation is 90°C-rated polyvinyl chloride (PVC), nylon jacketed. Romex® Brand SIMpull® NM-B cable is designed for easier pulling, resulting in easier installation. The cable jacket is color-coded for quick size identification; White - 14 AWG, Yellow - 12 AWG, Orange - 10 AWG, and Black - 8 AWG and 6 AWG. |
| Package Quantity | 1 |
