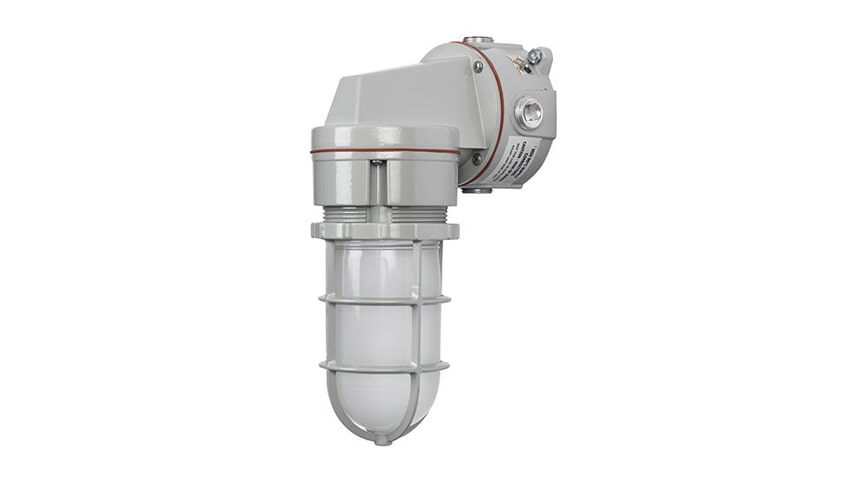

Rig-A-Lite AVPH20L2UHFGC Ceiling Mount LED Globe & Guard Lighting for Hazardous Locations

UPC: | Harmonization (Schedule B): 9405.49.0000

SKU AVPH20L2UHFGC
Original price $736.99 - Original price $736.99
Original price
$736.99
$736.99 - $736.99
Current price $736.99

The Rig-A-Lite AVPH20L2UHFGC is a high-performance Ceiling mount lighting fixture designed for industrial and commercial use. With its durable construction and efficient LED technology, it provides optimal lighting for any workspace. Its compact design and easy installation make it a cost-effective option for enhancing visibility and productivity.

Style

CIDII Compact Globe w/ Guard, Frosted Lens, Ceiling Mt

Watts

20

Operating Voltage

120V – 277 V 50/60 Hz

Total Lumens

1,769

Lumens per Watt

87

CRI

83

CCT

4,017

Ambient Temperature

-20°C < Tamb <50°C

Standard Features:

  • Compact luminaire with high lumen output
  • Rugged 5/32″ thick housing
  • Glare-reducing frosted globe
  • Field-replaceable LED circuit boards and drivers with quick disconnects
  • Standard protective guard

Additional Features:

  • No external fins
  • Optional dimming driver
  • 2 kV surge protection
  • 5-year warranty

Classifications:

  • Class I, Division 2, Groups A, B, C and D
  • Zone 2, Groups IIA, IIB and IIC
  • UL 844 hazardous locations
  • UL 1598A marine outside type
  • UL 1598 wet locations
  • ABS type approved
  • Ul 8750 LED safety
  • cUL listed
  • NEMA 3, 4 and 4X
  • -20°C to 40°C ambient temperature

Standard Materials:

  • Body: A360 aluminum (less than .4% copper content) with baked-on gray epoxy finish
  • Guard: A360 aluminum (less than .4% copper content) with baked-on gray epoxy finish
  • Gasket: one-piece silicone
  • Lens: borosilicate glass
  • Hardware: stainless steel
