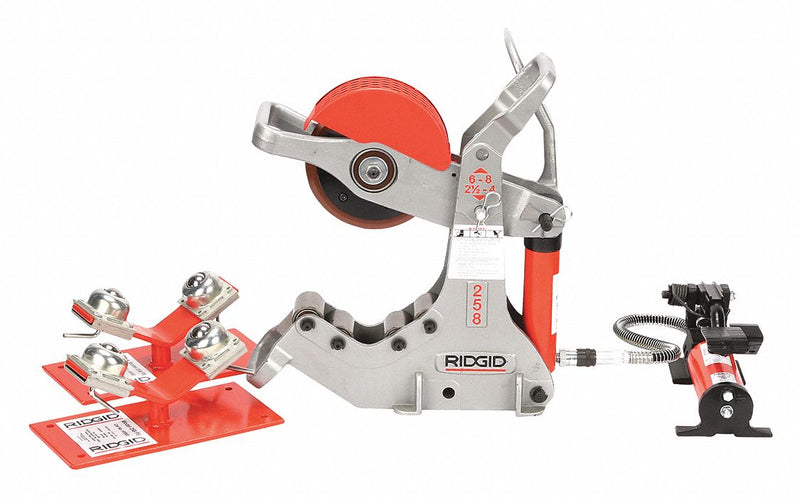

Ridgid 50767 Pipe Cutter, 115V AC, 1/2 hp, Power Drive Required, 8 in Max. Dia., Steel

Ridgid 50767 Pipe Cutter, 115V AC, 1/2 hp, Power Drive Required, 8 in Max. Dia., Steel

UPC: 095691507679 | Harmonization / Schedule B : 8203.40.3000

Country of Origin: South Korea | Shipping Weight: 175.0 lbs

$5,824.48 - $5,824.48
$5,824.48
$5,824.48 - $5,824.48
$5,824.48

The RIDGID Model 258 Power Pipe Cutter cuts 2 1⁄2" (65 mm) to 8" (200 mm) schedule 10*/40 steel pipe, galvanized pipe, rigid conduit, etc. at the job site or in the shop. Powered by the RIDGID No. 700 Power Drive, the 258 is a displacement cutter that provides square cuts. The operator controls the feeding rate by pumping the hydraulic foot pump throughout the operation. A square cut with minimal burr on either 21 ft (6m) or nipple lengths of pipe is achieved quickly** without abrasive dust, sparks, or open flame. Also, the RIDGID Pipe Roller for beveling can be used to rotate the pipe while second operator uses a grinder to bevel the pipe. Features: • Square cut 21ft (6m) or nipple lengths of pipe without effort. Cuts by displacing instead of removing pipe material. No abrasive dust, dangerous sparks, or open flame. Quickly cuts steel pipe with minimal burr. Heavy-duty design is perfect for field or shop use. Adaptable for beveling.

Overall Length 22.5 in
Minimum Compatible Pipe Size 2 1/2 in
Maximum Compatible Pipe Size 8 in
Overall Width 11.9 in
Minimum Compatible Tubing Size 2.5 in
Maximum Compatible Tubing Size 8 in
Dedupe to Minimum Compatible Pipe Size and Maximum Compatible Pipe Size 2-1/2 in to 8 in
Wire Rope Length 22.5 in
Length 22.5 in
For Pipe Size - Minimum 2 1/2 in
For Pipe Size - Maximum 8 in
Fits Chest Size Cuts by Displacing Instead of Removing Pipe Material, Heavy-Duty Design for Field or Shop Use, No Abrasive Dust Sparks or Open Flame, Cuts Steel Pipe with Minimal Burr
Voltage 115V AC
Includes (2) Ball Transfer Pipes, 8 1/2 in Heavy-Duty Cutter Wheel Assembly, Hydraulic Foot Pump, 15/16 in Square Drive Adapter
Features Cuts by Displacing Instead of Removing Pipe Material, Heavy-Duty Design for Field or Shop Use, No Abrasive Dust Sparks or Open Flame, Cuts Steel Pipe with Minimal Burr
Tool Series 258
Machine Capacity Pipe 2-1/2 in to 8 in
Switch Type On/Off Toggle
Characteristics Need Power Drive to Operate (not included)
Functions With Pipes
Phase Single-Phase
Application Pipe Cutting
Tool Weight 105 lb
Compatible Threader Series Ridgid 700 Power Drive
Horsepower 1/2 hp
Kit Contents Bare Tool
Number of Speeds 1
Reversible No
Power Drive Required Yes
Frequency 60 Hz
Compatible Pipe Schedule 10, 40
Current 20 A
Compatible Material Type Steel
Power Source Power Drive Required
Free Speed 30 RPM
Cutting Capacity 2-1/2" (65 mm) to 8" (200 mm) schedule 10*/40 steel pipe
For Workpiece Material Steel
Product Type Pipe Cutter
Country of Origin Korea, Republic of
