| Commercial / Residential |
Commercial |
| Water Heater Design |
Whole House |
| Tank Capacity - Plumbing |
105.0 gal |
| Voltage - Water Heaters |
240 |
| Phase - Water Heaters |
3 |
| Total Watts |
18,000 W |
| Compliance |
UL Certified; North Carolina and Massachusetts Code Compliant; ASHRAE Standards |
| Tank Capacity |
105 gal |
| Temp. Range |
90 Degrees to 170 Degrees F, Preset @ 120 Degrees F |
| Recovery @ 100 F Rise |
74 gph |
| System of Measurement |
Inch |
| Fuel Type |
Electric |
| Connection Type |
NPT |
| Recovery @ 90 F Rise |
83.0 gph |
| Recovery @ 50 F Rise |
149 gph |
| Includes |
Brass Drain Valve, Factory-Installed T&P Valve |
| Recovery @ 120 F Rise |
62 gph |
| Number of Elements |
4 |
| Phase |
Single, Three |
| Connection Location |
Top |
| Residential / Commercial |
Commercial |
| Recovery @ 110 F Rise |
68 gph |

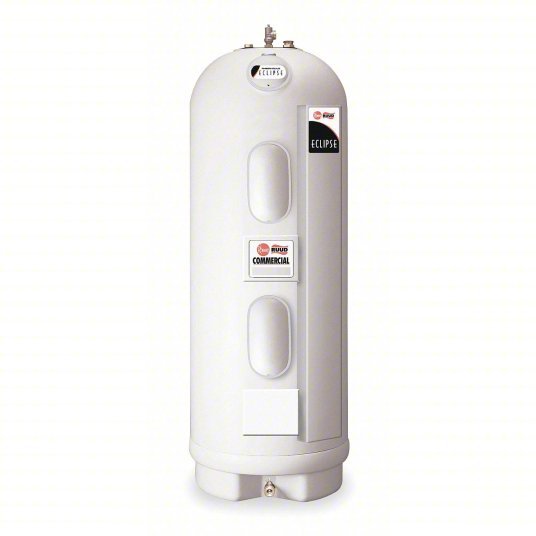

| Item |
Electric Water Heater |
| Recovery @ 70 F Rise |
106 gph |
| Amps AC |
50 A |
| Vent Type |
Standard |
| Max. Pressure |
150 psi |
| Industry Type |
Commercial |
| Water Connection |
3/4 in NPT |
| Voltage |
240V |
| Standards |
AHRI Compliant, cULus Listed, UL EPH Listed |
| Features |
Non-Metallic; Durable; Lightweight Composite Tank; High Density Polyethylene Dent and Scratch Resistant Jacket; System Sentinel LED Indicators; 98% Thermal Efficiency; Recessed Drain Valve is Out of The Way of Brooms and Scrubbers |
| BtuH |
61,420 |
| Maximum Recovery Flow Rate |
186 gph @ 40 Degrees F |
| Included Valve Type |
T & P Relief |
| Tank Insulation Material |
Polyethylene |
| Recovery Rate @ Rise |
106 gph @ 70 Degrees F, 124 gph @ 60 Degrees F, 149 gph @ 50 Degrees F, 62 gph @ 120 Degrees F, 68 gph @ 110 Degrees F, 74 gph @ 100 Degrees F, 83 gph @ 90 Degrees F, 93 gph @ 80 Degrees F |
| Maximum Delivered Temperature |
170 Degrees F |
| Current |
75 A |
| Market |
Commercial |
| Included Valves |
Temperature and Pressure Relief |
| Thermostat Mounting |
Surface |
| Thermal Efficiency |
98 % |
| Operating Voltage |
240V AC |
| Equivalent BtuH |
61,420 BtuH |
| Maximum Water Pressure |
150 psi |
| Power Consumption |
18,000 W |
| Environment |
Indoor |
| Water Connection Location |
Top |
| Element Material |
Titanium |
| Minimum Delivered Temperature |
90 Degrees F |
