| Commercial / Residential |
Commercial |
| Water Heater Design |
Whole House |
| Tank Capacity - Plumbing |
85.0 gal |
| Voltage - Water Heaters |
480 |
| Phase - Water Heaters |
1/3 |
| Total Watts |
36,000 W |
| Recovery @ 120 F Rise |
124 gph |
| Phase |
Single, Three |
| Item |

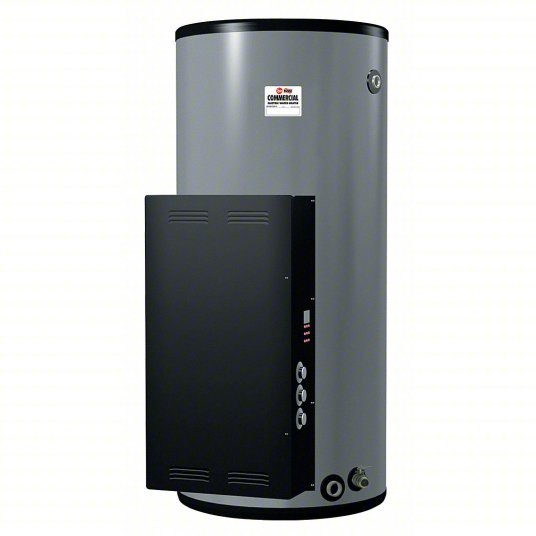

Electric Water Heater |
| Voltage |
480V |
| Water Connection |
1-1/2 in NPT |
| Amps AC |
43 for 3 Phase, 75 for 1 Phase |
| Compliance |
Exceeds Energy Effeciency Codes of all States. Design Certified by Underwriters Laboratory (UL) to Meet UL Standard 1453 and UL/NSF005., Tested According to DOE Test Procedures and Exceed the Minimum Energy Factor Requirements of Current ASHRAE Standards |
| Recovery @ 110 F Rise |
135 gph |
| Recovery @ 50 F Rise |
298 gph |
| Recovery @ 70 F Rise |
213 gph |
| Recovery @ 100 F Rise |
149 gph |
| Temp. Range |
120 Degrees to 180 Degrees F |
| Includes |
Brass Drain Valve, Factory-Installed T&P Valve |
| Application |
Ferrous / Non-Ferrous Metal Over 1/8", S/S Tube, PVC, Cast Pipe and Nail Embedded Wood |
| Recovery @ 90 F Rise |
165.0 gph |
| Number of Elements |
6 |
| Fuel Type |
Electric |
| Vent Type |
Standard |
| Max. Pressure |
150 psi |
| Standards |
AHRI Compliant, ASME, CSA Certified, LWH, UL EPH Listed, UL Listed |
| Industry Type |
Commercial |
| Residential / Commercial |
Commercial |
| Connection Type |
NPT |
| System of Measurement |
Inch |
| Recovery @ 140 F Rise |
108 gph |
| Recovery @ 130 F Rise |
115 gph |
| Tank Capacity |
85 gal |
| Features |
Inputs of 3KW to 108KW, Four Voltages to choose from, Lifeguard Stainless Steel Elements, 98% Thermal Effeciency, System Sentenal, Full Port/Full Flow Brass Drain Valve |
| Connection Location |
Cold Side/Hot Top |
| Power Consumption |
36,000 W |
| Equivalent BtuH |
122,839 BtuH |
| Element Material |
Stainless Steel |
| Tank Insulation Material |
Polyurethane |
| Operating Voltage |
480V AC |
| Automatic Thermostat |
Yes |
| Recovery Rate @ Rise |
106 gph @ 140 Degrees F, 115 gph @ 130 Degrees F, 124 gph @ 120 Degrees F, 135 gph @ 110 Degrees F, 149 gph @ 100 Degrees F, 165 gph @ 90 Degrees F, 186 gph @ 80 Degrees F, 213 gph @ 70 Degrees F, 248 gph @ 60 Degrees F, 298 gph @ 50 Degrees F |
| Minimum Delivered Temperature |
90 Degrees F |
| Current |
75 A |
| Thermal Efficiency |
98 % |
| Maximum Recovery Flow Rate |
372 gph @ 40 Degrees F |
| Market |
Commercial |
| Cold Inlet Type |
NPT |
| Maximum Water Pressure |
150 psi |
| Water Connection Location |
Side, Top |
| Maximum Delivered Temperature |
190 Degrees F |
| Included Valves |
Temperature and Pressure Relief |
| Thermostat Mounting |
Surface |
| Hot Outlet Type |
NPT |
| Tank Lining Material |
Vitreous Glass |
