| Commercial / Residential |
Commercial |
| Water Heater Design |
Whole House |
| Tank Capacity - Plumbing |
85.0 gal |
| Voltage - Water Heaters |
480 |
| Phase - Water Heaters |
1/3 |
| Total Watts |
12,000 W |
| Number of Elements |
3 |
| Recovery @ 140 F Rise |
35 gph |
| Recovery @ 50 F Rise |
99 gph |
| Includes |
Brass Drain Valve, Factory-Installed T&P Valve |
| Standards |
AHRI Compliant, ASME, CSA Certified, LWH, UL EPH Listed, UL Listed |
| Industry Type |
Commercial |
| Recovery @ 110 F Rise |
45 gph |
| Temp. Range |
120 Degrees to 180 Degrees F |
| Fuel Type |
Electric |
| Tank Capacity |
85 gal |
| Recovery @ 120 F Rise |
41 gph |
| Recovery @ 130 F Rise |
38 gph |
| Item |

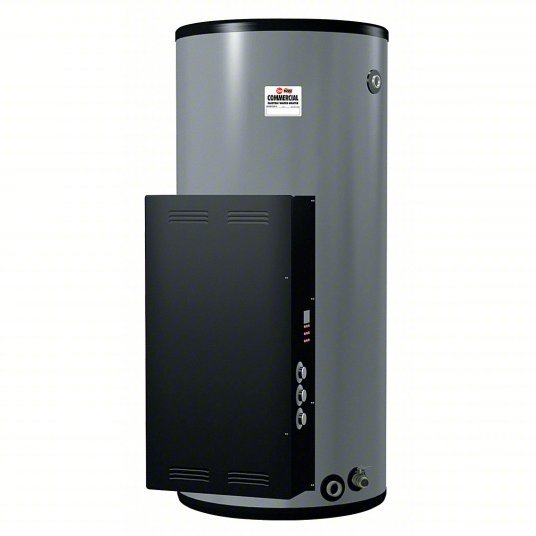

Electric Water Heater |
| Phase |
Single, Three |
| Connection Location |
Cold Side/Hot Top |
| Water Connection |
1-1/2 in NPT |
| Recovery @ 70 F Rise |
71 gph |
| Features |
Heavy Duty; Long Life Tank Design; Automatic Temperature Control; 98% Thermal Efficiency; Minimal Standby Heat Loss |
| Vent Type |
Standard |
| Recovery @ 90 F Rise |
55.0 gph |
| Max. Pressure |
150 psi |
| System of Measurement |
Inch |
| Recovery @ 100 F Rise |
50 gph |
| Residential / Commercial |
Commercial |
| Compliance |
Exceeds Energy Effeciency Codes of all States. Design Certified by Underwriters Laboratory (UL) to Meet UL Standard 1453 and UL/NSF005., Tested According to DOE Test Procedures and Exceed the Minimum Energy Factor Requirements of Current ASHRAE Standards |
| Amps AC |
15 for 3 Phase, 25 for 1 Phase |
| Application |
Ferrous / Non-Ferrous Metal Over 1/8", S/S Tube, PVC, Cast Pipe and Nail Embedded Wood |
| Connection Type |
NPT |
| Water Connection Location |
Side, Top |
| Equivalent BtuH |
40,946 BtuH |
| Included Valves |
Temperature and Pressure Relief |
| Tank Lining Material |
Vitreous Glass |
| Maximum Recovery Flow Rate |
124 gph @ 40 Degrees F |
| Element Material |
Stainless Steel |
| Thermostat Mounting |
Surface |
| Current |
25 A |
| Automatic Thermostat |
Yes |
| Cold Inlet Type |
NPT |
| Maximum Water Pressure |
150 psi |
| Hot Outlet Type |
NPT |
| Tank Insulation Material |
Polyurethane |
| Operating Voltage |
480V AC |
| Maximum Delivered Temperature |
190 Degrees F |
| Market |
Commercial |
| Thermal Efficiency |
98 % |
| First Hour Rating |
Not Applicable |
| Minimum Delivered Temperature |
90 Degrees F |
| Recovery Rate @ Rise |
35 gph @ 140 Degrees F, 38 gph @ 130 Degrees F, 41 gph @ 120 Degrees F, 45 gph @ 110 Degrees F, 50 gph @ 100 Degrees F, 55 gph @ 90 Degrees F, 62 gph @ 80 Degrees F, 71 gph @ 70 Degrees F, 83 gph @ 60 Degrees F, 99 gph @ 50 Degrees F |
| Power Consumption |
12,000 W |
